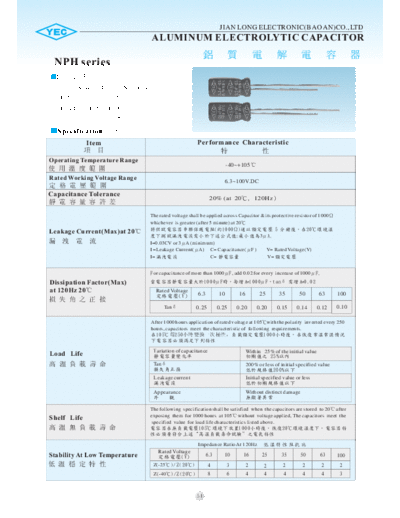

Image preview - the first page of the document
![YEC [non-polar radial] NPH Series](/pics/5c2ba50a85b81.gif)
>> Download YEC [non-polar radial] NPH Series documenatation <<
Text preview - extract from the document
JIAN LONG ELECTRONIC(BAO AN)CO.,LTD
ALUMINUM ELECTROLYTIC CAPACITOR
NPH series
Feature
1. 105 Standard sizeNonpolar
105 .
2. Load life:105 1000 hours
:105 1000
Specification
Item Performance Characteristic
Operating Temperature Range
-40~+105
Rated Working Voltage Range
6.3~100V.DC
Capacitance Tolerance
20% (at 20, 120Hz )
The rated voltage shall be applied across Capacitor & its protective resistor of 1000
whichever is greater (after 5 minute) at 20
( 1000) 5 20
Leakage Current(Max)at 20
: 3A.
I=0.03CV or 3A (minimum)
I =Leakage Current(A) C= Capacitance(F ) V= Rated Voltage(V)
I= C= V=
F or capacitance of more than 1000F , add 0.02 for every increase of 1000F.
Dissipation Factor(Max) 1000F 1000Ftan 0.02
at 120Hz 20 Rated Voltage
(V) 6.3 10 16 25 35 50 63 100
Tan 0.25 0.25 0.20 0.20 0.15 0.14 0.12 0.10
After 1000 hours application of rated voltage at 105with the polarity inverted every 250
hours, capacitors meet the characteristic of following requirements.
105 250 1000
V ariation of capacitance Within 25% of the initial value
Load Life 25%
Tan 200% or less of initial specified value
200%
Leakage current Initial specified value or less
Appearance Without distinct damage
The following specification shall be satisfied when the capacitors are stored to 20 after
exposing them for 1000 hours at 105 without voltage applied, The capacitors meet the
Shelf Life
specified value for load life characteristics listed above.
105 1000 20
" "
Impedance Ratio At 120Hz
Rated Voltage
Stability At Low Temperature (V) 6.3 10 16 25 35 50 63 100
Z(-25)/Z(20) 4 3 2 2 2 2 2 2
Z(-40)/Z(20) 8 6 4 4 4 4 4 3
51
JIAN LONG ELECTRONIC(BAO AN)CO.,LTD
ALUMINUM ELECTROLYTIC CAPACITOR
NPH series
Case sizes and Dimensions Multiplier for ripple current
Frequency Coefficient
Outline Darwing Frequency
Vent(except 5) Sleeve d 0.1 (Hz) 60(50) 120 500 1K 10K
Steel wire(tinned)
+
0.1~47F 0.75 1.00 1.30 1.55 2.00
D+0.5max
Coefficient
100~470F 1.00 1.20 1.30
- F 0.5 0.80 1.50
1000F 0.85 1.00 1.10 1.10 1.15
L+a max 15min 4min
Temperature Coefficient
Lead spacing and wire diameter(unit:mm)
Ambient Temperature
D 5 6.3 8 10 12.5/13 16 105 85 65
()
F 2.0 2.5 3.5 5.0 7.5
d 0.5 0.5 0.6 0.8 Coefficient
1.0 1.7 2.1
1.0(L20) 2.0(L20)
Standard Size( DXLmm) & Rated Ripple Current(mA r.m.s.) at 105 120HZ.
X R.C.= mA r.m.s. )
WV(V.DC) 35 50 63
6.3 10 16 25 100
C a p (F )
SIZE R.C. SIZE R.C. SIZE R.C. SIZE R.C. SIZE R.C. SIZE R.C. SIZE R.C. SIZE R.C.
0.1 5X11 1
0.22 5X11 2
0.33 5X11 4
0.47 5X11 8 5X11 10
1 5X11 10 5X11 15
2.2 5X11 18 6.3X11 20
3.3 5X11 20 6.3X11 25 8X11.5 30
4.7 5X11 20 5X11 25 6.3X11 28 6.3X11 30 8X11.5 35
10 5X11 30 5X11 34 6.3X11 40 8X11.5 50 8X11.5 52 10X12.5 60
22 5X11 40 6.3X11 50 6.3X11 55 8X11.5 65 10X12.5 80 10X16 90 10X20 110
33 5X11 45 6.3X11 55 6.3X11 60 8X11.5 75 10X12.5 85 10X16 100 10X20 120 12.5X20 160
47 6.3X11 60 6.3X11 65 8X11.5 85 10X12.5 90 10X16 100 10X20 140 10X20 150 12.5X25 200
100 8X11.5 100 10X12.5 120 10X12.5 130 10X16 150 10X20 190 12.5X25 260 12.5X25 270 16X25 300
220 10X12.5 160 10X16 200 10X20 270 12.5X20 300 12.5X25 350 16X25 440 16X31.5 480
330 10X16 220 10X20 270 12.5X20 340 12.5X25 400 16X25 480 16X31.5 580
470 10X20 300 12.5X20 360 12.5X25 450 16X25 520 16X25 570
1000 12.5X25 540 16X25 650 16X25 730 16X31.5 860
