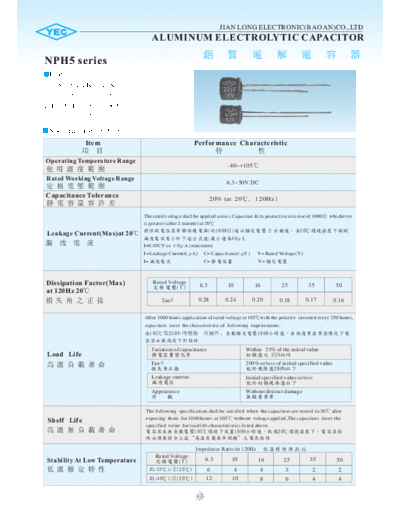

Image preview - the first page of the document
![YEC [non-polar radial] NPH5 Series](/pics/5c2ba52f4ec95.gif)
>> Download YEC [non-polar radial] NPH5 Series documenatation <<
Text preview - extract from the document
JIAN LONG ELECTRONIC(BAO AN)CO.,LTD
ALUMINUM ELECTROLYTIC CAPACITOR
NPH5 series
Feature
1. 105 5mm Height. Nonpolar.
105 5mm .
2. Load life:105 1000 hours
:105 1000
Specification
Item Performance Characteristic
Operating Temperature Range
-40~+105
Rated Working Voltage Range
6.3~50V.DC
Capacitance Tolerance 20% (at 20, 120Hz )
The rated voltage shall be applied across Capacitor & its protective resistor of 1000 whichever
is greater (after 2 minute) at 20
( 1 0 0 0) 2 2 0
Leakage Current(Max)at 20
: 10A .
I=0.05CV or 1 0A (minimum)
I =Leakage Current(A) C= Capacitance(F ) V= Rated Voltage(V)
I= C= V=
Dissipation Factor(Max) Rated Voltage
6.3 10 16 25 35 50
(V)
at 120Hz 20
Tan 0.28 0.24 0.20 0.18 0.17 0.16
After 1000 hours application of rated voltage at 105with the polarity inverted every 250 hours,
capacitors meet the characteristic of following requirements.
105 250 1000
Variation of capacitance Within 25% of the initial value
Load Life 25%
Tan 200% or less of initial specified value
200%
Leakage current Initial specified value or less
Appearance Without distinct damage
The following specification shall be satisfied when the capacitors are stored to 20 after
exposing them for 1000 hours at 105 without voltage applied,The capacitors meet the
Shelf Life
specified value for load life characteristics listed above.
1 0 5 1000 2 0
" "
Impedance Ratio At 120Hz
Rated Voltage
Stability At Low Temperature (V) 6.3 10 16 25 35 50
Z(-25)/Z(20) 6 4 4 3 2 2
Z(-40)/Z(20) 12 10 8 6 4 4
47
JIAN LONG ELECTRONIC(BAO AN)CO.,LTD
ALUMINUM ELECTROLYTIC CAPACITOR
NPH5 series
Case sizes and Dimensions Multiplier for ripple current
Frequency Coefficient
Outline Darwing
Sleeve d 0.1 Frequency
60(50) 120 500 1K 10K
Steel wire(tinned) (Hz)
+
D+0.5max
Coefficient
-
F 0.5 1.50
0.80 1.00 1.20 1.30
L+1 max 15min 4min
Temperature Coefficient
Lead spacing and wire diameter(unit:mm)
Ambient Temperature 105 85 65
D 4 5 6.3 ()
F 1.5 2.0 2.5 Coefficient
1.0 1.7 2.1
d 0.45
S tandard Size( DXLmm) & Rated Ripple Current(mA r.m.s.) at 105 120HZ
X R. C. = mA r.m.s. )
WV(V.DC)
6.3 10 16 25 35 50
C a p (F )
SIZE R.C. SIZE R.C. SIZE R.C. SIZE R.C. SIZE R.C. SIZE R.C.
0.1 4X5 1
0.22 4X5 2
0.33 4X5 2
0.47 4X5 3
0.68 4X5 4
1 4X5 5
2.2 4X5 8 5X5 10
3.3 5X5 10 5X5 11 5X5 15
4.7 4X5 10 5X5 12 5X5 14 6.3X5 18
6.8 5X5 12 6.3X5 15 6.3X5 18
10 4X5 10 5X5 15 5X5 18 6.3X5 20 6.3X5 22
22 5X5 15 6.3X5 20 6.3X5 22
15 5X5 20 6.3X5 25 6.3X5 30
33 6.3X5 30 6.3X5 35 6.3X5 40
47 6.3X5 35
