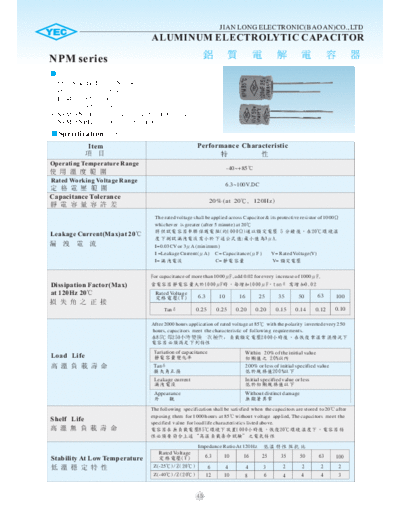

JIAN LONG ELECTRONIC(BAO AN)CO.,LTD
C
ALUMINUM ELECTROLYTIC CAPACITOR
NPM series
Feature
1. 85 Standard sizeNonpolar
85 .
2. Load life:85 2000 hours
:85 2000
3. NPMNPH ( high reliability 105 1000 hours)
NPMNPH ( 105 1000 )
Specification
Item Performance Characteristic
Operating Temperature Range
-40~+85
Rated Working Voltage Range
6.3~100V.DC
Capacitance Tolerance
20% (at 20, 120Hz )
The rated voltage shall be applied across Capacitor & its protective resistor of 1000
whichever is greater (after 5 minute) at 20
( 1 0 0 0) 5 2 0
Leakage Current(Max)at 20
: 3A .
I=0.03CV or 3A (minimum)
I =Leakage Current(A) C= Capacitance(F ) V= Rated Voltage(V)
I= C= V=
F or capacitance of more than 1000F , add 0.02 for every increase of 1000F .
Dissipation Factor(Max) 1 0 00F 1 0 00Ft a n 0.02
at 120Hz 20 Rated Voltage
6.3 10 16 25 35 50 63 100
(V)
Tan 0.25 0.25 0.20 0.20 0.15 0.14 0.12 0.10
After 2000 hours application of rated voltage at 85 with the polarity inverted every 250
hours, capacitors meet the characteristic of following requirements.
8 5 2 5 0 2000
Variation of capacitance Within 20% of the initial value
Load Life 20%
Tan 200% or less of initial specified value
200%
Leakage current Initial specified value or less
Appearance Without distinct damage
The following specification shall be satisfied when the capacitors are stored to 20 after
exposing them for 1000 hours at 85 without voltage applied, The capacitors meet the
Shelf Life
specified value for load life characteristics listed above.
8 5 1000 2 0
" "
Impedance Ratio At 120Hz
Rated Voltage
Stability At Low Temperature (V) 6.3 10 16 25 35 50 63 100
Z(-25)/Z(20) 6 4 4 3 2 2 2 2
Z(-40)/Z(20) 12 10 8 6 4 4 4 3
45
JIAN LONG ELECTRONIC(BAO AN)CO.,LTD
ALUMINUM ELECTROLYTIC CAPACITOR
NPM series
Case sizes and Dimensions Multiplier for ripple current
Frequency Coefficient
Outline Darwing Frequency
d 0.1 60(50) 120 500 1K 10K
Vent(except 5) Sleeve
Steel wire(tinned) (Hz)
+ 0.1~47F 0.75 1.00 1.30 1.55 2.00
D+0.5max
Coefficient
100~470F
- F 0.5
0.80 1.00 1.20 1.30 1.50
1000~6800F 0.85 1.00 1.10 1.10 1.15
L+a max 15min 4min
Temperature Coefficient
Lead spacing and wire diameter(unit:mm)
Ambient Temperature
D 5 6.3 8 10 12.5/13 16 18 85 70 50
()
F 2.0 2.5 3.5 5.0 7.5
d 0.5 0.5 0.6 0.8
Coefficient
1.0 1.6 2.0
1.0(L20) 2.0(L20)
Standard Size( DXLmm) & Rated Ripple Current(mA r.m.s.) at 85 120HZ.
X R.C.= mA r.m.s. )
WV(V.DC)
6.3 10 16 25 35 50 63 100
C a p (F )
SIZE R.C. SIZE R.C. SIZE R.C. SIZE R.C. SIZE R.C. SIZE R.C. SIZE R.C. SIZE R.C.
0.1 5X11 1
0.22 5X11 2
0.33 5X11 4
0.47 5X11 10 5X11 12
1 5X11 15 5X11 20
2.2 5X11 20 6.3X11 30
3.3 5X11 25 5X11 25 6.3X11 35
4.7 5X11 30 5X11 30 6.3X11 30 6.3X11 45
10 5X11 40 5X11 40 5X11 42 6.3X11 50 6.3X11 55 8X11.5 65
22 5X11 55 5X11 55 6.3X11 60 6.3X11 70 8X11.5 85 8X11.5 90 10X16 130
33 5X11 60 5X11 60 5X11 65 6.3X11 75 8X11.5 90 8X11.5 100 10X12.5 130 12.5X20 200
47 5X11 75 5X11 75 6.3X11 90 6.3X11 90 8X11.5 110 10X12.5 140 10X16 170 12.5X20 230
100 6.3X11 120 6.3X11 120 8X11.5 150 8X11.5 150 10 X1 6
10X16 210 10X20
210 260 12.5X20 310 16X25 400
220 8X11.5 210 8X11.5 210 10X12.5 270 10X16 300 12.5X20 400 12.5X25 460 16X25 560 18X35.5 700
330 8X11.5 260 10X16 340 10X16 370 12.5X20 440 12.5X20 500 16X25 640 16X31.5 650
470 10X12.5 360 10X16 400 10X20 460 12.5X20 520 12.5X25 650 16X31.5 830 18X35.5 960
1000 10X20 640 12.5X20 710 12.5X25 850 16X25 930 16X31.5 1120
2200 12.5X25 1150 16X25 1260 16X31.5 1500 18X35.5 1600
3300 16X25 1550 16X31.5 1680 18X35.5 1950
4700 16X31.5 2000 18X35.5 2150
6800 18X35.5 2600
46
