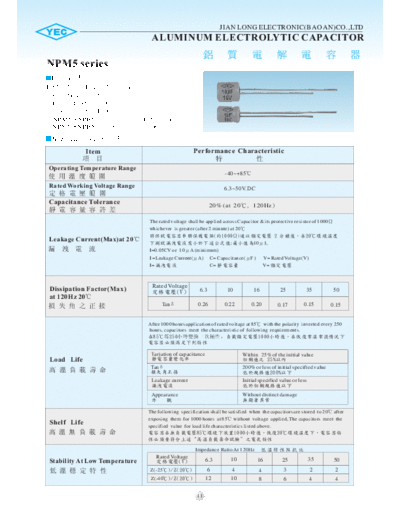

Image preview - the first page of the document
![YEC [non-polar radial] NPM5 Series](/pics/5c2ba59ee0c7d.gif)
>> Download YEC [non-polar radial] NPM5 Series documenatation <<
Text preview - extract from the document
JIAN LONG ELECTRONIC(BAO AN)CO.,LTD
ALUMINUM ELECTROLYTIC CAPACITOR
NPM5 series
Feature
1. 85 5mm Height. Nonpolar.
85 5mm .
2. Load life:85 1000 hours
:85 1000
3. NPM5NPH5 ( high reliability 105 1 000 hours)
NPM5NPH5 ( 105 1 000 )
Specification
Item Performance Characteristic
Operating Temperature Range
-40~+85
Rated Working Voltage Range 6.3~50V.DC
Capacitance Tolerance
20% (at 20, 120Hz )
The rated voltage shall be applied across Capacitor & its protective resistor of 1000
whichever is greater (after 2 minute) at 20
( 1000) 2 20
Leakage Current(Max)at 20 : 10A.
I=0.05CV or 1 0A (minimum)
I =Leakage Current(A) C= Capacitance(F ) V= Rated Voltage(V)
I= C= V=
Rated Voltage
Dissipation Factor(Max) (V) 6.3 10 16 25 35 50
at 120Hz 20
Tan 0.26 0.22 0.20 0.17 0.15 0.15
After 1000 hours application of rated voltage at 85 with the polarity inverted every 250
hours, capacitors meet the characteristic of following requirements.
8 5 2 5 0 1000
Variation of capacitance Within 25% of the initial value
Load Life 25%
Tan 200% or less of initial specified value
200%
Leakage current Initial specified value or less
Appearance Without distinct damage
The following specification shall be satisfied when the capacitors are stored to 20 after
exposing them for 1000 hours at 85 without voltage applied, The capacitors meet the
Shelf Life specified value for load life characteristics listed above.
85 1000 20
" "
Impedance Ratio At 120Hz
Rated Voltage
Stability At Low Temperature (V) 6.3 10 16 25 35 50
Z(-25)/Z(20) 6 4 4 3 2 2
Z(-40)/Z(20) 12 10 8 6 4 4
41
JIAN LONG ELECTRONIC(BAO AN)CO.,LTD
ALUMINUM ELECTROLYTIC CAPACITOR
NPM5 series
Case sizes and Dimensions Multiplier for ripple current
Frequency Coefficient
Outline Darwing
Sleeve d 0.1 Frequency
60(50) 120 500 1K 10K
Steel wire(tinned) (Hz)
+
D+0.5max
Coefficient
-
F 0.5
0.80 1.00 1.20 1.30 1.50
L+1 max 15min 4min
Temperature Coefficient
Lead spacing and wire diameter(unit:mm) Ambient Temperature
85 70 50
D 4 5
()
6.3
F 1.5 2.0 2.5 Coefficient
1.0 1.6 2.0
d 0.45
S tandard Size( DXLmm) & Rated Ripple Current(mA r.m.s.) at 85 120HZ
X R.C.= mA r.m.s. )
WV(V.DC)
6.3 10 16 25 35 50
C a p (F )
SIZE R.C. SIZE R.C. SIZE R.C. SIZE R.C. SIZE R.C. SIZE R.C.
0.1 4X5 1
0.22 4X5 2
0.33 4X5 2
0.47 4X5 3
0.68 4X5 4
1 4X5 5
2.2 4X5 8 5X5 10
3.3 5X5 10 5X5 11 5X5 15
4.7 4X5 12 5X5 13 5X5 14 6.3X5 20
6.8 5X5 15 6.3X5 17 6.3X5 19
10 4X5 14 5X5 17 5X5 20 6.3X5 21 6.3X5 24
22 5X5 20 6.3X5 23 6.3X5 25
15 5X5 25 6.3X5 30 6.3X5 32
33 6.3X5 35 6.3X5 37 6.3X5 45
47 6.3X5 40
42
