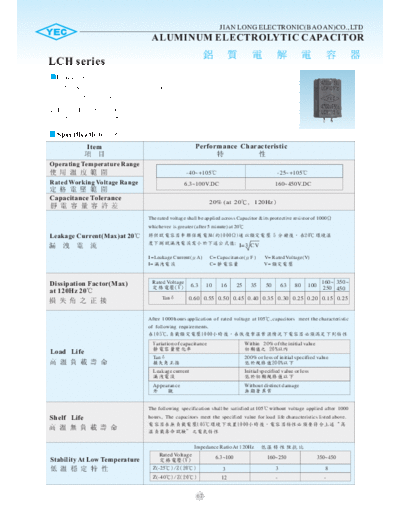

Image preview - the first page of the document
![YEC [snap-in] LCH Series](/pics/5c2ba5c1f4118.gif)
>> Download YEC [snap-in] LCH Series documenatation <<
Text preview - extract from the document
JIAN LONG ELECTRONIC(BAO AN)CO.,LTD
ALUMINUM ELECTROLYTIC CAPACITOR
LCH series
Feature
1. 105 Standard snap-in terminal type.
105 .
2. Load life:105 1000 hours
:105 1000
Specification
Item Performance Characteristic
Operating Temperature Range
-40~+105 -25~+105
Rated Working Voltage Range 6.3~100V.DC 160~450V.DC
Capacitance Tolerance
20% (at 20, 120Hz )
The rated voltage shall be applied across Capacitor & its protective resistor of 1000
whichever is greater (after 5 minute) at 20
Leakage Current(Max)at 20 ( 1 0 0 0) 5 2 0
:
I=3 CV
I =Leakage Current(A) C= Capacitance(F ) V= Rated Voltage(V)
I= C= V=
Dissipation Factor(Max) Rated Voltage
(V) 6.3 10 16 25 35 50 63 80 100
160~ 350~
250 450
at 120Hz 20
Tan 0.60 0.55 0.50 0.45 0.40 0.35 0.30 0.25 0.20 0.15 0.25
After 1000 hours application of rated voltage at 105, capacitors meet the characteristic
of following requirements.
105, 1000
Variation of capacitance Within 20% of the initial value
20%
Load Life
Tan 200% or less of initial specified value
200%
Leakage current Initial specified value or less
Appearance Without distinct damage
The following specification shall be satisfied at 105 without voltage applied after 1000
Shelf Life hours , The capacitors meet the specified value for load life characteristics listed above.
105 1000 "
"
Impedance Ratio At 120Hz
Rated Voltage
Stability At Low Temperature (V) 6.3~100 160~250 350~450
Z(-25)/Z(20) 3 3 8
Z(-40)/Z(20) 12 - -
67
JIAN LONG ELECTRONIC(BAO AN)CO.,LTD
ALUMINUM ELECTROLYTIC CAPACITOR
LCH series
Case sizes and Dimensions
Standard terminal type MOUNTING HOLES (unit:mm)
SLEEVE 2- 2
NEGATIVE
VENT 10 Terminal
10 0.1
0.9
2.7 0.3
1.5 0.1
6.0 1
L 2 6 1 D 1 D 1
Top of spin
Multiplier for ripple current
Frequency Coefficient Temperature Coefficient
Frequency Ambient Temperature
(Hz) 60(50) 120 500 1K 10K 105 85 65
()
6.3~100W.V 0.90 1.00 1.05 1.10 1.15 Coefficient
1.0 1.7 2.1
Coefficient
160~250W.V 0.80 1.00 1.10 1.14 1.18
350~450W.V 0.80 1.00 1.05 1.10 1.15
Standard Size( DXLmm) & Rated Ripple Current(A r.m.s.) at 105 120HZ.
X R.C.= A r.m.s. )
WV(V.DC)
6.3 10 16 25 35
C a p ( F )
SIZE R.C. SIZE R.C. SIZE R.C. SIZE R.C. SIZE R.C.
22X25 1.04 22X25 1.40
3300 25X25 1.10 25X25 1.48
22X25 1.00 22X30 1.50 22X30 1.80
4700 25X25 1.36 25X25 30X25 1.85
1.32
22X25 1.57 22X35 1.86 22X40 2.20
6800 30X30 2.07
25X25 1.67 30X25 1.71
22X25 1.52 22X30 1.80 22X40 2.16 25X45 2.62
8200 25X25 1.60 30X30 35X30 2.80
30X25 1.85 2.02
22X25 1.34 22X30 1.66 22X35 1.97 22X45 2.42 25X45 2.87
10000 30X30
25X25 1.46 25X25 1.54 30X25 1.84 2.12 35X30 2.98
22X25 1.54 22X30 1.77 22X40 2.45 22X50 2.74 25X50 3.24
12000 30X25 30X30 2.30 35X35 3.43
25X25 1.60 1.80 35X30 2.75
22X30 1.85 22X35 2.18 22X45 2.60 25X45 3.15 30X45 3.72
15000 30X25 2.01 35X30 3.27
30X25 2.01 35X25 2.55 35X40 4.11
22X35 2.23 22X45 2.98 25X45 3.32 30X50 4.04
22000 35X30 3.43
35X45 4.67
30X25 2.28 30X30 2.64 35X40 4.28
22X45 2.88 25X45 3.45 30X45 4.30
33000 30X30 2.89 35X30 3.35
35X50 5.39 35X70 7.40
35X40 4.85
25X50 3.69 30X45 4.17
47000 3.69
35X45 5.43 35X60 7.43
30X40 35X45 4.74
30X50 4.71
68000 35X50 5.46 35X60 8.21
35X40 4.69
