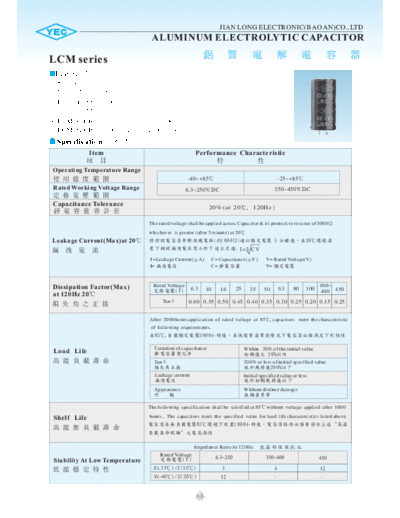

Image preview - the first page of the document
![YEC [snap-in] LCM Series](/pics/5c2ba5cf8b16f.gif)
>> Download YEC [snap-in] LCM Series documenatation <<
Text preview - extract from the document
JIAN LONG ELECTRONIC(BAO AN)CO.,LTD
ALUMINUM ELECTROLYTIC CAPACITOR
LCM series
Feature
1. 85 Standard snap-in terminal type.
85 .
2. Load life:85 2000 hours
:85 2000
3. LCMLCH ( high reliability 105 1000 hours)
LCMLCH ( 105 1000 )
Specification
Item Performance Characteristic
Operating Temperature Range
-40~+85 -25~+85
Rated Working Voltage Range 6.3~250V.DC 350~450V.DC
Capacitance Tolerance
20% (at 20, 120Hz )
The rated voltage shall be applied across Capacitor & its protective resistor of 1000
whichever is greater (after 5 minute) at 20
Leakage Current(Max)at 20 ( 1000) 5 20
: I=3 CV
I =Leakage Current(A) C= Capacitance(F ) V= Rated Voltage(V)
I= C= V=
Dissipation Factor(Max) Rated Voltage
6.3 25 50 63 80 100
160~
(V) 10 16 35 400 450
at 120Hz 20
Tan 0.60 0.55 0.50 0.45 0.40 0.35 0.30 0.25 0.20 0.15 0.25
After 2000 hours application of rated voltage at 85, capacitors meet the characteristic
of following requirements.
85, 2000
Variation of capacitance
Load Life Within 20% of the initial value
20%
Tan 200% or less of initial specified value
200%
Leakage current Initial specified value or less
Appearance Without distinct damage
The following specification shall be satisfied at 85 without voltage applied after 1000
Shelf Life hours , The capacitors meet the specified value for load life characteristics listed above.
85 1000 "
"
Impedance Ratio At 120Hz
Rated Voltage
6.3~250 350~400 450
Stability At Low Temperature (V)
Z(-25) /Z(20) 3 4 12
Z(-40)/Z(20) 12 - -
63
JIAN LONG ELECTRONIC(BAO AN)CO.,LTD
ALUMINUM ELECTROLYTIC CAPACITOR
LCM series
Case sizes and Dimensions
Standard terminal type MOUNTING HOLES (unit:mm)
SLEEVE 2- 2
NEGATIVE
VENT 10 Terminal
10 0.1
0.9
2.7 0.3
1.5 0.1
6.0 1
L 2 6 1 D 1 D 1
Top of spin
Multiplier for ripple current
Frequency Coefficient Temperature Coefficient
Frequency
60(50) 120 500 1K 10K Ambient Temperature
(Hz) () 85 65
6.3~100W.V 0.90 1.00 1.05 1.10 1.15 Coefficient
Coefficient 1.0 1.3
160~250W.V 0.80 1.00 1.20 1.30 1.50
350~450W.V 0.80 1.00 1.05 1.10 1.15
S tandard Size( DXLmm) & Rated Ripple Current(A r.m.s.) at 85 120HZ.
X R.C.= A r.m.s. )
WV(V.DC)
6.3 10 16 25 35
C a p (F )
SIZE R.C. SIZE R.C. SIZE R.C. SIZE R.C. SIZE R.C.
22X25 2.03 22X25 2.04
3300 25X25 2.09 25X25 2.10
22X25 1.81 22X30 2.49 22X30 2.41
4700 25X25 2.21 25X25 30X25 2.44
2.31
22X25 2.40 22X35 2.87 22X40 2.98
6800 30X30 2.86
25X25 2.47 30X25 2.72
22X25 2.39 22X30 2.70 22X40 3.16 25X45 3.25
8200 25X25 2.46 30X30 35X30 3.42
30X25 2.73 3.03
22X25 1.98 22X30 2.69 22X35 3.00 22X45 3.45 25X45 3.41
10000 30X30
25X25 2.10 25X25 2.57 30X25 2.84 3.14 35X30 3.51
22X25 2.02 22X30 2.81 22X40 3.30 22X50 3.74 25X50 3.68
12000 30X25 2.84 30X30 3.16 35X35 3.84
25X25 2.14 35X30 3.75
22X30 2.44 22X35 3.14 22X45 3.62 25X45 3.78 30X45 4.08
15000 30X25 2.97 35X30 3.89
30X25 2.60 35X25 3.55 35X40 4.47
22X35 3.06 22X45 3.79 25X45 4.25 30X50 4.94
22000 30X30 3.45 35X30 4.37
35X45 5.68
30X25 3.16 35X40 5.17
22X45 3.97 25X45 4.99 30X45 5.48
33000 30X30 4.00 35X30 4.89
35X50 6.95 35X70 8.42
35X40 6.01
25X50 5.09 30X45 5.97
47000 35X45 7.53 35X60 8.97
30X40 5.06 35X45 6.54
30X50 6.48
68000 35X50 8.64 35X60 10.20
35X40 6.43
64
JIAN LONG ELECTRONIC(BAO AN)CO.,LTD
ALUMINUM ELECTROLYTIC CAPACITOR
LCM series
S tandard Size( DXLmm) & Rated Ripple Current(A r.m.s.) at 85 120HZ.
X R.C.= A r.m.s. )
WV(V.DC)
50 63 80 100
C a p (F )
SIZE R.C. SIZE R.C. SIZE R.C. SIZE R.C.
22X30 1.55
820
25X25 1.54
22X25 1.42 22X30 1.71
1000 20X25 1.56
25X25 1.46 30X25 2.20
20X40 2.12
22X25 1.58 20X30 1.80
1200 22X30 2.12
30X25 1.63 22X25 1.77
25X25 2.10
22X25 1.74 20X35 2.10 22X40 2.38
1500
30X25 1.81 22X30 2.01 35X30 2.54
22X25 22X40 2.53
1.92 22X30 2.08 22X45 2.54
2200 25X30 2.53
25X25 1.98 30X25 2.10 35X30 2.77
30X25 2.50
22X50 3.25
22X35 2.51 22X45 2.81 30X45 3.27
3300 25X40 3.25
30X25 2.38 35X25 2.76 35X35 3.39
30X30 3.23
22X40 25X45 25X50 4.28
2.89 3.11
4700 30X40 4.15 35X45 4.01
35X35 2.99 35X35 3.20
35X35 4.10
25X45 3.37 30X45 3.54 30X50 5.18
6800 35X60 4.85
35X35 3.46 35X35 3.68 35X40 5.14
25X50 3.62 30X50 3.81
8200 35X45 5.83 35X70 5.30
35X35 3.79 35X40 3.99
30X45 3.72
10000 35X50 4.48 40X70 5.63
35X35 3.86
12000 35X45 4.53 35X60 5.13
15000 35X50 5.30
65
JIAN LONG ELECTRONIC(BAO AN)CO.,LTD
ALUMINUM ELECTROLYTIC CAPACITOR
LCM series
S tandard Size( DXLmm) & Rated Ripple Current(A r.m.s.) at 85 120HZ.
X R.C.= A r.m.s. )
WV(V.DC)
160 200 250 350 400 450
C a p (F ) SIZE R.C. SIZE R.C. SIZE R.C. SIZE R.C. SIZE R.C. SIZE R.C.
22X25 0.43 22X25 0.36
47
25X25 0.45 25X25 0.37
22X30 0.66 22X30 0.68 22X35 0.61
100
25X25 0.63 25X25 0.65 25X30 0.59
22X35 0.86 22X40 0.95 22X50 0.88
150
30X25 0.82 30X25 0.85 30X30 0.76
22X25 0.97 22X30 1.14 22X45 1.17 22X50 1.27 25X50 1.06
220
25X25 1.00 25X25 1.09 30X30 1.06 30X35 1.65 35X35 1.13
22X25 1.11 22X30 1.29 22X40 1.50 22X50 1.53 30X45 1.59
330 35X45 1.53
25X25 1.14 25X25 1.23 30X25 1.42 35X35 1.60 35X35 1.65
22X35 1.53 22X40 1.74 22X50 2.09 30X50 1.92
470 35X45 2.19
30X25 1.45 30X25 1.55 30X35 1.93 35X40 2.01
22X35 1.67 22X45 2.00 25X45 2.29
560 35X45 2.31
30X25 1.58 30X30 1.82 35X30 2.22
22X40 1.95 25X40 2.14 30X40 2.46
680
30X30 1.87 30X35 2.14 35X35 2.60
22X50 2.36 25X50 2.59 30X45 2.83
820
30X30 2.05 35X30 2.55 35X40 3.11
25X45 2.55 30X45 2.87
1000 35X45 3.60
35X30 2.62 35X35 2.99
1500 30X45 3.28 35X50 4.24
66
