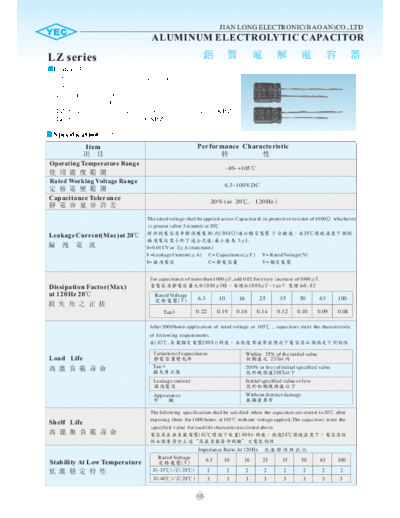

Image preview - the first page of the document
![YEC [radial thru-hole] LZ Series](/pics/5c2ba5d70b28c.gif)
>> Download YEC [radial thru-hole] LZ Series documenatation <<
Text preview - extract from the document
JIAN LONG ELECTRONIC(BAO AN)CO.,LTD
ALUMINUM ELECTROLYTIC CAPACITOR
LZ series
Feature
1. 105 high ripple current, low impedance.
105 , .
2. Load life:105 2000 hours
:105 2000
3. LZhigher ripple current and lower impedance at 100KHZ
LZ (100KHZ)
Specification
Item Performance Characteristic
Operating Temperature Range
-40~+105
Rated Working Voltage Range
6.3~100V.DC
Capacitance Tolerance
20% (at 20, 120Hz )
The rated voltage shall be applied across Capacitor & its protective resistor
The rated voltage shall be applied across Capacitor & its protective resistor of 1000 whichever
of 1000 whichever is greater (after 2 minute) at 20
is greater (after 2 minute) at 20
( 1000) 1000)
( 2 20 2
Leakage Current(Max)at 20
20 : 3A. : 3A .
I=0.01CV or 3A (minimum)
I I=0.01CV or 3A (minimum)
=Leakage Current(A) C= Capacitance(F ) V= Rated Voltage(V)
I= =Leakage Current(A)
I C= C= Capacitance(F )
V= V= Rated Voltage(V)
F or capacitance of more than 1000F , add 0.02 for every increase of 1000F .
Dissipation Factor(Max) 1 0 0 0F 1 0 0 0Ft a n 0.02
at 120Hz 20 Rated Voltage
(V) 6.3 10 16 25 35 50 63 100
Tan 0.22 0.19 0.16 0.14 0.12 0.10 0.09 0.08
After 2000 hours application of rated voltage at 105 , capacitors meet the characteristic
of following requirements.
105, 2000
Variation of capacitance Within 25% of the initial value
Load Life 25%
Tan 200% or less of initial specified value
200%
Leakage current Initial specified value or less
Appearance Without distinct damage
The following specification shall be satisfied when the capacitors are stored to 20 after
exposing them for 1000 hours at 105 without voltage applied, The capacitors meet the
Shelf Life
specified value for load life characteristics listed above.
1 0 5 1000 2 0
" "
Impedance Ratio At 120Hz
Rated Voltage
6.3 10
10 35 63
Stability At Low Temperature (V) 16 25 50 100
Z(-25)/Z(20) 2 2 2 2 2 2 2 2
Z(-40)/Z(20) 3 3 3 3 3 3 3 3
60
JIAN LONG ELECTRONIC(BAO AN)CO.,LTD
ALUMINUM ELECTROLYTIC CAPACITOR
LZ series
Case sizes and Dimensions Multiplier for ripple current
Frequency Coefficient
Outline Darwing 6.3~50WV
Vent(except 5) Sleeve d 0.1
Steel wire(tinned) Frequency
(Hz) 60(50) 120 1K 10K 100K
+
D+0.5max
6.8~33F 0.55 0.75 0.90
-
0.45
F 0.5
1.00
Coefficient 39~330F 0.60 0.70 0.85 0.95 1.00
390~1000F 0.65 0.75 0.90 0.98 1.00
L+a max 15min 4min
1200~6800F 0.75 0.80 0.95 1.00 1.00
Lead spacing and wire diameter(unit:mm)
D 5 6.3 8 10 12.5/13 16 18
F 2.0 2.5 3.5 5.0 7.5
d
63~100WV
0.5 0.5 0.6 0.8
1.0(L20) 2.0(L20) Frequency
(Hz) 60(50) 120 1K 10K 100K
Temperature Coefficient 6.8~33F 0.45 0.55 0.75 0.90 1.00
Ambient Temperature Coefficient
()
105 85 65 39~330F 0.50 0.60 0.80 0.95 1.00
Coefficient 390~1500F 0.55 0.65 0.85 0.98 1.00
1.0 1.7 2.1
Standard Size( DXLmm) & Rated Ripple Current(mA r.m.s.) at 105 100KHZ,
Impedance Z(m)at 20 100KHZ
X R . C . = mA r.m.s. ) Z = m
WV(V.DC)
6.3V 10V 16V 25V
C a p (F )
SIZE R.C. Z SIZE R.C. Z SIZE R.C. Z SIZE R.C. Z
47 5X11 250 300
56 5X11 250 300 6.3X11 330 220
100 5X11 250 300 6.3X11 330 220 6.3X11 400 130
120 5X11 270 270 6.3X11 400 130 6.3X11 470 110
150 5X11 250 300 6.3X11 330 220 6.3X11 470 110 8X11.5 580 100
220 6.3X11 330 220 6.3X11 400 130 8X11.5 580 100 8X11.5 760 72
330 6.3X11 400 130 8X11.5 580 100 8X11.5 760 72 8X16 990 56
470 8X11.5 580 100 8X11.5 760 72 8X16 990 56 10X16 1430 38
560 8X11.5 760 72 8X11.5 860 66 10X16 1200 47 10X20 1550 30
680 8X11.5 860 66 8X16 990 56 10X16 1430 38 10X20 1820 23
820 8X16 995 56 10X16 1200 47 10X20 1550 30 10X25 2150 22
1000 10X12.5 1030 53 10X16 1430 38 10X20 1820 23 12.5X20 2360 21
1200 10X16 1430 38 10X20 1820 23 10X25 2150 22 12.5X25 2500 20
1500 10X20 1820 23 10X25 2150 22 12.5X20 2360 21 12.5X25 2770 18
1800 10X20 1820 23 10X25 2150 22 12.5X25 2500 20 12.5X30 3290 16
2200 10X25 2150 22 12.5X20 2360 21 12.5X25 2700 18 12.5X35 3400 15
2700 10X25 2150 22 12.5X25 2500 20 12.5X30 3290 16 16X25 3460 16
3300 12.5X20 2360 21 12.5X25 2770 18 12.5X35 3400 15
61
JIAN LONG ELECTRONIC(BAO AN)CO.,LTD
ALUMINUM ELECTROLYTIC CAPACITOR
LZ series
Standard Size( DXLmm) & Rated Ripple Current(mA r.m.s.) at 105 100KHZ,
Impedance Z(m)at 20 100KHZ
X R.C.= mA r.m.s. ) Z= m
WV(V.DC)
6.3V 10V 16V 25V
C a p (F )
SIZE R.C. Z SIZE R.C. Z SIZE R.C. Z SIZE R.C. Z
3900 12.5X25 2770 18 12.5X30 3290 16 16X25 3460 16
4700 12.5X30 3290 16 12.5X35 3400 15
5600 12.5X35 3400 15 16X25 3460 16
6800 16X25 3460 16
Standard Size( DXLmm) & Rated Ripple Current(mA r.m.s.) at 105 100KHZ,
Impedance Z(m)at 20 100KHZ
X R.C.= mA r.m.s. ) Z= m
WV(V.DC)
35V 50V 63V 100V
C a p (F )
SIZE R.C. Z SIZE R.C. Z SIZE R.C. Z SIZE R.C. Z
6.8 5X11 120 1440
10 5X11 120 1440 6.3X11 170 800
15 5X11 160 880 6.3X11 200 570
22 5X11 230 340 6.3X11 220 500 6.3X11 230 470
27 5X11 230 340 6.3X11 250 300 6.3X11 240 430 8X11.5 350 360
33 5X11 250 300 6.3X11 270 270 6.3X11 260 350 8X11.5 370 310
39 6.3X11 270 270 6.3X11 280 250 6.3X11 290 300 8X16 450 250
47 6.3X11 310 220 6.3X11 300 220 8X11.5 400 260 10X12.5 450 240
56 6.3X11 400 130 6.3X11 350 160 8X11.5 500 220 8X20 560 190
68 6.3X11 420 120 8X11.5 470 150 8X16 520 190 10X16 580 180
82 6.3X11 470 110 8X11.5 530 120 8X16 660 160 10X20 750 130
100 8X11.5 580 100 8X11.5 700 74 10X12.5 680 150 10X25 880 120
120 8X11.5 630 85 8X16 950 61 8X20 820 120 12.5X20 1040 94
150 8X11.5 760 72 10X12.5 970 61 10X20 920 100 12.5X25 1110 83
180 8X11.5 860 64 8X20 1190 46 10X20 1100 80 12.5X25 1190 71
220 8X16 990 56 10X16 1370 42 10X25 1300 73 12.5X30 1410 63
270 8X20 1250 41 10X20 1580 30 12.5X20 1490 60 16X25 1600 53
330 10X16 1430 38 10X25 1870 28 12.5X25 1850 43 16X31.5 1670 47
390 10X20 1550 30 10X25 1870 28 12.5X30 2050 41 16X31.5 1750 41
470 10X20 1820 23 12.5X20 2050 27 12.5X30 2250 39 18X31.5 1770 39
560 10X25 2150 22 12.5X25 2410 23 12.5X35 2450 33 18X35.5 2060 31
680 12.5X20 2360 21 12.5X30 2860 21 16X25 2550 32 18X41 2570 28
820 12.5X25 2500 20 12.5X35 2960 19 16X31.5 2810 26
1000 12.5X25 2770 18 16X25 3010 21 16X35.5 2830 21
1200 12.5X30 3290 16 18X35.5 3310 20
1500 12.5X35 3400 15 18X41 3420 18
1800 16X25 3460 16
62
