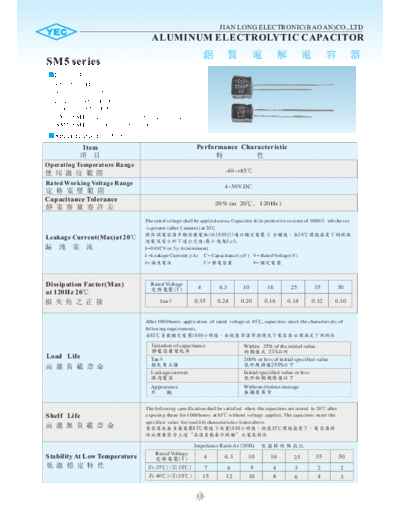

Image preview - the first page of the document
![YEC [radial thru-hole] SM5 Series](/pics/5c2ba60935653.gif)
>> Download YEC [radial thru-hole] SM5 Series documenatation <<
Text preview - extract from the document
JIAN LONG ELECTRONIC(BAO AN)CO.,LTD
ALUMINUM ELECTROLYTIC CAPACITOR
SM5 series
Feature
1. 85 5mm Height
85 5mm
2. Load life:85 1000 hours
:85 1000
3. SM5SH5 (high reliability 105 1000 hours)
SM5SH5( 105 1000 )
Specification
Item Performance Characteristic
Operating Temperature Range
-40~+85
Rated Working Voltage Range
4~50V.DC
Capacitance Tolerance
20% (at 20, 120Hz )
The rated voltage shall be applied across Capacitor & its protective resistor of 1000 whichever
is greater (after 2 minute) at 20
( 1 0 0 0) 2 2 0
Leakage Current(Max)at 20
: 3A .
I=0.01CV or 3A (minimum)
I =Leakage Current(A) C= Capacitance(F ) V= Rated Voltage(V)
I= C= V=
Dissipation Factor(Max) Rated Voltage
4 6.3 10 16 25 35 50
(V)
at 120Hz 20
Tan 0.35 0.24 0.20 0.16 0.14 0.12 0.10
After 1000 hours application of rated voltage at 85, capacitors meet the characteristic of
following requirements.
8 5 1000
V ariation of capacitance Within 25% of the initial value
25%
Load Life Tan 200% or less of initial specified value
200%
Leakage current Initial specified value or less
Appearance Without distinct damage
The following specification shall be satisfied when the capacitors are stored to 20 after
Shelf Life exposing them for 1000 hours at 85 without voltage applied, The capacitors meet the
specified value for load life characteristics listed above.
85 1000 20
" "
Impedance Ratio At 120Hz
Rated Voltage
Stability At Low Temperature (V) 4 6.3 10 16 25 35 50
Z(-25)/Z(20) 7 6 4 4 3 2 2
Z(-40)/Z(20) 15 12 10 8 6 4 3
13
JIAN LONG ELECTRONIC(BAO AN)CO.,LTD
ALUMINUM ELECTROLYTIC CAPACITOR
SM5 series
Case sizes and Dimensions Multiplier for ripple current
Frequency Coefficient
Outline Darwing Frequency
Sleeve d 0.1 (Hz) 60(50) 120 500 1K 10K
Steel wire(tinned)
+ 0.1~47F 0.80 1.00 1.20 1.30 1.50
D+0.5max
Coefficient
- F 0.5
68~470F 0.80 1.00 1.10 1.15 1.20
L+1 max 15min 4min
Temperature Coefficient
Lead spacing and wire diameter(unit:mm) Ambient Temperature
85 70 50
D 3 4 5 6.3 8 ()
F 1.0 1.5 2.0 2.5 2.5 Coefficient
1.0 1.6 2.0
d 0.4 0.45
Standard Size( DXLmm) & Rated Ripple Current(mA r.m.s.) at 85 120HZ
X R.C.= mA r.m.s. )
WV(V.DC)
4 6.3 10 16 25 35 50
C a p (F )
SIZE R.C. SIZE R.C. SIZE R.C. SIZE R.C. SIZE R.C. SIZE R.C. SIZE R.C.
3X5 1
0.1 4X5 1
3X5 2
0.22 4X5 2
3X5 2.5
0.33 4X5 2.5
3X5
0.47 4X5
4
4
3X5
0.68 4X5
6
6
3X5 8
1 4X5 8
3X5 7
2.2 4X5 8
4X5 9
3X5 10
3.3 4X5 11
4X5 12 4X5 13
3X5 10
4.7 4X5 11
4X5 13 4X5 14 5X5 20
3X5 11 4X5 18
6.8 13 5X5 20 5X5 20 6.3X5 25
4X5
3X5 12 3X5 13 3X5 13
10 4X5 14 4X5 16 4X5 18
5X5 25 5X5 27 6.3X5 30
15 4X5 16 4X5 20 5X5 25 5X5 30 6.3X5 35 6.3X5 38
3X5 18 3X5 18 6.3X5 45
22 4X5 20 4X5 22
5X5 30 5X5 35 6.3X5 42 6.3X5 44
8X5 50
6.3X5 50
33 4X5 25 4X5 34 5X5 40 6.3X5 48 6.3X5 50
8X5 60 8X5 70
5X5 45 6.3X5 60
47 4X5 32 5X5 37
6.3X5 50
6.3X5 58
8X5 65 8X5 80
68 5X5 45 6.3X5 55 6.3X5 58 6.3X5 65 8X5 85
100 5X5 55 6.3X5 62 6.3X5 75 8X5 90 8X5 110
220 6.3X5 72 8X5 110 8X5 135
330 8X5 140 8X5 145
470 8X5 175
