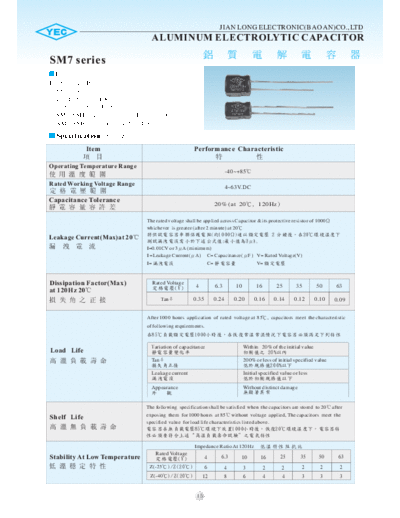

Image preview - the first page of the document
![YEC [radial thru-hole] SM7 Series](/pics/5c2ba62eca904.gif)
>> Download YEC [radial thru-hole] SM7 Series documenatation <<
Text preview - extract from the document
JIAN LONG ELECTRONIC(BAO AN)CO.,LTD
ALUMINUM ELECTROLYTIC CAPACITOR
SM7 series
Feature
1. 85 7mm Height
85 7mm
2. Load life:85 1000 hours
:85 1000
3. SM7SH7 ( high reliability 105 1000 hours)
SM7SH7( 105 1000 )
Specification
Item Performance Characteristic
Operating Temperature Range
-40~+85
Rated Working Voltage Range
4~63V.DC
Capacitance Tolerance
20% (at 20, 120Hz )
The rated voltage shall be applied across Capacitor & its protective resistor of 1000
whichever is greater (after 2 minute) at 20
( 1000) 2 20
Leakage Current(Max)at 20
: 3A.
I=0.01CV or 3A (minimum)
I =Leakage Current(A) C= Capacitance(F ) V= Rated Voltage(V)
I= C= V=
Dissipation Factor(Max) Rated Voltage
4 6.3 10 16 25 35 50 63
(V)
at 120Hz 20
Tan 0.35 0.24 0.20 0.16 0.14 0.12 0.10 0.09
After 1000 hours application of rated voltage at 85, capacitors meet the characteristic
of following requirements.
85 1000
V ariation of capacitance Within 20% of the initial value
Load Life 20%
Tan 200% or less of initial specified value
200%
Leakage current Initial specified value or less
Appearance Without distinct damage
The following specification shall be satisfied when the capacitors are stored to 20 after
exposing them for 1000 hours at 85 without voltage applied, The capacitors meet the
Shelf Life
specified value for load life characteristics listed above.
8 5 1000 2 0
" "
Impedance Ratio At 120Hz
Rated Voltage
Stability At Low Temperature (V) 4 6.3 10 16 25 35 50 63
Z(-25)/Z(20) 6 4 3 2 2 2 2 2
Z(-40)/Z(20) 12 8 6 4 4 3 3 3
15
JIAN LONG ELECTRONIC(BAO AN)CO.,LTD
ALUMINUM ELECTROLYTIC CAPACITOR
SM7 series
Case sizes and Dimensions Multiplier for ripple current
Frequency Coefficient
Outline Darwing
Frequency
Sleeve d 0.1 60(50) 120 500 1K 10K
Steel wire(tinned) (Hz)
+
0.1~47F 0.80 1.00 1.20 1.30 1.50
D+0.5max
Coefficient
- F 0.5
68~470F 0.80 1.00 1.10 1.15 1.20
L+1 max 15min 4min
Temperature Coefficient
Lead spacing and wire diameter(unit:mm) Ambient Temperature
85 70 50
D 4 5 6.3 8 ()
F 1.5 2.0 2.5 3.5 Coefficient
1.0 1.6 2.0
d 0.45 0.5
Standard Size( DXLmm) & Rated Ripple Current(mA r.m.s.) at 85 120HZ
X R .C.= mA r.m.s. )
WV(V.DC)
4 6.3 10 16 25 35 50 63
C a p (F )
SIZE R.C. SIZE R.C. SIZE R.C. SIZE R.C. SIZE R.C. SIZE R.C. SIZE R.C. SIZE R.C.
0.1 4X7 1
0.22 4X7 2
0.33 4X7 3
0.47 4X7 5
0.68 4X7 7
1 4X7 10
2.2 4X7 16
3.3 4X7 18 4X7 19 5X7 24
4.7 4X7 20 4X7 22 4X7 24 6.3X7 30
6.8 4X7 24 5X7 27 5X7 30 6.3X7 35
10 4X7 28 4X7 28 5X7 32 5X7 38 6.3X7 45
6.3X7 60
22 4X7 34 4X7 35 4X7 38 5X7 48 6.3X7 57
8X7 65
33 4X7 30 4X7 40 4X7 43 5X7 55 6.3X7 63 6.3X7 65 8X7 70
47 4X7 35 4X7 48 5X7 58 5X7 65 6.3X7 70 8X7 85 8X7 80
4X7 40 4X7 55 6.3X7 85
68 5X7 45 5X7 65
6.3X7 70 6.3X7 80
8X7 90
8X7 100
4X7 45 4X7 60 6.3X7 87 6.3X7 98
100 5X7 60 5X7 75 8X7 96 6.3X7 98
8X7 110
8X7 110
220 6.3X7 100 6.3X7 120 8X7 140 8X7 145
330 8X7 160 8X7 170 8X7 200
470 8X7 190
