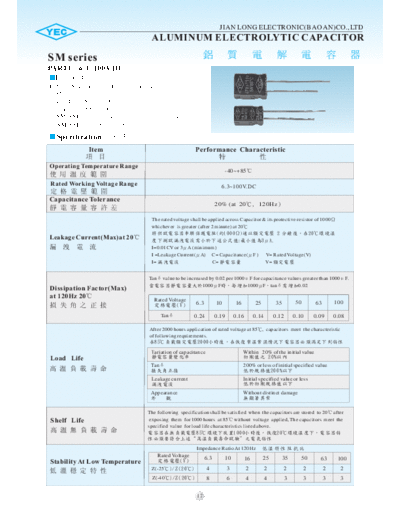

Image preview - the first page of the document
![YEC [radial thru-hole] SM Series](/pics/5c2ba635780bb.gif)
>> Download YEC [radial thru-hole] SM Series documenatation <<
Text preview - extract from the document
JIAN LONG ELECTRONIC(BAO AN)CO.,LTD
ALUMINUM ELECTROLYTIC CAPACITOR
SM series
PART16.3~100V.DC
Feature
1. 85 Standard size:For general purpose
85
2. Load life:85 2000 hours
:85 2000
3. SMSH ( high reliability 105 1 0 0 0 hours)
SMSH ( 105 1 0 0 0 )
Specification
Item Performance Characteristic
Operating Temperature Range
-40~+85
Rated Working Voltage Range 6.3~100V.DC
Capacitance Tolerance
20% (at 20, 120Hz )
The rated voltage shall be applied across Capacitor & its protective resistor of 1000
whichever is greater (after 2 minute) at 20
( 1 0 0 0) 2 2 0
Leakage Current(Max)at 20 : 3A .
I=0.01CV or 3A (minimum)
I =Leakage Current(A) C= Capacitance(F ) V= Rated Voltage(V)
I= C= V=
Tan value to be increased by 0.02 per 1000F for capacitance values greater than 1000F.
1000F 1000Ftan 0.02
Dissipation Factor(Max)
at 120Hz 20
Rated Voltage
(V) 6.3 10 16 25 35 50 63 100
Tan 0.24 0.19 0.16 0.14 0.12 0.10 0.09 0.08
After 2000 hours application of rated voltage at 85, capacitors meet the characteristic
of following requirements.
85 2000
V ariation of capacitance Within 20% of the initial value
Load Life 20%
Tan 200% or less of initial specified value
200%
Leakage current Initial specified value or less
Appearance Without distinct damage
The following specification shall be satisfied when the capacitors are stored to 20 after
Shelf Life exposing them for 1000 hours at 85 without voltage applied, The capacitors meet the
specified value for load life characteristics listed above.
85 1000 20
" "
Impedance Ratio At 120Hz
Rated Voltage
(V) 6.3 10 16 25 35 50 63 100
Stability At Low Temperature
Z(-25) / Z ( 2 0) 4 3 2 2 2 2 2 2
Z(-40) / Z ( 2 0) 8 6 4 4 3 3 3 3
17
JIAN LONG ELECTRONIC(BAO AN)CO.,LTD
ALUMINUM ELECTROLYTIC CAPACITOR
SM series
PART1: 6.3~100V.DC
Case sizes and Dimensions Multiplier for ripple current
Frequency Coefficient
Outline Darwing
Sleeve d 0.1
Frequency
Vent(except 5) 60(50) 120 500 1K 10K
Steel wire(tinned) (Hz)
+ 0.1~47F 0.80 1.00 1.20 1.30 1.50
D+0.5max
F 0.5 Coefficient
100~1000F 0.80 1.00 1.10 1.15 1.20
1500~10000F 0.80 1.00 1.05 1.10 1.15
L+a max 15min 4min
Temperature Coefficient
Lead spacing and wire diameter(unit:mm) Ambient Temperature
() 85 70 50
D 5 6.3 8 10 12.5/13 16 18
F 2.0 2.5 3.5 5.0 7.5 Coefficient
1.0 1.6 2.0
d 0.5 0.5 0.6 0.8
1.0(L20) 2.0(L20)
S tandard Size( DxLmm) & Rated Ripple Current(mA r.m.s.) at 85 120HZ
X R.C.= mA r.m.s. )
WV(V.DC) 6.3 10 16 25 35 50 63 100
C a p (F ) SIZE R.C. SIZE R.C. SIZE R.C. SIZE R.C. SIZE R.C. SIZE R.C. SIZE R.C. SIZE R.C.
0.1 5X11 1
0.22 5X11 2
0.33 5X11 4
0.47 5X11 7 5X11 10
1 5X11 13 5X11 20
2.2 5X11 23 5X11 35
3.3 5X11 35 5X11 45
4.7 5X11 40 5X11 50
10 5X11 60 5X11 70 6.3X11 80
22 5X11 90 5X11 95 6.3X11 115 8X11.5 135
33 5X11 95 5X11 110 6.3X11 135 6.3X11 140 8X11.5 180
47 5X11 110 5X11 120 6.3X11 145 6.3X11 160 8X11.5 190 10X12.5 230
100 5X11 130 5X11 135 6.3X11 180 6.3X11 185 8X11.5 240 8X11.5 270 10X12.5 290 10X20 370
220 5X11 215 6.3X11 250 8X11.5 300 8X11.5 310 10X12.5 420 10X16 490 10X20 565 12.5X25 620
330 6.3X11 275 8X11.5 320 8X11.5 370 10X12.5 470 10X16 570 10X20 650 12.5X20 765 16X25 760
470 8X11.5 380 8X11.5 415 8X11.5 450 10X12.5 550 10X20 740 12.5X20 860 12.5X20 880 16X25 950
680 8X11.5 450 10X12.5 500 10X16 600 10X20 720 12.5X20 900 12.5X25 1000 16X25 1050 18X31.5 1200
1000 8X11.5 580 10X12.5 650 10X16 800 10X20 950 12.5X20 1150 16X25 1530 16X31.5 1300 18X41 1350
1500 10X12.5 700 10X16 800 10X20 1000 12.5X20 1200 12.5X25 1400 16X31.5 1600 16X35.5 1700
2200 10X16 910 10X20 1050 12.5X20 1300 12.5X25 1550 16X25 1800 16X35.5 2100 18X35.5 2200
3300 10X20 1200 12.5X20 1400 12.5X25 1650 16X25 1950 16X35.5 2300 18X35.5 2500
4700 12.5X20 1500 12.5X25 1800 16X25 2100 16X35.5 2500 18X35.5 2700 18X41 2900
6800 12.5X25 1900 16X25 2200 16X31.5 2500 18X35.5 2850 18X41 2950
10000 16X25 2350 16X35.5 2700 18X35.5 2900 18X41 2950
18
JIAN LONG ELECTRONIC(BAO AN)CO.,LTD
ALUMINUM ELECTROLYTIC CAPACITOR
SM series
PART2:160~450V.DC
Feature
1. 85 Standard size:For general purpose
85
2. Load life:85 2000 hours
:85 2000
3. SMSH ( high reliability 105 1000 hours)
SMSH( 105 1000 )
Specification
Item Performance Characteristic
Operating Temperature Range
-40~+85 -25~+85
Rated Working Voltage Range 160~250V.DC 350~450V.DC
Capacitance Tolerance
20% (at 20, 120Hz )
The rated voltage shall be applied across Capacitor & its protective resistor of 1000
whichever is greater (after 1 minute) at 20
( 1 0 0 0) 1 2 0
Leakage Current(Max)at 20 :
1. CV1000 : I = 0.1CV+40A 2. CV1000 : I = 0.04CV + 100A
I =Leakage Current(A) C= Capacitance(F ) V= Rated Voltage(V)
I= C= V=
Tan value to be increased by 0.02 per 1000F for capacitance values greater than 1000F.
1000F 1000Ftan 0.02
Dissipation Factor(Max)
at 120Hz 20 Rated Voltage
(V) 160 200 250 350 400 450
Tan 0.20 0.20 0.20 0.20 0.20 0.20
After 2000 hours application of rated voltage at 85, capacitors meet the characteristic of
following requirements.
85, 2000
V ariation of capacitance Within 20% of the initial value
20%
Load Life
Tan 200% or less of initial specified value
200%
Leakage current Initial specified value or less
Appearance Without distinct damage
The following specification shall be satisfied when the capacitors are stored to 20 after
Shelf Life exposing them for 1000 hours at 85 without voltage applied, The capacitors meet the
specified value for load life characteristics listed above.
85 1000 20
" "
Impedance Ratio At 120Hz
Rated Voltage
160 200 250 350 400 450
Stability At Low Temperature (V)
Z(-25) / Z ( 2 0) 3 3 3 5 5 7
Z(-40)/ Z ( 2 0) 4 4 4 - - -
19
JIAN LONG ELECTRONIC(BAO AN)CO.,LTD
ALUMINUM ELECTROLYTIC CAPACITOR
SM series
PART2:160~450V.DC
Case sizes and Dimensions Multiplier for ripple current
Frequency Coefficient
Outline Darwing
d 0.1
Frequency
Vent(except 5) Sleeve 60(50)
Steel wire(tinned) (Hz) 120 500 1K 10K
+
0.1~47F
D+0.5max
0.80 1.00 1.20 1.30 1.50
-
F 0.5
Coefficient
68~330F 0.80 1.00 1.10 1.15 1.20
L+a max 15min 4min
Temperature Coefficient
Lead spacing and wire diameter(unit:mm)
Ambient Temperature
D 5 6.3 8 10 12.5/13 16 18 () 85 70 50
F 2.0 2.5 3.5 5.0 7.5
Coefficient
d 0.5 0.5 0.6 0.8 1.0 1.6 2.0
1.0(L20) 2.0(L20)
Standard Size( DXLmm) & Rated Ripple Current(mA r.m.s.) at 85 120HZ
X R.C.= mA r.m.s. )
WV(V.DC)
160 200 250 350 400 450
C a p (F ) SIZE R.C. SIZE R.C. SIZE R.C. SIZE R.C. SIZE R.C. SIZE R.C.
0.1~0.68 5X11 5 6.3X11 10 6.3X11 10 6.3X11 10 6.3X11 10 8X11.5 10
1 5X11 10 6.3X11 15 6.3X11 15 6.3X11 20 6.3X11 20 8X11.5 20
2.2 6.3X11 20 6.3X11 25 6.3X11 30 8X11.5 30 10X12.5 30 10X12.5 27
3.3 6.3X11 30 6.3X11 35 8X11.5 45 10X12.5 45 10X12.5 43 10X16 40
4.7 6.3X11 45 8X11.5 50 8X11.5 50 10X12.5 55 10X16 55 10X20 55
6.8 8X11.5 60 10X12.5 65 10X16 70 10X20 75 12.5X20 70 12.5X20 60
10 8X11.5 80 10X12.5 85 10X16 90 10X20 95 12.5X20 90 12.5X20 80
22 10X16 130 10X20 135 12.5X20 150 12.5X25 180 12.5X25 170 16X25 130
33 10X20 175 12.5X20 190 12.5X20 200 16X25 220 16X25 220 16X31.5 170
47 12.5X20 220 12.5X20 230 12.5X25 250 16X31.5 270 16X31.5 270 18X35.5 210
68 12.5X25 280 16X25 300 16X31.5 320 18X35.5 330 18X35.5 330
100 12.5X25 380 16X25 390 16X31.5 440 18X41 410 18X41 410
220 16X35.5 640 18X35.5 670
330 18X35.5 750
20
