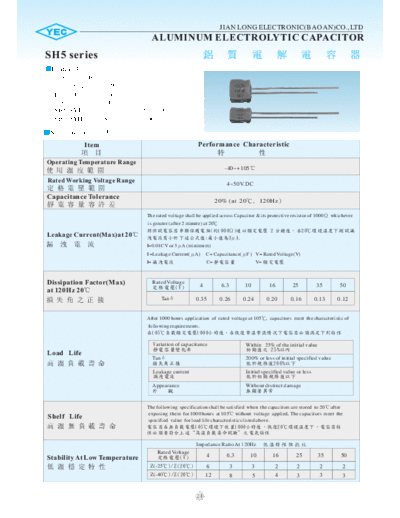

Image preview - the first page of the document
![YEC [radial thru-hole] SH5 Series](/pics/5c2ba64a3eacb.gif)
>> Download YEC [radial thru-hole] SH5 Series documenatation <<
Text preview - extract from the document
JIAN LONG ELECTRONIC(BAO AN)CO.,LTD
ALUMINUM ELECTROLYTIC CAPACITOR
SH5 series
Feature
1. 105 5mm Height
105 5mm
2. Load life:105 1000 hours
:105 1000
3. SH5YH5 ( high reliability 105 2000 hours)
SH 5Y H5 ( 105 2000 )
Specification
Item Performance Characteristic
Operating Temperature Range
-40~+105
Rated Working Voltage Range
4~50V.DC
Capacitance Tolerance
20% (at 20, 120Hz )
The rated voltage shall be applied across Capacitor & its protective resistor of 1000 whichever
is greater (after 2 minute) at 20
( 1 0 0 0) 2 2 0
Leakage Current(Max)at 20 : 3A .
I=0.01CV or 3A (minimum)
I =Leakage Current(A) C= Capacitance(F ) V= Rated Voltage(V)
I= C= V=
Dissipation Factor(Max) Rated Voltage
4 6.3 10 16 25 35 50
(V)
at 120Hz 20
Tan 0.35 0.26 0.24 0.20 0.16 0.13 0.12
After 1000 hours application of rated voltage at 105, capacitors meet the characteristic of
following requirements.
1 0 5 1000
V ariation of capacitance Within 25% of the initial value
25%
Load Life
Tan 200% or less of initial specified value
200%
Leakage current Initial specified value or less
Appearance Without distinct damage
The following specification shall be satisfied when the capacitors are stored to 20 after
exposing them for 1000 hours at 105 without voltage applied, The capacitors meet the
Shelf Life
specified value for load life characteristics listed above.
105 1000 20
" "
Impedance Ratio At 120Hz
Rated Voltage
Stability At Low Temperature (V) 4 6.3 10 16 25 35 50
Z(-25)/Z(20) 6 3 3 2 2 2 2
Z(-40)/Z(20) 12 8 5 4 3 3 3
21
JIAN LONG ELECTRONIC(BAO AN)CO.,LTD
ALUMINUM ELECTROLYTIC CAPACITOR
SH5 series
Case sizes and Dimensions Multiplier for ripple current
Frequency Coefficient
Outline Darwing Frequency
Sleeve d 0.1 (Hz) 60(50) 120 500 1K 10K
Steel wire(tinned)
+ 0.1~47F 0.80 1.00 1.20 1.30 1.50
D+0.5max
Coefficient
-
F 0.5
68~470F 0.80 1.00 1.10 1.15 1.20
L+1 max 15min 4min
Temperature Coefficient
Lead spacing and wire diameter(unit:mm) Ambient Temperature
() 105 85 65
D 4 5 6.3 8
F 1.5 2.0 2.5 2.5 Coefficient
1.0 1.7 2.1
d 0.45
Standard Size( DXLmm) & Rated Ripple Current(mA r.m.s.) at 105 120HZ
X R.C.= mA r.m.s. )
WV(V.DC)
4 6.3 10 16 25 35 50
C a p (F )
SIZE R.C. SIZE R.C. SIZE R.C. SIZE R.C. SIZE R.C. SIZE R.C. SIZE R.C.
0.1 4X5 1
0.22 4X5 2
0.33 4X5 3
0.47 4X5 4
0.68 4X5 5
1 4X5 6
2.2 4X5 8 4X5 11
3.3 4X5 11 4X5 13
4.7 4X5 12 4X5 15 5X5 18
6.8 5X5 17 5X5 20 6.3X5 23
10 4X5 17 5X5 22 5X5 24 6.3X5 28
22 4X5 20 4X5 22 5X5 27 5X5 30 6.3X5 38 6.3X5 44 8X5 45
33 5X5 28 5X5 30 5X5 33 6.3X5 40 6.3X5 45 8X5 50 8X5 60
47 5X5 35 5X5 36 6.3X5 46 6.3X5 50 8X5 60 8X5 70
68 6.3X5 45 6.3X5 50 6.3X5 55 6.3X5 60 8X5 80
100 6.3X5 55 6.3X5 57 6.3X5 60 8X5 80 8X5 100
220 6.3X5 65 8X5 90 8X5 120
330 8X5 120 8X5 130
470 8X5 170
22
