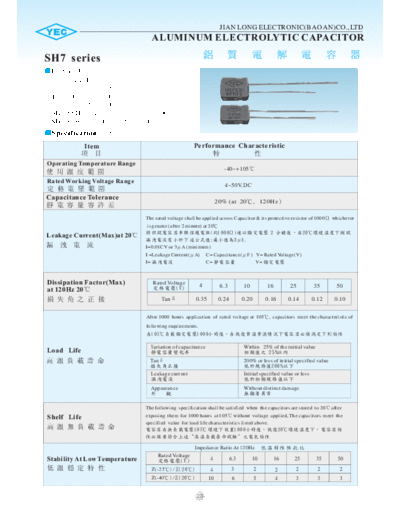

Image preview - the first page of the document
![YEC [radial thru-hole] SH7 Series](/pics/5c2ba67023922.gif)
>> Download YEC [radial thru-hole] SH7 Series documenatation <<
Text preview - extract from the document
JIAN LONG ELECTRONIC(BAO AN)CO.,LTD
ALUMINUM ELECTROLYTIC CAPACITOR
SH7 series
Feature
1. 105 7mm Height
105 7mm
2. Load life:105 1000 hours
:105 1000
3. SH7YH7 ( high reliability 105 2000 hours)
SH7YH7 ( 105 2000 )
Specification
Item Performance Characteristic
Operating Temperature Range
-40~+105
Rated Working Voltage Range
4~50V.DC
Capacitance Tolerance
20% (at 20, 120Hz )
The rated voltage shall be applied across Capacitor & its protective resistor of 1000 whichever
is greater (after 2 minute) at 20
( 1000) 2 20
Leakage Current(Max)at 20
: 3A.
I=0.01CV or 3A (minimum)
I =Leakage Current(A) C= Capacitance(F ) V= Rated Voltage(V)
I= C= V=
Dissipation Factor(Max) Rated Voltage
4 6.3 10 16 25 35 50
at 120Hz 20 (V)
Tan 0.35 0.24 0.20 0.16 0.14 0.12 0.10
After 1000 hours application of rated voltage at 105, capacitors meet the characteristic of
following requirements.
105 1000
V ariation of capacitance Within 25% of the initial value
Load Life 25%
Tan 200% or less of initial specified value
200%
Leakage current Initial specified value or less
Appearance Without distinct damage
The following specification shall be satisfied when the capacitors are stored to 20 after
Shelf Life exposing them for 1000 hours at 105 without voltage applied, The capacitors meet the
specified value for load life characteristics listed above.
1 0 5 1000 2 0
" "
Impedance Ratio At 120Hz
Rated Voltage
Stability At Low Temperature (V) 4 6.3 10 16 25 35 50
Z(-25) /Z(20) 4 3 2 2 2 2 2
Z(-40) /Z(20) 10 6 5 4 3 3 3
23
JIAN LONG ELECTRONIC(BAO AN)CO.,LTD
ALUMINUM ELECTROLYTIC CAPACITOR
SH7 series
Case sizes and Dimensions Multiplier for ripple current
Frequency Coefficient
Outline Darwing Frequency
Sleeve d 0.1 (Hz) 60(50) 120 500 1K 10K
Steel wire(tinned)
+ 0.1~47F 0.80 1.00 1.20 1.30 1.50
D+0.5max
Coefficient
- F 0.5
68~470F 0.80 1.00 1.10 1.15 1.20
L+1 max 15min 4min
Temperature Coefficient
Lead spacing and wire diameter(unit:mm) Ambient Temperature
D 4 5 6.3 8 () 105 85 65
F 1.5 2.0 2.5 3.5 Coefficient
1.0 1.7 2.1
d 0.45 0.5
Standard Size( DXLmm) & Rated Ripple Current(mA r.m.s.) at 105 120HZ
X R.C.= mA r.m.s. )
WV(V.DC)
4 6.3 10 16 25 35 50
C a p (F )
SIZE R.C. SIZE R.C. SIZE R.C. SIZE R.C. SIZE R.C. SIZE R.C. SIZE R.C.
0.1 4X7 1
0.22 4X7 2
0.33 4X7 3
0.47 4X7 5
0.68 4X7 7
1 4X7 9
2.2 4X7 16
3.3 4X7 19
4.7 4X7 22 5X7 24
6.8 5X7 28 6.3X7 30
10 4X7 25 5X7 28 5X7 32 6.3X7 38
6.3X7 60
22 4X7 32 5X7 35 5X7 38 6.3X7 45 6.3X7 55
8X7 65
33 4X7 25 5X7 40 5X7 43 6.3X7 55 6.3X7 60 8X7 65
47 4X7 33 5X7 45 6.3X7 58 6.3X7 65 8X7 70
68 5X7 44 6.3X7 65 6.3X7 70 8X7 80
6.3X7 85
100 6.3X7 55 6.3X7 75
8X7
8X7 98
95
220 6.3X7 90 8X7 120 8X7 130
330 8X7 150 8X7 160
470 8X7 180
24
