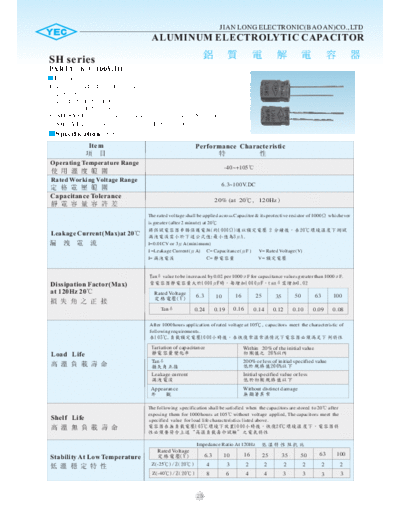

Image preview - the first page of the document
![YEC [radial thru-hole] SH Series](/pics/5c2ba677b8fd2.gif)
>> Download YEC [radial thru-hole] SH Series documenatation <<
Text preview - extract from the document
JIAN LONG ELECTRONIC(BAO AN)CO.,LTD
ALUMINUM ELECTROLYTIC CAPACITOR
SH series
PART16.3~100V.DC
Feature
1. 105 Standard size:For general purpose
105
2. Load life:105 1000 hours
:105 1000
3. SHYHL ( high reliability and ripple current 105 2000 hours)
SHYHL ( 105 2000 )
Specification
Item Performance Characteristic
Operating Temperature Range
-40~+105
Rated Working Voltage Range
6.3~100V.DC
Capacitance Tolerance
20% (at 20, 120Hz )
The rated voltage shall be applied across Capacitor & its protective resistor of 1000 whichever
is greater (after 2 minute) at 20
( 1000) 2 20
Leakage Current(Max)at 20 : 3A.
I=0.01CV or 3A (minimum)
I =Leakage Current(A) C= Capacitance(F ) V= Rated Voltage(V)
I= C= V=
Tan value to be increased by 0.02 per 1000F for capacitance values greater than 1000F.
Dissipation Factor(Max) 1000F 1000Ftan 0.02
at 120Hz 20 Rated Voltage
(V) 6.3 10 16 25 35 50 63 100
Tan 0.24 0.19 0.16 0.14 0.12 0.10 0.09 0.08
After 1000 hours application of rated voltage at 105, capacitors meet the characteristic of
following requirements.
105, 1000
V ariation of capacitance Within 20% of the initial value
Load Life 20%
Tan 200% or less of initial specified value
200%
Leakage current Initial specified value or less
Appearance Without distinct damage
The following specification shall be satisfied when the capacitors are stored to 20 after
exposing them for 1000 hours at 105 without voltage applied, The capacitors meet the
Shelf Life specified value for load life characteristics listed above.
1 0 5 1000 2 0
" "
Impedance Ratio At 120Hz
Rated Voltage
16 63 100
Stability At Low Temperature (V) 6.3 10 25 35 50
Z(-25) / Z ( 2 0) 4 3 2 2 2 2 2 2
Z(-40) / Z ( 2 0) 8 6 4 4 3 3 3 3
25
JIAN LONG ELECTRONIC(BAO AN)CO.,LTD
ALUMINUM ELECTROLYTIC CAPACITOR
SH series
PART16.3~100V.DC
Case sizes and Dimensions Multiplier for ripple current
Frequency Coefficient
Outline Darwing Frequency
60(50) 120 500 1K 10K
Vent(except 5) Sleeve d 0.1 (Hz)
Steel wire(tinned)
+ 0.1~47F 0.80 1.00 1.20 1.30 1.50
D+0.5max
Coefficient
100~1000F
-
F 0.5
0.80 1.00 1.10 1.15 1.20
1500~10000F 0.80 1.00 1.05 1.10 1.15
L+a max 15min 4min
Temperature Coefficient
Lead spacing and wire diameter(unit:mm)
Ambient Temperature 105 85 65
D 5 6.3 8 10 12.5/13 16 18
()
F 2.0 2.5 3.5 5.0 7.5
d 0.5 0.5 0.6 0.8 Coefficient 1.0 1.7 2.1
1.0(L20) 2.0(L20)
S tandard Size( DxLmm) & Rated Ripple Current(mA r.m.s.) At 105 120HZ
X R.C.= mA r.m.s. )
WV(V.DC) 10 35 63
6.3 16 25 50 100
C a p (F ) SIZE R.C. SIZE R.C. SIZE R.C. SIZE R.C. SIZE R.C. SIZE R.C. SIZE R.C. SIZE R.C.
0.1 5X11 1
0.22 5X11 2
0.33 5X11 4
0.47 5X11 5 5X11 8
1 5X11 10 5X11 15
2.2 5X11 15 5X11 20
3.3 5X11 20 5X11 25
4.7 5X11 30 5X11 30
10 5X11 45 5X11 45 6.3X11 55
22 5X11 60 5X11 65 6.3X11 82 8X11.5 95
33 5X11 65 5X11 75 6.3X11 90 6.3X11 100 8X11.5 130
47 5X11 80 5X11 80 6.3X11 100 6.3X11 110 8X11.5 135 10X12.5 180
100 5X11 95 5X11 100 6.3X11 120 6.3X11 130 8X11.5 170 8X11.5 190 10X12.5 220 10X20 280
220 5X11 150 6.3X11 170 8X11.5 215 8X11.5 230 10X12.5 290 10X16 350 10X20 400 16X25 570
330 6.3X11 200 8X11.5 245 8X11.5 260 10X12.5 320 10X16 400 10X20 460 12.5X20 530 16X25 700
470 8X11.5 270 8X11.5 280 8X11.5 370 10X16 440 10X20 520 12.5X20 610 12.5X20 690 16X25 860
680 8X11.5 340 10X12.5 400 10X16 480 10X20 550 12.5X20 670 12.5X25 800 16X25 900 18X31.5 920
1000 8X11.5 450 10X12.5 530 10X16 630 10X20 720 12.5X20 850 16X25 1080 16X31.5 1210 18X41 970
1500 10X16 580 10X16 650 12.5X20 800 12.5X20 950 12.5X25 1100 16X31.5 1300 16X35.5 1400
2200 10X20 760 10X20 850 12.5X20 1040 12.5X25 1220 16X25 1350 16X35.5 1580 18X35.5 1630
3300 10X20 970 12.5X20 1080 12.5X25 1280 16X25 1480 18X35.5 1660 18X41 1760
4700 12.5X20 1100 12.5X25 1300 16X31.5 1640 16X35.5 1780 18X41 1900
6800 12.5X25 1450 16X25 1670 16X35.5 1900 18X35.5 2020
10000 16X25 1650 16X35.5 1900 18X35.5 2050
26
JIAN LONG ELECTRONIC(BAO AN)CO.,LTD
ALUMINUM ELECTROLYTIC CAPACITOR
SH series
PART2:160~450V.DC
Feature
1. 105 Standard size:For general purpose
105
2. Load life:105 1000 hours
:105 1000
Specification
Item Performance Characteristic
Operating Temperature Range
-40~+105 -25~+105
Rated Working Voltage Range 160~250V.DC 350~450V.DC
Capacitance Tolerance
20% (at 20, 120Hz )
The rated voltage shall be applied across Capacitor & its protective resistor of 1000
whichever is greater (after 1 minute) at 20
( 1 0 0 0) 1 2 0
Leakage Current(Max)at 20 :
1. CV1000 : I = 0.1CV+40A 2. CV1000 : I = 0.04CV + 100A
I =Leakage Current(A) C= Capacitance(F ) V= Rated Voltage(V)
I= C= V=
Tan value to be increased by 0.02 per 1000F for capacitance values greater than 1000F.
1000F 1000Ftan 0.02
Dissipation Factor(Max)
at 120Hz 20 Rated Voltage
(V) 160 200 250 350 400 450
Tan 0.20 0.20 0.20 0.24 0.24 0.24
After 1000 hours application of rated voltage at 105, capacitors meet the characteristic of
following requirements.
1 0 5, 1000
V ariation of capacitance Within 20% of the initial value
20%
Load Life
Tan 200% or less of initial specified value
200%
Leakage current Initial specified value or less
Appearance Without distinct damage
The following specification shall be satisfied when the capacitors are stored to 20 after
exposing them for 1000 hours at 105 without voltage applied, The capacitors meet the
Shelf Life specified value for load life characteristics listed above.
105 1000 20
" "
Impedance Ratio At 120Hz
Rated Voltage
160 200 250 350 400 450
Stability At Low Temperature (V)
Z(-25)/ Z ( 2 0) 3 3 3 6 6 6
Z(-40)/ Z ( 2 0) 4 4 4 - - -
27
JIAN LONG ELECTRONIC(BAO AN)CO.,LTD
ALUMINUM ELECTROLYTIC CAPACITOR
SH series
PART2:160~450V.DC
Case sizes and Dimensions Multiplier for ripple current
Frequency Coefficient
Outline Darwing Frequency
Vent(except 5) Sleeve d 0.1 60(50) 120 500 1K 10K
Steel wire(tinned) (Hz)
+
0.1~47F
D+0.5max
0.80 1.00 1.20 1.30 1.50
-
F 0.5 Coefficient
68~330F 0.80 1.00 1.10 1.15 1.20
L+a max 15min 4min
Temperature Coefficient
Lead spacing and wire diameter(unit:mm)
Ambient Temperature
D 5 6.3 8 10 12.5/13 16 18 () 105 85 65
F 2.0 2.5 3.5 5.0 7.5
Coefficient
d 0.5 0.5 0.6 0.8 1.0 1.7 2.1
1.0(L20) 2.0(L20)
Standard Size( DXLmm) & Rated Ripple Current(mA r.m.s.) At 105 120HZ
X R.C.= mA r.m.s. )
WV(V.DC)
160 200 250 350 400 450
Cap(F) SIZE SIZE
R.C. SIZE R.C. R.C. SIZE R.C. SIZE R.C. SIZE R.C.
0.1~0.68 5X11 4 6.3X11 8 6.3X11 8 6.3X11 8 6.3X11 8 8X11.5 8
1 5X11 8 6.3X11 10 6.3X11 13 6.3X11 15 6.3X11 15 8X11.5 13
2.2 6.3X11 15 6.3X11 20 6.3X11 25 8X11.5 28 10X12.5 28 10X12.5 20
3.3 6.3X11 25 6.3X11 30 8X11.5 35 10X12.5 40 10X12.5 35 10X16 30
4.7 6.3X11 35 8X11.5 40 8X11.5 45 10X12.5 50 10X16 50 10X20 40
6.8 8X11.5 50 10X12.5 60 10X16 65 10X20 70 12.5X20 60 12.5X20 55
10 8X11.5 75 10X12.5 80 10X16 85 10X20 90 12.5X20 80 12.5X20 65
22 10X16 120 10X20 130 12.5X20 140 12.5X25 170 12.5X25 160 16X25 110
33 10X20 160 12.5X20 180 12.5X20 190 16X25 200 16X25 200 16X31.5 150
47 12.5X20 200 12.5X20 210 12.5X25 230 16X31.5 250 16X31.5 260 18X35.5 180
68 12.5X25 240 16X25 250 16X31.5 290 18X35.5 310 18X35.5 310
100 12.5X25 310 16X25 330 16X31.5 390 18X41 400 18X41 400
220 16X35.5 560 18X35.5 570
330 18X35.5 690
28
