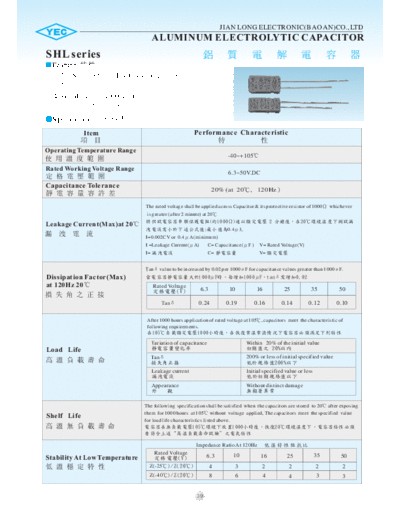

Image preview - the first page of the document
![YEC [radial thru-hole] SHL Series](/pics/5c2ba67f6c54d.gif)
>> Download YEC [radial thru-hole] SHL Series documenatation <<
Text preview - extract from the document
JIAN LONG ELECTRONIC(BAO AN)CO.,LTD
ALUMINUM ELECTROLYTIC CAPACITOR
SHL series
Feature
1. 105 Standard size: For low leakage current.
105 .
2. Load life:105 1000 hours
:105 1000
Specification
Item Performance Characteristic
Operating Temperature Range
-40~+105
Rated Working Voltage Range
6.3~50V.DC
Capacitance Tolerance
20% (at 20, 120Hz )
The rated voltage shall be applied across Capacitor & its protective resistor of 1000 whichever
is greater (after 2 minute) at 20
( 1 0 0 0) 2 2 0
Leakage Current(Max)at 20
: 0.4A .
I=0.002CV or 0.4A (minimum)
I =Leakage Current(A) C= Capacitance(F ) V= Rated Voltage(V)
I= C= V=
T an value to be increased by 0.02 per 1000F for capacitance values greater than 1000F.
Dissipation Factor(Max) 1 0 00F 1 0 00Ft a n 0.02
at 120Hz 20 Rated Voltage
(V) 6.3 10 16 25 35 50
Tan 0.24 0.19 0.16 0.14 0.12 0.10
After 1000 hours application of rated voltage at 105, capacitors meet the characteristic of
following requirements.
1 0 5 1000
Variation of capacitance Within 20% of the initial value
Load Life 20%
Tan 200% or less of initial specified value
200%
Leakage current Initial specified value or less
Appearance Without distinct damage
The following specification shall be satisfied when the capacitors are stored to 20 after exposing
them for 1000 hours at 105 without voltage applied, The capacitors meet the specified value
Shelf Life
for load life characteristics listed above.
1 0 5 1000 2 0
" "
Impedance Ratio At 120Hz
Rated Voltage
Stability At Low Temperature (V) 6.3 10 16 25 35 50
Z(-25)/Z(20) 4 3 2 2 2 2
Z(-40)/Z(20) 8 6 4 4 3 3
39
JIAN LONG ELECTRONIC(BAO AN)CO.,LTD
ALUMINUM ELECTROLYTIC CAPACITOR
SHL series
Case sizes and Dimensions Multiplier for ripple current
Frequency Coefficient
Outline Darwing
d 0.1
Frequency
Vent(except 5) Sleeve 60(50) 120 500 1K 10K
Steel wire(tinned) (Hz)
+
0.1~47F 0.80 1.00 1.20 1.30 1.50
D+0.5max
Coefficient
-
F 0.5
100~1000F 0.80 1.00 1.10 1.15 1.20
L+a max 15min 4min
Temperature Coefficient
Lead spacing and wire diameter(unit:mm)
D 5 6.3 8 10 Ambient Temperature
105 85 65
()
F 2.0 2.5 3.5 5.0
d 0.5 0.6 Coefficient
1.0 1.7 2.1
1.0(L20)
Standard Size( DXLmm) & Rated Ripple Current(mA r.m.s.) at 105 120HZ
X R.C.= mA r.m.s. )
WV(V.DC)
6.3 10 16 25 35 50
C a p (F )
SIZE R.C. SIZE R.C. SIZE R.C. SIZE R.C. SIZE R.C. SIZE R.C.
0.1 5X11 1
0.22 5X11 2
0.33 5X11 3
0.47 5X11 5
1 5X11 10
2.2 5X11 20
3.3 5X11 30
4.7 5X11 25 5X11 30 5X11 35
10 5X11 30 5X11 45 5X11 50 5X11 55
22 5X11 40 5X11 45 5X11 60 5X11 80 5X11 85 6.3X11 90
33 5X11 50 5X11 65 5X11 80 5X11 90 6.3X11 110 6.3X11 120
47 5X11 70 5X11 80 5X11 90 6.3X11 120 6.3X11 130 8X11.5 170
100 5X11 90 6.3X11 130 6.3X11 160 8X11.5 200 8X11.5 230 10X12.5 280
220 6.3X11 200 8X11.5 270 8X11.5 280 10X12.5 350 10X16 400 10X20 460
330 8X11.5 300 8X11.5 350 10X12.5 380 10X16 460 10X20 520
470 8X11.5 360 10X12.5 450 10X16 500 10X20 590
680 10X16 470 10X20 570
1000 10X16 640 10X20 730
40
