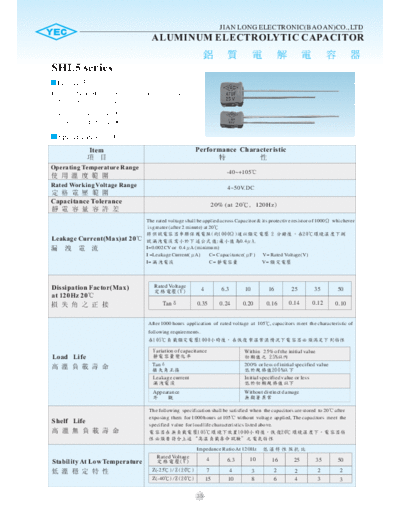

Image preview - the first page of the document
![YEC [radial thru-hole] SHL5 Series](/pics/5c2ba6adaad3e.gif)
>> Download YEC [radial thru-hole] SHL5 Series documenatation <<
Text preview - extract from the document
JIAN LONG ELECTRONIC(BAO AN)CO.,LTD
ALUMINUM ELECTROLYTIC CAPACITOR
SHL5 series
Feature
1. 105 5mm Height. For low leakage current.
105 5mm .
2. Load life:105 1000 hours
:105 1000
Specification
Item Performance Characteristic
Operating Temperature Range
-40~+105
Rated Working Voltage Range
4~50V.DC
Capacitance Tolerance
20% (at 20, 120Hz )
The rated voltage shall be applied across Capacitor & its protective resistor of 1000 whichever
is greater (after 2 minute) at 20
( 1000) 2 20
Leakage Current(Max)at 20 : 0.4A.
I=0.002CV or 0.4A (minimum)
I =Leakage Current(A) C= Capacitance(F ) V= Rated Voltage(V)
I= C= V=
Dissipation Factor(Max) Rated Voltage
(V) 4 6.3 10 16 25 35 50
at 120Hz 20
Tan 0.35 0.24 0.20 0.16 0.14 0.12 0.10
After 1000 hours application of rated voltage at 105, capacitors meet the characteristic of
following requirements.
1 0 5 1000
V ariation of capacitance Within 25% of the initial value
Load Life 25%
Tan 200% or less of initial specified value
200%
Leakage current Initial specified value or less
Appearance Without distinct damage
The following specification shall be satisfied when the capacitors are stored to 20 after
exposing them for 1000 hours at 105 without voltage applied, The capacitors meet the
Shelf Life
specified value for load life characteristics listed above.
1 0 5 1000 2 0
" "
Impedance Ratio At 120Hz
Rated Voltage
Stability At Low Temperature (V) 4 6.3 10 16 25 35 50
Z(-25)/Z(20) 7 4 3 2 2 2 2
Z(-40)/Z(20) 15 10 8 6 4 3 3
35
JIAN LONG ELECTRONIC(BAO AN)CO.,LTD
ALUMINUM ELECTROLYTIC CAPACITOR
SHL5 series
Case sizes and Dimensions Multiplier for ripple current
Frequency Coefficient
Outline Darwing
Frequency
Sleeve d 0.1 60(50) 120 500 1K 10K
Steel wire(tinned) (Hz)
+
0.1~47F 0.80 1.00 1.20 1.30 1.50
D+0.5max
Coefficient
- F 0.5 68~100F 0.80 1.00 1.10 1.15 1.20
L+1 max 15min 4min
Temperature Coefficient
Lead spacing and wire diameter(unit:mm)
Ambient Temperature
D 4 5 6.3 () 105 85 65
F 1.5 2.0 2.5 Coefficient
1.0 1.7 2.1
d 0.45
Standard Size( DXLmm) & Rated Ripple Current(mA r.m.s.) at 105 120HZ
X R.C.= mA r.m.s. )
WV(V.DC)
4 6.3 10 16 25 35 50
C a p (F )
SIZE R.C. SIZE R.C. SIZE R.C. SIZE R.C. SIZE R.C. SIZE R.C. SIZE R.C.
0.1 4X5 1
0.22 4X5 2
0.33 4X5 2.5
0.47 4X5 4
0.68 4X5 5
1 4X5 7
2.2 4X5 8
3.3 5X5 12
4.7 4X5 12 4X5 13 5X5 18
6.8 5X5 15 5X5 18 6.3X5 22
10 4X5 15 5X5 20 5X5 25 6.3X5 28
15 5X5 20 6.3X5 25 6.3X5 30
22 4X5 20 5X5 25 5X5 30 6.3X5 40 6.3X5 42
33 5X5 20 5X5 30 5X5 35 6.3X5 45 6.3X5 47
47 5X5 30 5X5 35 6.3X5 45 6.3X5 55
68 6.3X5 40 6.3X5 50
100 6.3X5 50 6.3X5 60
