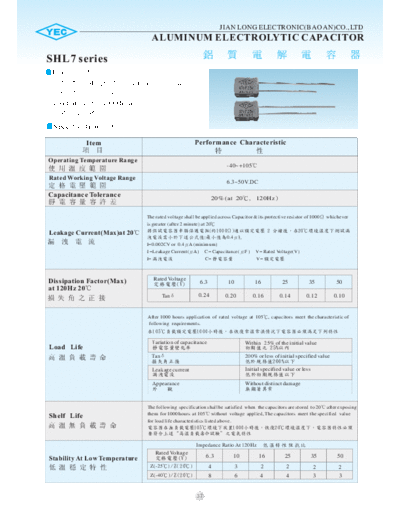

Image preview - the first page of the document
![YEC [radial thru-hole] SHL7 Series](/pics/5c2ba6b5b7477.gif)
>> Download YEC [radial thru-hole] SHL7 Series documenatation <<
Text preview - extract from the document
JIAN LONG ELECTRONIC(BAO AN)CO.,LTD
ALUMINUM ELECTROLYTIC CAPACITOR
SHL7 series
Feature
1. 105 7mm Height. For low leakage current.
105 7mm .
2. Load life:105 1000 hours
:105 1000
Specification
Item Performance Characteristic
Operating Temperature Range
-40~+105
Rated Working Voltage Range
6.3~50V.DC
Capacitance Tolerance 20% (at 20, 120Hz )
The rated voltage shall be applied across Capacitor & its protective resistor of 1000 whichever
is greater (after 2 minute) at 20
( 1000) 2 20
Leakage Current(Max)at 20
: 0.4A.
I=0.002CV or 0.4A (minimum)
I =Leakage Current(A) C= Capacitance(F ) V= Rated Voltage(V)
I= C= V=
Dissipation Factor(Max) Rated Voltage
(V) 6.3 10 16 25 35 50
at 120Hz 20
Tan 0.24 0.20 0.16 0.14 0.12 0.10
After 1000 hours application of rated voltage at 105, capacitors meet the characteristic of
following requirements.
1 0 5 1000
Variation of capacitance Within 25% of the initial value
Load Life 25%
Tan 200% or less of initial specified value
200%
Leakage current Initial specified value or less
Appearance Without distinct damage
The following specification shall be satisfied when the capacitors are stored to 20 after exposing
them for 1000 hours at 105 without voltage applied, The capacitors meet the specified value
Shelf Life
for load life characteristics listed above.
105 1000 20
" "
Impedance Ratio At 120Hz
Rated Voltage
Stability At Low Temperature (V) 6.3 10 16 25 35 50
Z(-25)/Z(20) 4 3 2 2 2 2
Z(-40)/Z(20) 8 6 4 4 3 3
37
JIAN LONG ELECTRONIC(BAO AN)CO.,LTD
ALUMINUM ELECTROLYTIC CAPACITOR
SHL7 series
Case sizes and Dimensions Multiplier for ripple current
Frequency Coefficient
Outline Darwing
Sleeve d 0.1 Frequency
Steel wire(tinned) 60(50) 120 500 1K 10K
(Hz)
+
D+0.5max
0.1~47F 0.80 1.00 1.20 1.30 1.50
-
F 0.5
Coefficient
68~220F 0.80 1.00 1.10 1.15 1.20
L+1 max 15min 4min
Temperature Coefficient
Lead spacing and wire diameter(unit:mm) Ambient Temperature
() 105 85 65
D 4 5 6.3 8
F 1.5 2.0 2.5 3.5 Coefficient
1.0 1.7 2.1
d 0.45 0.5
Standard Size( DXLmm) & Rated Ripple Current(mA r.m.s.) at 105 120HZ
X R.C.= mA r.m.s. )
WV(V.DC)
6.3 10 16 25 35 50
C a p (F )
SIZE R.C. SIZE R.C. SIZE R.C. SIZE R.C. SIZE R.C. SIZE R.C.
0.1 4X7 1
0.22 4X7 2
0.33 4X7 3
0.47 4X7 5
0.68 4X7 7
1 4X7 9
2.2 4X7 12
3.3 4X7 17
4.7 4X7 20 5X7 20
6.8 5X7 25 6.3X7 28
10 4X7 25 5X7 27 5X7 30 6.3X7 35
22 4X7 30 5X7 33 5X7 35 6.3X7 45 6.3X7 55 8X7 60
33 4X7 35 5X7 40 6.3X7 50 6.3X7 60 8X7 63
47 5X7 45 6.3X7 55 6.3X7 60 8X7 65
68 6.3X7 60 8X7 65 8X7 75
100 6.3X7 70 8X7 90 8X7 95
220 8X7 110
38
