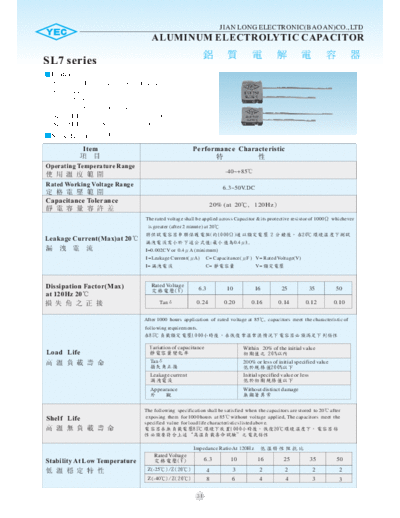

Image preview - the first page of the document
![YEC [radial thru-hole] SL7 Series](/pics/5c2ba7154e0de.gif)
>> Download YEC [radial thru-hole] SL7 Series documenatation <<
Text preview - extract from the document
JIAN LONG ELECTRONIC(BAO AN)CO.,LTD
ALUMINUM ELECTROLYTIC CAPACITOR
SL7 series
Feature
1. 85 7mm Height. For low leakage current
85 7mm
2. Load life:85 1000 hours
:85 1000
3. SL7HL7 ( high reliability 105 1 000 hours)
SL7HL7 ( 105 1 000 )
Specification
Item Performance Characteristic
Operating Temperature Range
-40~+85
Rated Working Voltage Range 6.3~50V.DC
Capacitance Tolerance
20% (at 20, 120Hz )
The rated voltage shall be applied across Capacitor & its protective resistor of 1000 whichever
is greater (after 2 minute) at 20
( 1 0 0 0) 2 2 0
Leakage Current(Max)at 20 : 0.4A .
I=0.002CV or 0.4A (minimum)
I =Leakage Current(A) C= Capacitance(F ) V= Rated Voltage(V)
I= C= V=
Dissipation Factor(Max) Rated Voltage
6.3 10 16 25 35 50
(V)
at 120Hz 20
Tan 0.24 0.20 0.16 0.14 0.12 0.10
After 1000 hours application of rated voltage at 85, capacitors meet the characteristic of
following requirements.
85 1000
Variation of capacitance Within 20% of the initial value
Load Life 20%
Tan 200% or less of initial specified value
200%
Leakage current Initial specified value or less
Appearance Without distinct damage
The following specification shall be satisfied when the capacitors are stored to 20 after
Shelf Life exposing them for 1000 hours at 85 without voltage applied, The capacitors meet the
specified value for load life characteristics listed above.
8 5 1000 2 0
" "
Impedance Ratio At 120Hz
Rated Voltage
Stability At Low Temperature (V) 6.3 10 16 25 35 50
Z(-25)/Z(20) 4 3 2 2 2 2
Z(-40)/Z(20) 8 6 4 4 3 3
31
JIAN LONG ELECTRONIC(BAO AN)CO.,LTD
ALUMINUM ELECTROLYTIC CAPACITOR
SL7 series
Case sizes and Dimensions Multiplier for ripple current
Frequency Coefficient
Outline Darwing Frequency
Sleeve d 0.1 (Hz) 60(50) 120 500 1K 10K
Steel wire(tinned)
+
0.1~47F 1.50
D+0.5max
Coefficient 0.80 1.00 1.20 1.30
- F 0.5
68~220F 0.80 1.00 1.10 1.15 1.20
L+1 max 15min 4min
Temperature Coefficient
Lead spacing and wire diameter(unit:mm) Ambient Temperature
85 70 50
D 4 5 6.3 8 ()
F 1.5 2.0 2.5 3.5 Coefficient
1.0 1.6 2.0
d 0.45 0.5
Standard Size( DXLmm) & Rated Ripple Current(mA r.m.s.) at 85 120HZ
X R.C.= mA r.m.s. )
WV(V.DC)
6.3 10 16 25 35 50
C a p (F )
SIZE R.C. SIZE R.C. SIZE R.C. SIZE R.C. SIZE R.C. SIZE R.C.
0.1 4X7 1
0.22 4X7 2
0.33 4X7 3
0.47 4X7 5
0.68 4X7 7
1 4X7 10
2.2 4X7 15
3.3 4X7 19
4.7 4X7 22 5X7 24
6.8 5X7 27 6.3X7 30
10 4X7 28 5X7 28 5X7 32 6.3X7 38
22 4X7 34 5X7 35 5X7 38 6.3X7 48 6.3X7 57 8X7 65
33 4X7 40 5X7 43 6.3X7 55 6.3X7 63 8X7 65
47 5X7 48 6.3X7 58 6.3X7 65 8X7 70
68 6.3X7 65 8X7 70 8X7 80
100 6.3X7 75 8X7 96 8X7 98
220 8X7 120
32
