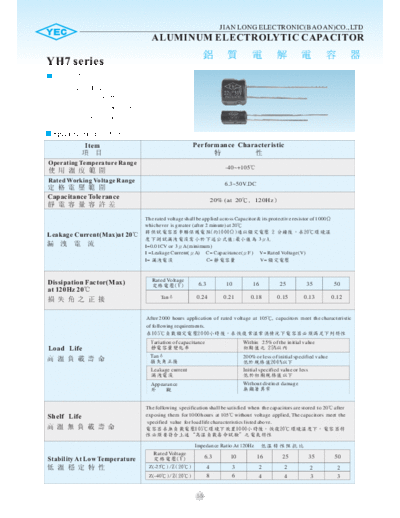

Image preview - the first page of the document
![YEC [radial thru-hole] YH7 Series](/pics/5c2ba73a240ff.gif)
>> Download YEC [radial thru-hole] YH7 Series documenatation <<
Text preview - extract from the document
JIAN LONG ELECTRONIC(BAO AN)CO.,LTD
ALUMINUM ELECTROLYTIC CAPACITOR
YH7 series
Feature
1. 105 7mm Height.
105 7mm .
2. Load life:105 2000 hours
:105 2000
Specification
Item Performance Characteristic
Operating Temperature Range
-40~+105
Rated Working Voltage Range
6.3~50V.DC
Capacitance Tolerance 20% (at 20, 120Hz )
The rated voltage shall be applied across Capacitor & its protective resistor of 1000
whichever is greater (after 2 minute) at 20
( 1000) 2 20
Leakage Current(Max)at 20
: 3A.
I=0.01CV or 3A (minimum)
I =Leakage Current(A) C= Capacitance(F ) V= Rated Voltage(V)
I= C= V=
Dissipation Factor(Max) Rated Voltage
(V) 6.3 10 16 25 35 50
at 120Hz 20
Tan 0.24 0.21 0.18 0.15 0.13 0.12
After 2000 hours application of rated voltage at 105, capacitors meet the characteristic
of following requirements.
105 2000
V ariation of capacitance Within 25% of the initial value
Load Life 25%
Tan 200% or less of initial specified value
200%
Leakage current Initial specified value or less
Appearance Without distinct damage
The following specification shall be satisfied when the capacitors are stored to 20 after
Shelf Life exposing them for 1000 hours at 105 without voltage applied, The capacitors meet the
specified value for load life characteristics listed above.
1 0 5 1000 2 0
" "
Impedance Ratio At 120Hz
Rated Voltage
Stability At Low Temperature (V) 6.3 10 16 25 35 50
Z(-25)/Z(20) 4 3 2 2 2 2
Z(-40)/Z(20) 8 6 4 4 3 3
55
JIAN LONG ELECTRONIC(BAO AN)CO.,LTD
ALUMINUM ELECTROLYTIC CAPACITOR
YH7 series
Case sizes and Dimensions Multiplier for ripple current
Frequency Coefficient
Outline Darwing
Sleeve d 0.1 Frequency
Steel wire(tinned) (Hz) 60(50) 120 500 1K 10K
+
D+0.5max
0.1~47F 0.80 1.00 1.20 1.30 1.50
-
F 0.5
Coefficient
68~220F 0.80 1.00 1.10 1.15 1.20
L+1 max 15min 4min
Temperature Coefficient
Lead spacing and wire diameter(unit:mm)
Ambient Temperature
D 4 5 6.3 8 () 105 85 65
F 1.5 2.0 2.5 3.5 Coefficient
1.0 1.7 2.1
d 0.45 0.5
Standard Size( DXLmm) & Rated Ripple Current(mA r.m.s.) at 105 120HZ
X R.C.= mA r.m.s. )
WV(V.DC)
6.3 10 16 25 35 50
C a p (F )
SIZE R.C. SIZE R.C. SIZE R.C. SIZE R.C. SIZE R.C. SIZE R.C.
0.1 4X7 1
0.22 4X7 2
0.33 4X7 3
0.47 4X7 5
0.68 4X7 7
1 4X7 9
2.2 4X7 16
3.3 4X7 19
4.7 4X7 22 5X7 24
6.8 5X7 28 6.3X7 30
10 4X7 25 5X7 28 5X7 32 6.3X7 38
22 4X7 32 5X7 35 5X7 38 6.3X7 45 6.3X7 55 8X7 65
33 5X7 40 5X7 43 6.3X7 55 6.3X7 60 8X7 65
47 5X7 45 6.3X7 58 6.3X7 65 8X7 70
68 6.3X7 65 8X7 70 8X7 80
100 6.3X7 75 8X7 95 8X7 98
220 8X7 120
56
