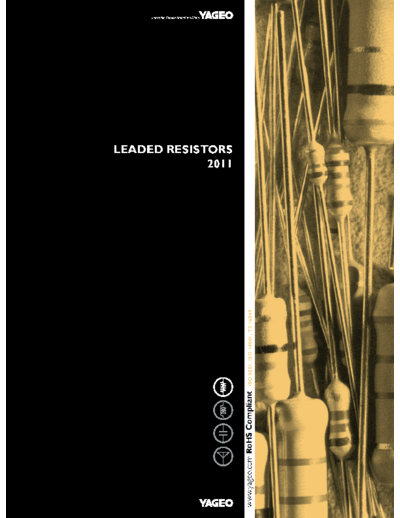

Image preview - the first page of the document
>> Download Leaded-Resistors_2011 documenatation <<
Text preview - extract from the document
2011
Leaded ResistoRs
www.yageo.com RoHs Compliant iso 9001, iso 14001, ts 16949
4 Metal Film Resistors General Type [ MFR Series ]
6 Metal Film Resistors Precision Type [ MFP Series ]
8 Metal Film Resistors Professional Type [ MF0 Series ]
10 Metal Film Resistors Flame-Proof Type [ FMF Series ]
12 Metal Film Resistors Professional & Flame-Proof Type [ FM0 Series ]
14 Metal Film Resistors High Power Type [ FMP Series ]
16 Metal Film Resistors Fusible & Flame-Proof Type [ FRM Series ]
18 Metal Film Resistors Biased Humidity Type [ MFN Series ]
20 Metal Film Resistors HID Lamps Type [ HTM Series ]
22 Metal oxide Film Resistors Flame-Proof Type [ RSF Series ]
24 Metal oxide Film Resistors Low-Inductive & Flame-Proof Type [ LIR Series ]
26 Melf Metal Film Resistors General Type [ MMF Series ]
28 Melf Metal Film Resistors High Power Type [ MMP Series ]
30 Carbon Film Resistors General Type [ CFR Series ]
32 Carbon Film Resistors Professional Type [ CF0 Series ]
34 Carbon Film Resistors Flame-Proof Type [ FCR Series ]
36 Carbon Film Resistors Professional & Flame-Proof Type [ FC0 Series ]
38 Carbon Film Resistors Non-Inductive & Flame-Proof Type [ NCR Series ]
40 Carbon Film Resistors Biased Humidity Type [ CFN Series ]
42 Melf Carbon Film Resistors General Type [ MCF Series ]
44 Melf Carbon Film Resistors High Power Type [ MCP Series ]
46 Metal Glazed Film Resistors High Voltage & High Ohmic Type [ HHV Series ]
48 Pulse-Loading Resistors Anti-Pulse Type [ APR Series ]
50 Zero ohm Resistors Coating Type [ ZOR Series ]
51 Jumper Wires Tinned-Copper Wire Type [ JPW Series ]
52 Low ohmic Wire Resistors Alloy-Wire Type [ MCW Series ]
54 Wirewound Resistors Flame-Proof Type [ KNP Series ]
56 Wirewound Resistors Flame-Proof & Non-Inductive Type [ NKN Series ]
58 Wirewound Resistors Fusible & Flame-Proof Type [ FKN Series ]
60 Wirewound Resistors High Power Type [ PNP Series ]
62 Wirewound Resistors High Power Type [ PNP V Series ]
64 Cement Resistors Axial Lead Type [ SQP / NSP Series ]
66 Cement Resistors Vertical Lead Type [ SQM / NSM Series ]
68 Cement Resistors Radial Terminals Type [ SQZ / NSZ Series ]
70 Cement Resistors Power Wirewound & Axial Lead Type [ PSP Series ]
72 Cement Resistors Power Wirewound & Vertical Lead Type [ PSM Series ]
74 Cement Resistors Fusible Thermal & Vertical Lead Type [ FTR Series ]
76 Cement Resistors Low Ohmic Metal Plate Type [ SLR Series ]
78 aluminum Housed Resistors Power Wirewound Type [ AHA / AHP Series ]
80 General information
Leaded ResistoRs
Metal Film Resistors General Type
Normal & Miniature Style [ MFR Series ]
FeatURes
Power Rating 1/6W, 1/4W, 1/2W, 1W, 2W, 3W
