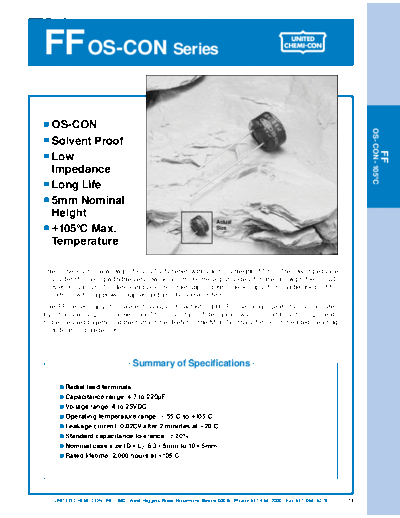

ucc_ff_os-con


>> Download ucc_ff_os-con documenatation <<

Text preview - extract from the document
FF Series

  FF OS-CON Series

    OS-CON




                                                                                                                        OS -CON -105 C
    Solvent Proof




                                                                                                                                         FF
    Low
    Impedance
    Long Life
    5mm Nominal
    Height
                                                                    Actual
     105 C Max.                                                     Size

    Temperature

  The FF series is a new low profile OS-CON series with a nominal height of 5mm. The low impedance
  characteristic, along with the very low height, make these parts ideal for use in low profile DC-DC
  converters and also for stereo and video recorder applications. These capacitors can be used in filter
  circuits of switching power supplies and also for noise limiters.
  The FF series capacitors were developed to withstand HCFC cleaning agents for five minutes
  by ultrasonic, vapor or immersion. This solvent proof design allows all circuit board components
  to be cleaned together at the same time. Refer to the Mini-Glossary for recommended cleaning
  conditions and guidelines.




                                   Summary of Specifications

         Radial lead terminals.
         Capacitance range: 4.7 to 220
