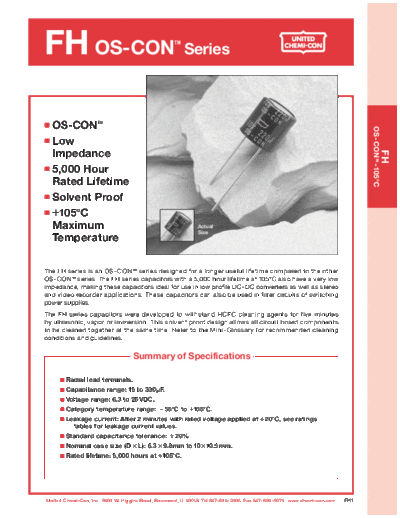

Image preview - the first page of the document
>> Download ucc_fh_os-con documenatation <<
Text preview - extract from the document
FH OS-CON Series TM
OS-CONTM
OS -CON TM -105 C
Low
Impedance
FH
5,000 Hour
Rated Lifetime
Solvent Proof
105 C
Maximum Actual
Size
Temperature
The FH series is an OS-CON TM series designed for a longer useful lifetime compared to the other
OS-CON TM series. The FH series capacitors with a 5,000 hour lifetime at 105 C also have a very low
impedance, making these capacitors ideal for use in low profile DC-DC converters as well as stereo
and video recorder applications. These capacitors can also be used in filter circuits of switching
power supplies.
The FH series capacitors were developed to withstand HCFC cleaning agents for five minutes
by ultrasonic, vapor or immersion. This solvent proof design allows all circuit board components
to be cleaned together at the same time. Refer to the Mini-Glossary for recommended cleaning
conditions and guidelines.
Summary of Specifications
Radial lead terminals.
Capacitance range: 15 to 330◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
