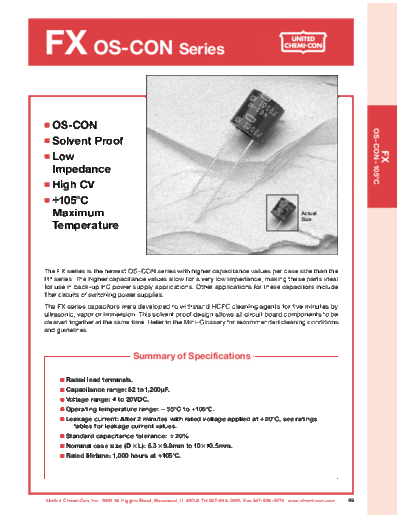

Image preview - the first page of the document



>> Download ucc_fx_os-con1 documenatation <<

Text preview - extract from the document

FX OS-CON Series

  OS-CON




                                                                                                                           OS -CON -105 C
  Solvent Proof




                                                                                                                                            FX
  Low
  Impedance
  High CV
   105 C
  Maximum                                                                                            Actual
                                                                                                     Size
  Temperature


The FX series is the newest OS-CON series with higher capacitance values per case size than the
FP series. The higher capacitance values allow for a very low impedance, making these parts ideal
for use in back-up PC power supply applications. Other applications for these capacitors include
filter circuits of switching power supplies.
The FX series capacitors were developed to withstand HCFC cleaning agents for five minutes by
ultrasonic, vapor or immersion. This solvent proof design allows all circuit board components to be
cleaned together at the same time. Refer to the Mini-Glossary for recommended cleaning conditions
and guidelines.



                                  Summary of Specifications

       Radial lead terminals.
       Capacitance range: 82 to 1,200
