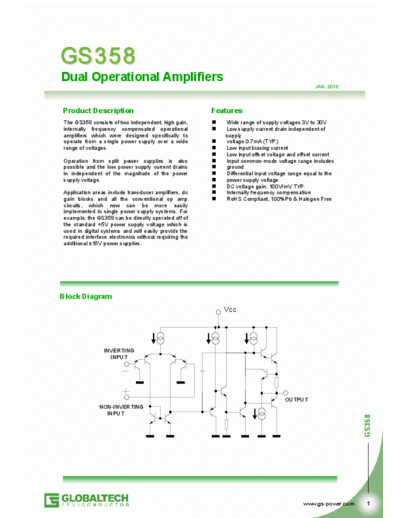

Image preview - the first page of the document
DS_GS358_Rev.A


>> Download DS_GS358_Rev.A documenatation <<

Text preview - extract from the document
Dual Operational Amplifiers
                                                                                               JAN. 2010




Product Description                                    Features
The GS358 consists of two independent, high gain,         Wide range of supply voltages 3V to 30V
internally frequency compensated operational              Low supply current drain independent of
amplifiers which were designed specifically to            supply
operate from a single power supply over a wide            voltage 0.7mA (TYP.)
range of voltages.                                        Low input biasing current
                                                          Low input offset voltage and offset current
Operation from split power supplies is also               Input common-mode voltage range includes
possible and the low power supply current drains          ground
in independent of the magnitude of the power              Differential input voltage range equal to the
supply voltage.                                           power supply voltage
                                                          DC voltage gain: 100V/mV TYP.
Application areas include transducer amplifiers, dc       Internally frequency compensation
gain blocks and all the conventional op amp               RoHS Compliant, 100%Pb & Halogen Free
circuits, which now can be more easily
implemented in single power supply systems. For
example, the GS358 can be directly operated off of
the standard +5V power supply voltage which is
used in digital systems and will easily provide the
required interface electronics without requiring the
additional
