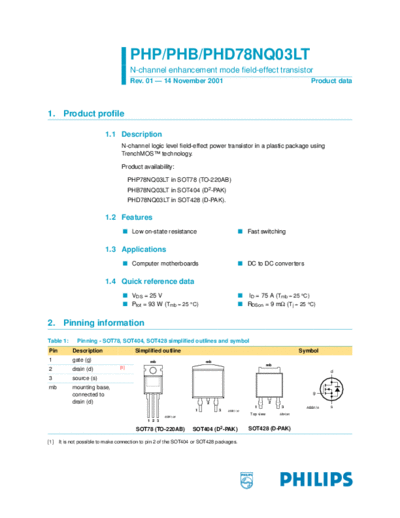

Image preview - the first page of the document



>> Download PHD78NQ03LT - N-channel enhancement mode field-effect transistor documenatation <<

Text preview - extract from the document

                                       PHP/PHB/PHD78NQ03LT
                                       N-channel enhancement mode field-effect transistor
                                       Rev. 01 -- 14 November 2001                                                        Product data



1. Product profile

                          1.1 Description
                                  N-channel logic level field-effect power transistor in a plastic package using
                                  TrenchMOSTM technology.

                                  Product availability:

                                       PHP78NQ03LT in SOT78 (TO-220AB)
                                       PHB78NQ03LT in SOT404 (D2-PAK)
                                       PHD78NQ03LT in SOT428 (D-PAK).

                          1.2 Features
                                  s Low on-state resistance                              s Fast switching


                          1.3 Applications
                                  s Computer motherboards                                s DC to DC converters


                          1.4 Quick reference data
                                  s VDS = 25 V                                           s ID = 75 A (Tmb = 25
