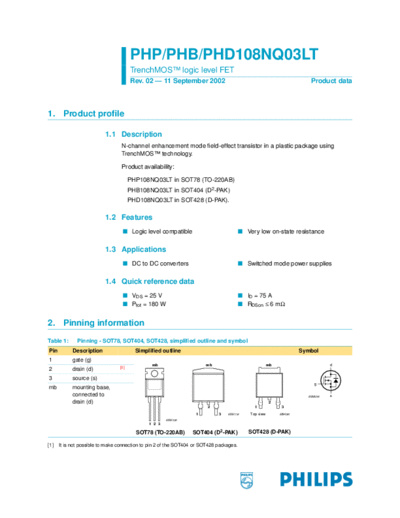

Image preview - the first page of the document



>> Download PHD108NQ03LT - N-channel TrenchMOS logic level FET documenatation <<

Text preview - extract from the document

                                       PHP/PHB/PHD108NQ03LT
                                       TrenchMOSTM logic level FET
                                       Rev. 02 -- 11 September 2002                                                      Product data



1. Product profile

                          1.1 Description
                                  N-channel enhancement mode field-effect transistor in a plastic package using
                                  TrenchMOSTM technology.

                                  Product availability:

                                       PHP108NQ03LT in SOT78 (TO-220AB)
                                       PHB108NQ03LT in SOT404 (D2-PAK)
                                       PHD108NQ03LT in SOT428 (D-PAK).

                          1.2 Features
                                  s Logic level compatible                               s Very low on-state resistance


                          1.3 Applications
                                  s DC to DC converters                                  s Switched mode power supplies


                          1.4 Quick reference data
                                  s VDS = 25 V                                           s ID = 75 A
                                  s Ptot = 180 W                                         s RDSon  6 m


2. Pinning information
Table 1:      Pinning - SOT78, SOT404, SOT428, simplified outline and symbol
Pin         Description                  Simplified outline                                                           Symbol
1           gate (g)
                                               mb                      mb                               mb                       d
2           drain (d)            [1]

3           source (s)
                                                                                                                           g
mb          mounting base,
            connected to                                                                                                MBB076   s
            drain (d)                                                                                   2
                                                                        2                      1              3
                                                                   1         3   MBK116      Top view        MBK091

                                                      MBK106
                                              1 2 3

                                         SOT78 (TO-220AB)        SOT404 (D2-PAK)            SOT428 (D-PAK)

[1]   It is not possible to make connection to pin 2 of the SOT404 or SOT428 packages.
Philips Semiconductors                                             PHP/PHB/PHD108NQ03LT
                                                                                                TrenchMOSTM logic level FET


3. Limiting values
Table 2:   Limiting values
In accordance with the Absolute Maximum Rating System (IEC 60134).
Symbol Parameter                                     Conditions                                                 Min                Max                Unit
VDS              drain-source voltage (DC)           25
