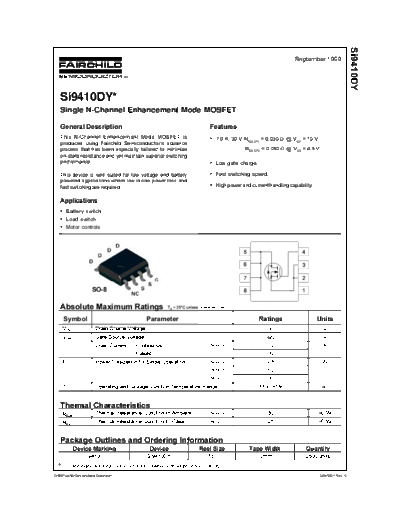

Image preview - the first page of the document



>> Download SI9410DY - Single N-Channel Enhancement Mode MOSFET documenatation <<

Text preview - extract from the document

                                                                                                                                        Si9410DY
                                                                                                         September 1999




    Si9410DY*
    Single N-Channel Enhancement Mode MOSFET

    General Description                                           Features
    This N-Channel Enhancement Mode MOSFET is                            7.0 A, 30 V. RDS(ON) = 0.030  @ VGS = 10 V
    produced using Fairchild Semiconductor's advance
    process that has been especially tailored to minimize                           RDS(ON) = 0.050  @ VGS = 4.5 V
    on-state resistance and yet maintain superior switching
    performance.                                                     Low gate charge.

    This device is well suited for low voltage and battery           Fast switching speed.
    powered applications where low in-line power loss and
    fast switching are required.                                     High power and current handling capability.

    Applications
         Battery switch
         Load switch
         Motor controls









                           SO-8

    $EVROXWH 0D[LPXP 5DWLQJV                             $
                                                     U
