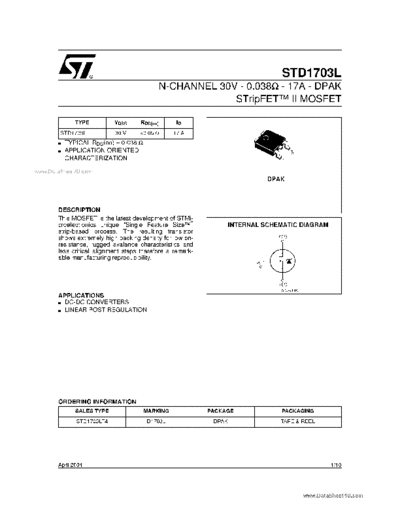

Image preview - the first page of the document

>> Download STD1703L - N-CHANNEL 30V - 0.038Ω - 17A - DPAK STripFET II MOSFET documenatation <<

Text preview - extract from the document

                                                                                STD1703L
                                              N-CHANNEL 30V - 0.038 - 17A - DPAK
                                                           STripFETTM II MOSFET

              TYPE         VDSS     RDS(on)      ID

        STD1703L           30 V     <0.05       17 A
       s   TYPICAL RDS(on) = 0.038
       s   APPLICATION ORIENTED                                                     3
           CHARACTERIZATION                                                     1
www.DataSheet4U.com
                                                                             DPAK




       DESCRIPTION
       This MOSFET is the latest development of STMi-
       croelectronics unique "Single Feature SizeTM"               INTERNAL SCHEMATIC DIAGRAM
       strip-based process. The resulting transistor
       shows extremely high packing density for low on-
       resistance, rugged avalance characteristics and
       less critical alignment steps therefore a remark-
       able manufacturing reproducibility.




       APPLICATIONS
       s DC-DC CONVERTERS

       s LINEAR POST REGULATION




       ORDERING INFORMATION
              SALES TYPE              MARKING              PACKAGE              PACKAGING
              STD1703LT4               D1703L               DPAK                TAPE & REEL




       April 2004                                                                               1/10
        STD1703L


        ABSOLUTE MAXIMUM RATINGS
           Symbol                                 Parameter                                     Value             Unit
               VDS       Drain-source Voltage (VGS = 0)                                          30                V
               VDGR      Drain-gate Voltage (RGS = 20 k)                                         30                V
               VGS       Gate- source Voltage
