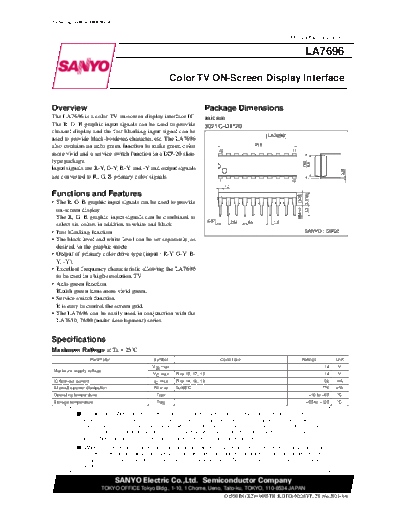

Image preview - the first page of the document
>> Download la7696 documenatation <<
Text preview - extract from the document
Ordering number:ENN2921A
Monolithic Linear IC
LA7696
Color TV ON-Screen Display Interface
Overview Package Dimensions
The LA7696 is a color TV on-screen display interface IC. unit:mm
The R, G, B graphic input signals can be used to provide 3021C-DIP20
channel display and the fast blanking input signal can be
[LA7696]
used to provide black-bordered character, etc. The LA7696
also contains an auto green function to make green color 24.0
20 11
more vivid and a service switch function in a DIP-20 slim-
type package.
7.62
6.4
Input signals are R-Y, G-Y, B-Y, and -Y and output signals
0.25
are converted to R, G, B primary color signals.
1 10
1.0
Functions and Features
3.3 3.9max
0.51min (3.25)
