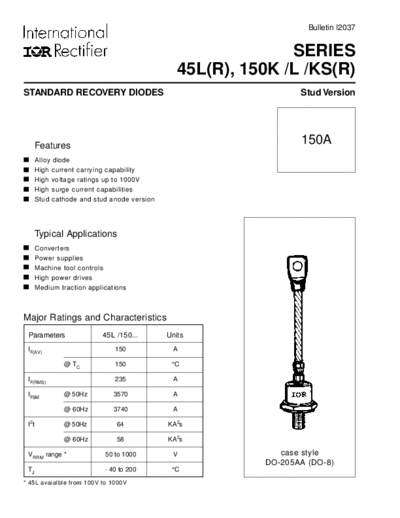

Image preview - the first page of the document



>> Download 150k60a documenatation <<

Text preview - extract from the document

                                                                   Bulletin I2037


                                                              SERIES
                                                45L(R), 150K /L /KS(R)
STANDARD RECOVERY DIODES                                         Stud Version




       Features                                                  150A
       Alloy diode
       High current carrying capability
       High voltage ratings up to 1000V
       High surge current capabilities
       Stud cathode and stud anode version




       Typical Applications
       Converters
       Power supplies
       Machine tool controls
       High power drives
       Medium traction applications



Major Ratings and Characteristics
 Parameters                45L /150...       Units
 IF(AV)                        150            A

               @ TC            150
