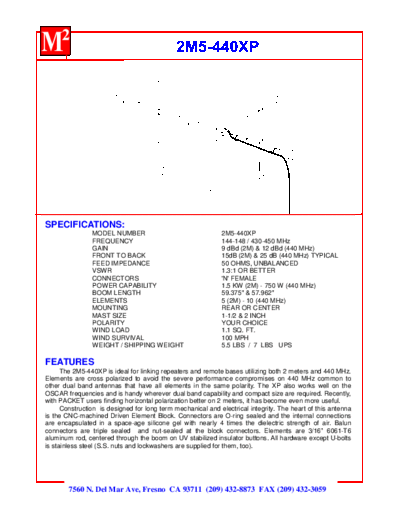

Image preview - the first page of the document



>> Download 22m5xp documenatation <<

Text preview - extract from the document

SPECIFICATIONS:
                MODEL NUMBER                                 2M5-440XP
                FREQUENCY                                    144-148 / 430-450 MHz
                GAIN                                         9 dBd (2M) & 12 dBd (440 MHz)
                FRONT TO BACK                                15dB (2M) & 25 dB (440 MHz) TYPICAL
                FEED IMPEDANCE                               50 OHMS, UNBALANCED
                VSWR                                         1.3:1 OR BETTER
                CONNECTORS                                   'N' FEMALE
                POWER CAPABILITY                             1.5 KW (2M) - 750 W (440 MHz)
                BOOM LENGTH                                  59.375" & 57.962"
                ELEMENTS                                     5 (2M) - 10 (440 MHz)
                MOUNTING                                     REAR OR CENTER
                MAST SIZE                                    1-1/2 & 2 INCH
                POLARITY                                     YOUR CHOICE
                WIND LOAD                                    1.1 SQ. FT.
                WIND SURVIVAL                                100 MPH
                WEIGHT / SHIPPING WEIGHT                     5.5 LBS / 7 LBS UPS

FEATURES
      The 2M5-440XP is ideal for linking repeaters and remote bases utilizing both 2 meters and 440 MHz.
Elements are cross polarized to avoid the severe performance compromises on 440 MHz common to
other dual band antennas that have all elements in the same polarity. The XP also works well on the
OSCAR frequencies and is handy wherever dual band capability and compact size are required. Recently,
with PACKET users finding horizontal polarization better on 2 meters, it has become even more useful.
      Construction is designed for long term mechanical and electrical integrity. The heart of this antenna
is the CNC-machined Driven Element Block. Connectors are O-ring sealed and the internal connections
are encapsulated in a space-age silicone gel with nearly 4 times the dielectric strength of air. Balun
connectors are triple sealed and nut-sealed at the block connectors. Elements are 3/16" 6061-T6
aluminum rod, centered through the boom on UV stabilized insulator buttons. All hardware except U-bolts
is stainless steel (S.S. nuts and lockwashers are supplied for them, too).




        7560 N. Del Mar Ave, Fresno CA 93711 (209) 432-8873 FAX (209) 432-3059
