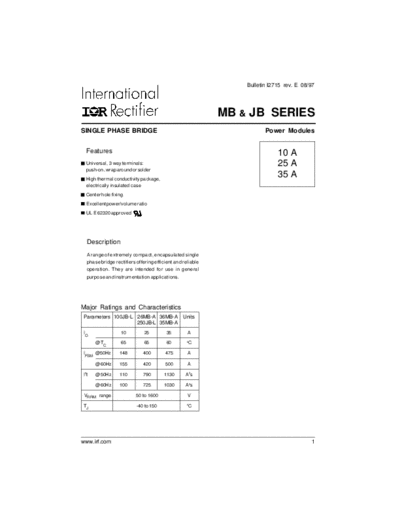

Image preview - the first page of the document



>> Download 36mbxx documenatation <<

Text preview - extract from the document

                                                                Bulletin I2715 rev. E 08/97




                                                            MB & JB SERIES
SINGLE PHASE BRIDGE                                                    Power Modules


  Features                                                                  10 A
  Universal, 3 way terminals:                                               25 A
  push-on, wrap around or solder

  High thermal conductivity package,
                                                                            35 A
  electrically insulated case

  Center hole fixing

  Excellent power/volume ratio

  UL E 62320 approved




  Description
  A range of extremely compact, encapsulated single
  phase bridge rectifiers offering efficient and reliable
  operation. They are intended for use in general
  purpose and instrumentation applications.




Major Ratings and Characteristics
 Parameters 100JB-L 26MB-A 36MB-A                Units
                    250JB-L 35MB-A
IO                 10         25         35        A
                                                   o
      @ TC         65         65         60            C

IFSM @ 50Hz       148        400        475        A

      @ 60Hz      155        420        500        A

I2t   @ 50Hz      110        790       1130       A2 s

      @ 60Hz      100        725       1030       A2 s

 VRRM range               50 to 1600               V
                                                   o
TJ                        -40 to 150                   C




www.irf.com                                                                              1
MB & JB Series
Bulletin I2715 rev. E 08/97


ELECTRICAL SPECIFICATIONS
Voltage Ratings
                     Voltage          V RRM , maximum repetitive            VRSM , maximum non-                          I RRMmax.
 Type number           Code             peak reverse voltage              repetitive peak rev. voltage                   @ TJ max.
                                                 V                                     V                                    mA
                         5                         50                                  75
                        10                         100                                150
 100JB..L               20                         200                                275
 26MB..A                40                         400                                500
 250JB..L               60                         600                                725                                    2
 36MB..A                80                         800                                900
 35MB..A               100                        1000                               1100
                       120                        1200                               1300
                       140                        1400                               1500
                       160                        1600                               1700




Forward Conduction
            Parameters                            100JB-L 26MB-A 36MB-A Units Conditions
                                                          250JB-L 35MB-A
 IO         Maximum DC output current               10     25       35      A     Resistive or inductive load
                                                    8      20       28      A     Capacitive load
            @ Case temperature                      65     65       60
