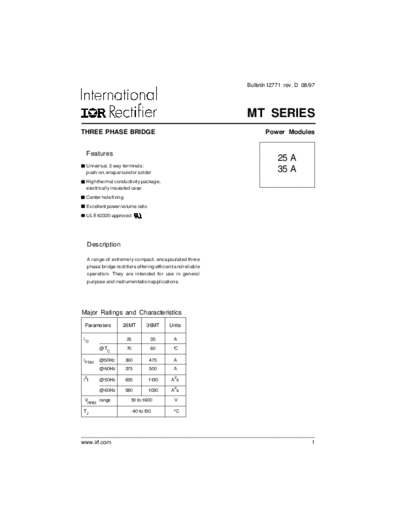

Image preview - the first page of the document



>> Download 36mtxxx documenatation <<

Text preview - extract from the document

                                                             Bulletin I2771 rev. D 08/97




                                                             MT SERIES
THREE PHASE BRIDGE                                                  Power Modules


  Features
                                                                         25 A
  Universal, 3 way terminals:
  push-on, wrap around or solder                                         35 A
  High thermal conductivity package,
  electrically insulated case

  Center hole fixing

  Excellent power/volume ratio

  UL E 62320 approved




   Description

   A range of extremely compact, encapsulated three
   phase bridge rectifiers offering efficient and reliable
   operation. They are intended for use in general
   purpose and instrumentation applications.




Major Ratings and Characteristics
 Parameters         26MT        36MT       Units

 IO                    25         35         A

         @ TC          70         60
