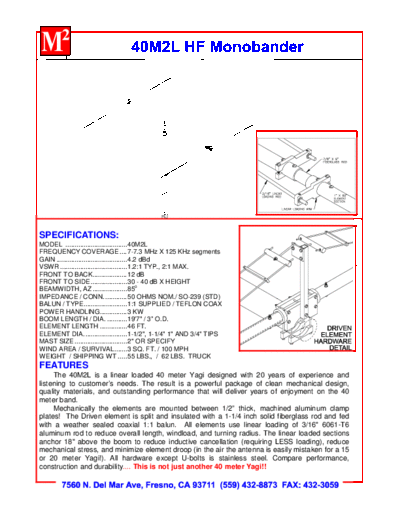

Image preview - the first page of the document



>> Download 40m2l documenatation <<

Text preview - extract from the document

SPECIFICATIONS:
MODEL ..................................40M2L
FREQUENCY COVERAGE ....7-7.3 MHz X 125 KHz segments
GAIN .......................................4.2 dBd
VSWR .....................................1.2:1 TYP., 2:1 MAX.
FRONT TO BACK ...................12 dB
FRONT TO SIDE ....................30 - 40 dB X HEIGHT
BEAMWIDTH, AZ ...................85o
IMPEDANCE / CONN. ............50 OHMS NOM./ SO-239 (STD)
BALUN / TYPE ........................1:1 SUPPLIED / TEFLON COAX
POWER HANDLING ...............3 KW
BOOM LENGTH / DIA. ...........19'7" / 3" O.D.
ELEMENT LENGTH ...............46 FT.
ELEMENT DIA. .......................1-1/2", 1-1/4" 1" AND 3/4" TIPS
MAST SIZE .............................2" OR SPECIFY
WIND AREA / SURVIVAL .......3 SQ. FT. / 100 MPH
WEIGHT / SHIPPING WT .....55 LBS., / 62 LBS. TRUCK
FEATURES
     The 40M2L is a linear loaded 40 meter Yagi designed with 20 years of experience and
listening to customer's needs. The result is a powerful package of clean mechanical design,
quality materials, and outstanding performance that will deliver years of enjoyment on the 40
meter band.
     Mechanically the elements are mounted between 1/2" thick, machined aluminum clamp
plates! The Driven element is split and insulated with a 1-1/4 inch solid fiberglass rod and fed
with a weather sealed coaxial 1:1 balun. All elements use linear loading of 3/16" 6061-T6
aluminum rod to reduce overall length, windload, and turning radius. The linear loaded sections
anchor 18" above the boom to reduce inductive cancellation (requiring LESS loading), reduce
mechanical stress, and minimize element droop (in the air the antenna is easily mistaken for a 15
or 20 meter Yagi!). All hardware except U-bolts is stainless steel. Compare performance,
construction and durability.... This is not just another 40 meter Yagi!!
