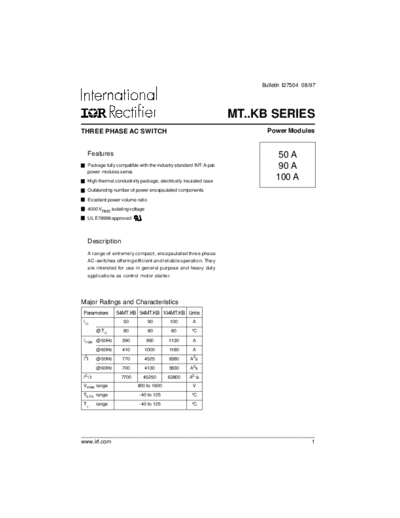

Image preview - the first page of the document



>> Download 54mtxxx documenatation <<

Text preview - extract from the document

                                                                           Bulletin I27504 08/97




                                                                      MT..KB SERIES
THREE PHASE AC SWITCH                                                        Power Modules


     Features                                                                   50 A
     Package fully compatible with the industry standard INT-A-pak              90 A
     power modules series

     High thermal conductivity package, electrically insulated case
                                                                                100 A
     Outstanding number of power encapsulated components

     Excellent power volume ratio

     4000 VRMS isolating voltage

     UL E78996 approved




     Description
     A range of extremely compact, encapsulated three phase
     AC-switches offering efficient and reliable operation. They
     are intended for use in general purpose and heavy duty
     applications as control motor starter.




Major Ratings and Characteristics
 Parameters        54MT.KB 94MT.KB 104MT.KB Units
 IO                   50            90       100        A

         @ TC         80            80        80
