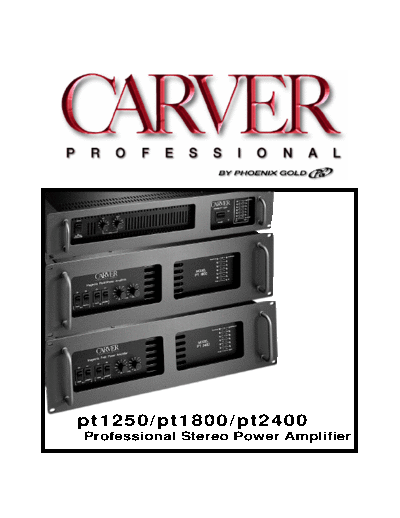

Image preview - the first page of the document
>> Download hfe_carver_pt-1250_1800_2400_en documenatation <<
Text preview - extract from the document
pt1250/pt1800/pt2400
Professional Stereo Power Amplifier
Safety Information
The lightning flash with arrowhead
symbol within an equilateral triangle
CAUTION is intended to alert the user to the
presence of uninsulated "dangerous
RISK OF ELECTRIC SHOCK voltage" within the product's
DO NOT OPEN enclosure that may be of sufficient
magnitude to constitute a risk of
electric shock to persons.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK) The exclamation point within an
NO USER-SERVICEABLE PARTS INSIDE
equilateral triangle is intended to alert
the user of the presence of important
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL operating and maintenance (servicing)
instructions in the literature
accompanying the appliance.
Table Of Contents
Introduction ..........................................................1 Installation pt1800/pt2400
Unpacking and Paperwork ...................................1 Location and
Features and Specifications General Precautions........................................14
pt1250...............................................................2 Mechanical Considerations ............................14
pt1800...............................................................4 Rear Support for
pt2400...............................................................6 Road Applications ..........................................14
Controls and Functions Thermal Considerations..................................14
pt1250...............................................................8 AC Power Considerations..............................15
pt1800/2400....................................................10 Magnetic Leakage
Installation pt1250 Considerations................................................15
Location and Input Wiring....................................................15
General Precautions........................................12 Output Wiring.................................................15
Mechanical Considerations ............................12 Polarity............................................................16
Rear Support for Dual Mono......................................................16
Road Applications ..........................................12 Bridged Mono.................................................16
Thermal Considerations..................................12 70V Distribution Systems ..............................17
AC Power Considerations ..............................12 Clipping Eliminator........................................17
Magnetic Leakage Power ON Sequencing ...................................17
Considerations................................................12 Remote Power Control...................................18
Input Wiring....................................................12 Operating Tips
Output Wiring.................................................13 Using the pt1250/1800/2400..........................19
Polarity............................................................13 In Case of Difficulty...........................................19
70V Distribution Systems ..............................14 Care and Service Assistance...............................20
Clipping Eliminator........................................14 Warranty Information .........................................21
Introduction
Congratulations on your purchase of a new Carver Professional Power Amplifier. It is backed by
state-of-the-art engineering and manufacturing techniques to bring you the best in quality
craftsmanship and reliable performance. The pt1250, pt1800 and, pt2400 are specially designed for
pro touring applications. Their rugged construction and low profile make it ideal for sustaining the
abuses of the road with reliability and space-saving economy. The pt1250 is rated at 625 watts per
channel into 4 ohms and 465 watts per channel into 8 ohms. The pt1800 is rated at 900 watts per channel
into 4 ohms and 600 watts per channel into 8 ohms. The pt2400 is rated at 1200 watts per channel into 4
ohms and 750 watts per channel into 8 ohms. The sophisticated protection circuits designed into this
amplifier will protect your system should an unexpected fault occur. They also protect the amplifier from
excessive temperature, continuous current limiting and shorted outputs. The balanced input uses a high
quality, high common-mode rejection differential amplifier for exceptional hum and noise rejection. The
sequencing feature on the pt1800 and pt2400 allows a rack of amplifiers to be powered up from a remote
location. The daisy-chain connection scheme causes each amplifier to turn on in sequence, preventing the
large in-rush current that can occur when an entire rack of amplifiers is turned on simultaneously. This power
amplifier was designed and manufactured by people with a lifetime commitment to providing the world's
finest components for music and sound reproduction. Thanks for placing your confidence in Carver
Professional. We know your amplifier will provide many years of dependable service and reliable sound
reproduction.
Unpacking and
Paperwork
Carefully unpack the amplifier and keep the original carton and packing materials for future moving, shipment
or long-term storage. After opening the box, please check for any visible signs of damage that were not
apparent from the outside of the box. If you do encounter what appears to be concealed damage, please consult
your Carver Professional Dealer before installing the unit.
Important Paperwork
Make sure to save your sales receipt. Your receipt is extremely important to establish the duration of your
Limited Warranty, and for insurance purposes. Next, make a note of the serial number which is located on
the back of the amplifier. Record it in the space provided below for convenient reference.
Model:________ pt1250 ________ pt1800 ________ pt2400
Serial Number:___________________
Purchased at:_____________________
Date:___________________________
Finally, take a moment to fill out and return the Warranty Registration Card packed with the amplifier and return
it to Carver Professional. This will allow us to keep you informed about new products as they become available.
1
