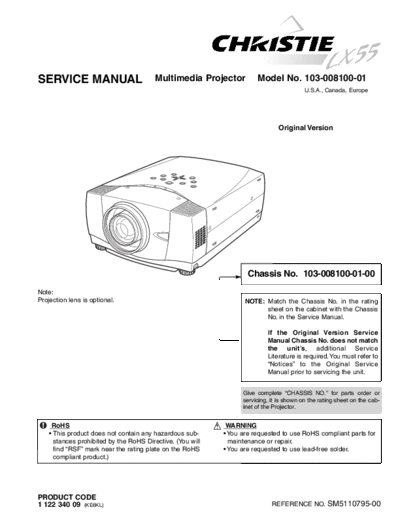

Image preview - the first page of the document
>> Download christie_lx55_chassis_103-008100-01-00_sm documenatation <<
Text preview - extract from the document
SERVICE MANUAL Multimedia Projector Model No. 103-008100-01
U.S.A., Canada, Europe
Original Version
Chassis No. 103-008100-01-00
Note:
Projection lens is optional. NOTE: Match the Chassis No. in the rating
sheet on the cabinet with the Chassis
No. in the Service Manual.
If the Original Version Service
Manual Chassis No. does not match
the unit's, additional Service
Literature is required.You must refer to
"Notices" to the Original Service
Manual prior to servicing the unit.
Give complete "CHASSIS NO." for parts order or
servicing, it is shown on the rating sheet on the cab-
inet of the Projector.
RoHS ! WARNING
