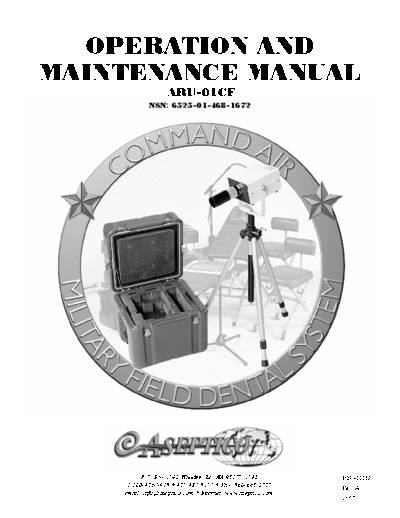

Image preview - the first page of the document
Aseptico ARU-01 Field Dental X-Ray - Maintenance manual


>> Download Aseptico ARU-01 Field Dental X-Ray - Maintenance manual documenatation <<

Text preview - extract from the document
  OPERATION AND
MAINTENANCE MANUAL
                   ARU-01CF
            NSN: 6525-01-468-1672




          P.O. Box 1548 Woodinville, WA 98072-1548          P/N 420263
     1-800-426-5913 * 425-487-3157 * Fax: 360-668-8722      Rev. A
    email: [email protected] * Internet: www.aseptico.com
                                                            05/00
         Table of Contents
         Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
                    Purpose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
                    Performance Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
                    Items Furnished . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
         Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
         Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
         Performance Verification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
                    Line Voltage Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
                    Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
                    Peak Tube Potential . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
                    Tube Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
                    Testing Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
         Operation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
                    Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
                    Technique Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
         Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
         Component Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13-16

         Table of Illustrations
         Figure A - Component Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
         Figure B - Potentiometer Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
         Figure C - Electrical Pulse Activity During X-Ray Tube Warm-up and Exposure . . . . . .7
         Figure D - X-Ray Tube Electrical Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
         Chart A - Testing Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
         Figure E - Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
         Chart B - Technique Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
         Figure F - Absolute Maximum Rating Charts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
         Figure G - Emission and Filament Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
         Figure H - Anode Thermal Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
         Figure I - Dimensional Outline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
         Figure J - Schematic Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16


         Upon Arrival
         When the equipment is received, each shipping container should be carefully examined for any
         evidence of mishandling during shipment. Note its condition, if abnormal, carefully unpack all
         parts and examine for damage. If any damage is noted, immediately report it to the carrier in the
         proper manner. All printed matter supplied with the unit should be saved for installation,
         operation, and future reference.



Page 2
Introduction
Purpose
The ARU-01CF Command Air X-ray System provides a portable and practical way to obtain
dental radiographs in the field. To receive the best service and longest life from your Aseptico
product, follow the instructions detailed in this manual.
Performance characteristics
          Weight: . . . . . . . . . . . . . . . . . . . . . . . . . . . .42 lbs.
          Size (external): . . . . . . . . . . . . . . . . . . . . .17.5" x 16" x 17", 2.75 cubic feet
          Maximum peak tube potential1: . . . . . . . .63kVp
