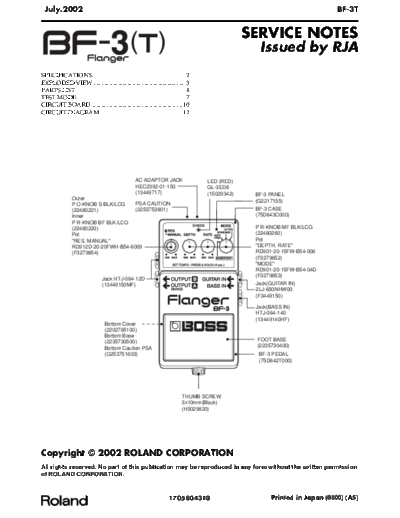

Image preview - the first page of the document
>> Download BOSS_BF-3_SERVICE_NOTES documenatation <<
Text preview - extract from the document
July.2002 BF-3T
SERVICE NOTES
Issued by RJA
SPECIFICATIONS............................................................. 2
EXPLODED VIEW ............................................................ 3
PARTS LIST........................................................................ 4
TEST MODE....................................................................... 7
CIRCUIT BOARD............................................................ 10
CIRCUIT DIAGRAM...................................................... 12
AC ADAPTOR JACK LED (RED)
HEC2392-01-150 GL-3ED8
(13449717) (15029342) BF-3 PANEL
Outer
(G2217155)
P O-KNOB S BLK/LCG PSA CAUTION
(22480221) (2253753801) BF-3 CASE
Inner (75D643C000)
P R-KNOB BF BLK/LCG
(22480220) P R-KNOB MF BLK/LCG
Pot (22480260)
"RES, MANUAL" Pot
RD912D-20-20FWH-B54-6009 "DEPTH, RATE"
(F3279854) RD901-20-15FW-B54-006
(F3279852)
"MODE"
RD901-20-15FW-B54-04D
(F3279853)
Jack HTJ-064-12D
(13449150MF) Jack(GUITAR IN)
2LJ-650NHW00
(F3449150)
Jack(BASS IN)
HTJ-064-140
(13449140HF)
Bottom Cover
(2202785100)
Bottom Base
(2235730500) FOOT BASE
Bottom Caution PSA (2235730400)
(G253751603) BF-3 PEDAL
(75D642T000)
THUMB SCREW
3x10mm(Black)
(H5029820)
