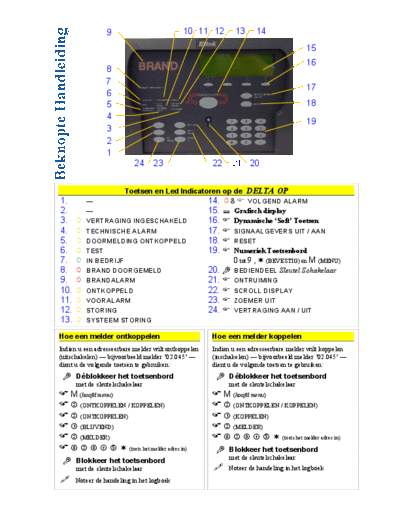

Image preview - the first page of the document
>> Download BGB003.03 Delta, Gebruikershandleiding beknopt documenatation <<Text preview - extract from the document 10 11 12 13 14
Beknopte Handleiding
9
15
16
8
7
17
6
5 18
4
19
3
2
1
24 23 22 21 20
Toetsen en Led Indicatoren op de DELTA OP
1. -- 14. & VOLGEND ALARM
2. -- 15. Grafisch display
3. VERTRAGING INGESCHAKELD 16. Dynamische `Soft' Toetsen
4. TECHNISCHE ALARM 17. SIGNAALGEVERS UIT / AAN
5. DOORMELDING ONTKOPPELD 18. RESET
6. TEST 19. Numeriek Toetsenbord
7. IN BEDRIJF 0 tot 9 , (BEVESTIG) en M (MENU)
8. BRAND DOORGEMELD 20. BEDIENDEEL Sleutel Schakelaar
9. BRANDALARM 21. ONTRUIMING
10. ONTKOPPELD 22. SCROLL DISPLAY
11. VOORALARM 23. ZOEMER UIT
12. STORING 24. VERTRAGING AAN / UIT
13. SYSTEEM STORING
Hoe een melder ontkoppelen Hoe een melder koppelen
Indien u een adresseerbare melder wilt ontkoppelen Indien u een adresseerbare melder wilt koppelen
(uitschakelen) -- bijvoorbeeld melder '02.045' -- (inschakelen) -- bijvoorbeeld melder '02.045' --
dient u de volgende toetsen te gebruiken: dient u de volgende toetsen te gebruiken:
D
