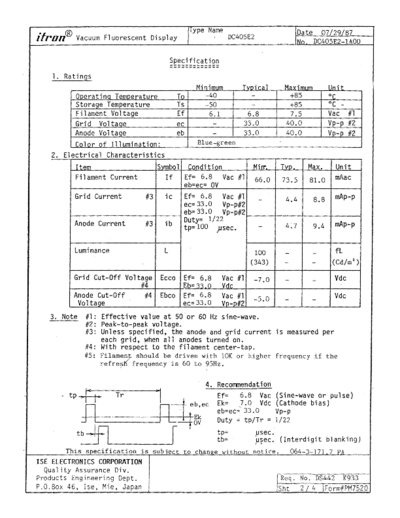

Image preview - the first page of the document
>> Download Display_1x40_Chars_5x7_Dot_Matrix_VFD_Module-DC405E2_ITRON documenatation <<
Text preview - extract from the document
G40 / CHAR 1 G20 / CHAR 20 G19 / CHAR 21 G1 / CHAR 40
PA 1 PA 2 PA 3 PA 4 PA 5 PA 1 PA 2 PA 3 PA 4 PA 5 PB 1 PB 2 PB 3 PB 4 PB 5 PB 1 PB 2 PB 3 PB 4 PB 5
PA 6 PA 7 PA 8 PA 9 PA 10 PA 6 PA 7 PA 8 PA 9 PA 10 PB 6 PB 7 PB 8 PB 9 PB 10 PB 6 PB 7 PB 8 PB 9 PB 10
PA 11 PA 12 PA 13 PA 14 PA 15 PA 11 PA 12 PA 13 PA 14 PA 15 PB 11 PB 12 PB 13 PB 14 PB 15 PB 11 PB 12 PB 13 PB 14 PB 15
PA 16 PA 17 PA 18 PA 19 PA 20 - - - PA 16 PA 17 PA 18 PA 19 PA 20 PB 16 PB 17 PB 18 PB 19 PB 20 - - - PB 16 PB 17 PB 18 PB 19 PB 20
PA 21 PA 22 PA 23 PA 24 PA 25 PA 21 PA 22 PA 23 PA 24 PA 25 PB 21 PB 22 PB 23 PB 24 PB 25 PB 21 PB 22 PB 23 PB 24 PB 25
PA 26 PA 27 PA 28 PA 29 PA 30 PA 26 PA 27 PA 28 PA 29 PA 30 PB 26 PB 27 PB 28 PB 29 PB 30 PB 26 PB 27 PB 28 PB 29 PB 30
PA 31 PA 32 PA 33 PA 34 PA 35 PA 31 PA 32 PA 33 PA 34 PA 35 PB 31 PB 32 PB 33 PB 34 PB 35 PB 31 PB 32 PB 33 PB 34 PB 35
CURSOR / PA 36 CURSOR / PA 36 CURSOR / PB 36 CURSOR / PB 36
DC405E2 Pin Assignment
DC405E2 (V2) pin out
P(B36) V2 (50) CURSOR P(A36) V2 (9) CURSOR G40 V2 (10) CHAR 21
P(B35) V2 (51) DOT 35 P(A35) V2 (8) DOT 35 G39 V2 (11) CHAR 22
P(B34) V2 (52) DOT 34 P(A34) V2 (7) DOT 34 G38 V2 (12) CHAR 23
P(B33) V2 (53) DOT 33 P(A33) V2 (6) DOT 33 G37 V2 (13) CHAR 24
P(B32) V2 (54) DOT 32 P(A32) V2 (5) DOT 32 G36 V2 (14) CHAR 25
P(B31) V2 (55) DOT 31 P(A31) V2 (4) DOT 31 G35 V2 (15) CHAR 26
P(B30) V2 (56) DOT 30 P(A30) V2 (3) DOT 30 G34 V2 (16) CHAR 27
P(B29) V2 (57) DOT 29 P(A29) V2 (2) DOT 29 G33 V2 (17) CHAR 28
P(B28) V2 (60) DOT 28 P(A28) V2 (115) DOT 28 G32 V2 (18) CHAR 29
P(B27) V2 (61) DOT 27 P(A27) V2 (114) DOT 27 G31 V2 (19) CHAR 30
P(B26) V2 (62) DOT 26 P(A26) V2 (113) DOT 26 G30 V2 (20) CHAR 31
P(B25) V2 (63) DOT 25 P(A25) V2 (112) DOT 25 G29 V2 (21) CHAR 32
P(B24) V2 (64) DOT 24 P(A24) V2 (111) DOT 24 G28 V2 (22) CHAR 33
P(B23) V2 (65) DOT 23 P(A23) V2 (110) DOT 23 G27 V2 (23) CHAR 34
P(B22) V2 (66) DOT 22 P(A22) V2 (109) DOT 22 G26 V2 (24) CHAR 35
P(B21) V2 (67) DOT 21 P(A21) V2 (108) DOT 21 G25 V2 (25) CHAR 36
P(B20) V2 (68) DOT 20 P(A20) V2 (107) DOT 20 G24 V2 (26) CHAR 37
P(B19) V2 (69) DOT 19 P(A19) V2 (106) DOT 19 G23 V2 (27) CHAR 38
P(B18) V2 (70) DOT 18 P(A18) V2 (105) DOT 18 G22 V2 (28) CHAR 39
P(B17) V2 (71) DOT 17 P(A17) V2 (104) DOT 17 G21 V2 (29) CHAR 40
P(B16) V2 (72) DOT 16 P(A16) V2 (103) DOT 16 G20 V2 (30) CHAR 01
P(B15) V2 (73) DOT 15 P(A15) V2 (102) DOT 15 G19 V2 (31) CHAR 02
P(B14) V2 (74) DOT 14 P(A14) V2 (101) DOT 14 G18 V2 (32) CHAR 03
P(B13) V2 (75) DOT 13 P(A13) V2 (100) DOT 13 G17 V2 (33) CHAR 04
P(B12) V2 (76) DOT 12 P(A12) V2 (99) DOT 12 G16 V2 (34) CHAR 05
P(B11) V2 (77) DOT 11 P(A11) V2 (98) DOT 11 G15 V2 (35) CHAR 06
P(B10) V2 (78) DOT 10 P(A10) V2 (97) DOT 10 G14 V2 (36) CHAR 07
P(B9) V2 (79) DOT 9 P(A9) V2 (96) DOT 9 G13 V2 (37) CHAR 08
P(B8) V2 (80) DOT 8 P(A8) V2 (95) DOT 8 G12 V2 (38) CHAR 09
P(B7) V2 (81) DOT 7 P(A7) V2 (94) DOT 7 G11 V2 (39) CHAR 10
P(B6) V2 (82) DOT 6 P(A6) V2 (93) DOT 6 G10 V2 (40) CHAR 11
P(B5) V2 (83) DOT 5 P(A5) V2 (92) DOT 5 G9 V2 (41) CHAR 12
P(B4) V2 (84) DOT 4 P(A4) V2 (91) DOT 4 G8 V2 (42) CHAR 13
P(B3) V2 (85) DOT 3 P(A3) V2 (90) DOT 3 G7 V2 (43) CHAR 14
P(B2) V2 (86) DOT 2 P(A2) V2 (89) DOT 2 G6 V2 (44) CHAR 15
P(B1) V2 (87) DOT 1 P(A1) V2 (88) DOT 1 G5 V2 (45) CHAR 16
G4 V2 (46) CHAR 17
G3 V2 (47) CHAR 18
F V2 (58) V(F) IC V2 (116) IC G2 V2 (48) CHAR 19
F V2 (1) V(F) IC V2 (59) IC G1 V2 (49) CHAR 20
