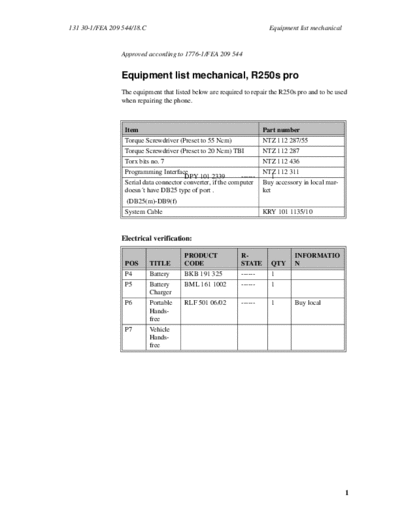

Image preview - the first page of the document



>> Download R250_equipment_list documenatation <<

Text preview - extract from the document

131 30-1/FEA 209 544/18.C                                                Equipment list mechanical


                Approved according to 1776-1/FEA 209 544


                Equipment list mechanical, R250s pro
                The equipment that listed below are required to repair the R250s pro and to be used
                when repairing the phone.



                  Item                                                 Part number
                  Torque Screwdriver (Preset to 55 Ncm)                NTZ 112 287/55
                  Torque Screwdriver (Preset to 20 Ncm) TBI            NTZ 112 287
                  Torx bits no. 7                                      NTZ 112 436
                  Programming Interface                                NTZ 112 311
                                        DPY 101 2339          ------       1
                  Serial data connector converter, if the computer     Buy accessory in local mar-
                  doesn
