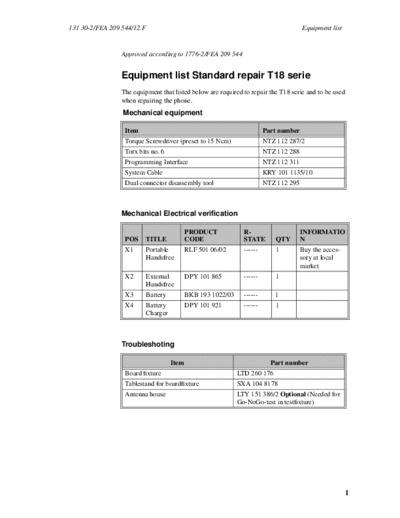

Image preview - the first page of the document
>> Download Equipment Listing documenatation <<
Text preview - extract from the document
131 30-2/FEA 209 544/12.F Equipment list
Approved according to 1776-2/FEA 209 544
Equipment list Standard repair T18 serie
The equipment that listed below are required to repair the T18 serie and to be used
when repairing the phone.
Mechanical equipment
Item Part number
Torque Screwdriver (preset to 15 Ncm) NTZ 112 287/2
Torx bits no. 6 NTZ 112 288
Programming Interface NTZ 112 311
System Cable KRY 101 1135/10
Dual connector disassembly tool NTZ 112 295
Mechanical Electrical verification
PRODUCT R- INFORMATIO
POS TITLE CODE STATE QTY N
X1 Portable RLF 501 06/02 ------ 1 Buy the acces-
Handsfree sory at local
market
X2 External DPY 101 865 ------ 1
Handsfree
X3 Battery BKB 193 1022/03 ------ 1
X4 Battery DPY 101 921 ------ 1
Charger
Troubleshoting
Item Part number
Board fixture LTD 260 176
Tablestand for boardfixture SXA 104 8178
Antenna house LTY 151 386/2 Optional (Needed for
Go-NoGo-test in testfixture)
1
Equipment list 131 30-2/FEA 209 544/12.F
Standard Electrical verification
PRODUCT R- INFORMATIO
POS TITLE CODE STATE QTY N
P1 Antenna RNT 799 08 ------ 1
Connector
P2 Coaxial RPM 113 2375 1
cable
P3 Dummy NTZ 112 310/2 ------ 1 Optional
Battery
Repair
Item Specification
Repair fixture. LTD 260 210
2
