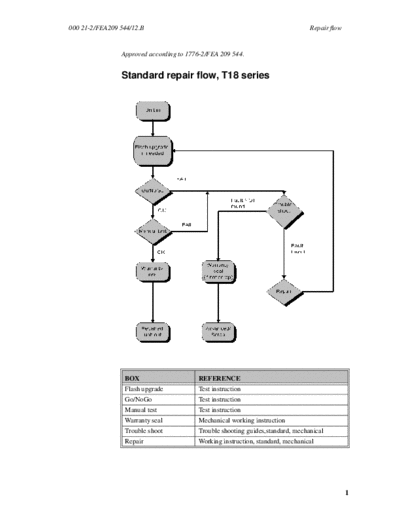

Image preview - the first page of the document
Repair Flow


>> Download Repair Flow documenatation <<

Text preview - extract from the document
000 21-2/FEA209 544/12.B                                                        Repair flow


                Approved according to 1776-2/FEA 209 544.


                Standard repair flow, T18 series




                 BOX                     REFERENCE
                 Flash upgrade           Test instruction
                 Go/NoGo                 Test instruction
                 Manual test             Test instruction
                 Warranty seal           Mechanical working instruction
                 Trouble shoot           Trouble shooting guides,standard, mechanical
                 Repair                  Working instruction, standard, mechanical




                                                                                              1
Repair flow   000 21-2/FEA209 544/12.B




2
