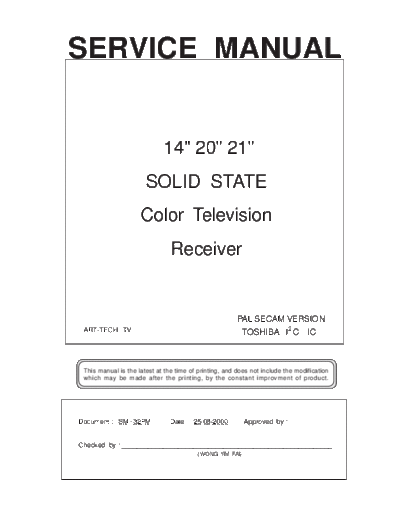

Image preview - the first page of the document
>> Download ERISSON 2105 01 documenatation <<
Text preview - extract from the document
SERVICE MANUAL
14" 20" 21"
SOLID STATE
Color Television
Receiver
PAL SECAM VERSION
ART-TECH. TV. TOSHIBA I 2 C IC
This manual is the latest at the time of printing, and does not include the modification
which may be made after the printing, by the constant improvment of product.
Document : ___________
SM - 32PM Date : ___________
25-08-2000 Approved by : ___________
Checked by : ________________________________________________________
( WONG YIM FAI)
CONTENTS
1. SPECIFICATION.....................................
2. BLOCK DIAGRAM..................................
3. ALIGMENT INSTRUCTION.......................
4. VOLTAGE TABLE...................................
5. IC601 DATA...........................................
6. WIRING DIAGRAM.................................
This manual is the latest at the time of
Printing , and does not include the modification
Which may be made ofter the Printing, by the
Constant improvement of Product.
SM-32PM P.1
MODEL : 14"
ITEMS OF MEASUREMENT STANDARD UNIT
VIDEO SENS. AT S/N 30db L - VHF < 57 dbuv
H - VHF < 57 dbuv
UHF < 60 dbuv
SOUND SENS. AT S/N 30db L - VHF < 42 dbuv
H - VHF < 42 dbuv
UHF < 48 dbuv
AGC CHARACTER > 60 db
SELECTIVITY -1.5 MHz > 35 db
+ 8 MHz > 40 db
COLOR SENS. < 45 dbuv
COLOR LOCK - IN RANGE > +300 Hz
VERTICAL LOCK - IN RANGE >6 Hz
HORIZONTAL LOCK - IN RANGE > 400 Hz
MAX BRIGHTNESS > 140 cd / m2
MAX OUTPUT POWER >1 W
OUTPUT POWER AT 10% THD > 0.7 W
BUZZ < -40 db
AFC RANGE > +1 MHz
> -0.5 MHz
MIN. VOL HUM < 20 mV
RESOLUTION HORIZONTAL > 300 LINES
VERTICAL > 400 LINES
LINEARITY DISTORTION VERTICAL < 10 %
HORIZONTAL < 10 %
RASTER DISTORTION <5 %
REMOTE CONTROL DISTANCE >5 METER
ANGLE > +15 DEGREE
POWER CONSUMPTION ( AT NORMAL CONDITION ) < 60 WATTS
POWER CONSUMPTION ( AT MAX. CONDITION ) < 70 WATTS
CONVERGENCE DISLOCATION AT AREA "A" < 0.4 %
AREA "B" < 0.8 %
( see fig.1 )
H
A B
VIDEO INPUT LEVEL : 1.0V P-P + 3dB
AUDIO INPUT LEVEL : 0.5V RMS + 3dB Fig.1
SM - 32PM P.2
MODEL : 20" - 21"
ITEMS OF MEASUREMENT STANDARD UNIT
VIDEO SENS. AT S/N 30db L - VHF < 57 dbuv
H - VHF < 57 dbuv
UHF < 60 dbuv
SOUND SENS. AT S/N 30db L - VHF < 42 dbuv
H - VHF < 42 dbuv
UHF < 48 dbuv
AGC CHARACTER > 60 db
SELECTIVITY -1.5 MHz > 35 db
+ 8 MHz > 40 db
COLOR SENS. < 45 dbuv
COLOR LOCK - IN RANGE > +300 Hz
VERTICAL LOCK - IN RANGE >6 Hz
HORIZONTAL LOCK - IN RANGE > 400 Hz
MAX BRIGHTNESS > 120 cd/m2
MAX OUTPUT POWER > 1.8 W
OUTPUT POWER AT 10% THD > 1.3 W
BUZZ < -40 db
AFC RANGE > +1 MHz
> -0.5 MHz
MIN. VOL HUM < 20 mV
RESOLUTION HORIZONTAL > 300 LINES
VERTICAL > 400 LINES
LINEARITY DISTORTION VERTICAL < 10 %
HORIZONTAL < 10 %
RASTER DISTORTION <5 %
REMOTE CONTROL DISTANCE >5 METER
ANGLE > +15 DEGREE
POWER CONSUMPTION ( AT NORMAL CONDITION ) < 70 WATTS
POWER CONSUMPTION ( AT MAX. CONDITION ) < 85 WATTS
CONVERGENCE DISLOCATION AT AREA "A" < 0.4 %
AREA "B" < 0.8 %
( see fig.2 )
H
A B
VIDEO INPUT LEVEL : 1.0V P-P + 3dB
AUDIO INPUT LEVEL : 0.5V RMS + 3dB
Fig.2
SM - 32PM P.3
SPECIFICATION
SUPPLY VOLTAGE : AC220V 50Hz > + 10% / -20% MODEL : 14"
PAL - SECAM - PAL - SECAM -
SYSTEM : PAL - I / I PAL - BG PAL - I BG / DK BG / DK PAL - BG PAL - BG SECAM - L L'
(UK) ( HYPER ) ( HYPER ) ( CATV )
CHANNEL L - VHF : 2-4 1-5 1-5 E2 - S10 E2 - S2 FB - FC CH
H - VHF : 4 - 13 5 -12 6 - 12 6 - 12 E5 - S41 E5 - S20 1-Q CH
UHF : 21 - 69 21 - 69 21 -69 21 - 69 21 - 69 E21 - E69 E21 - E69 21 - 69 CH
VIF FREQUENCY : 38.9 38.9 39.5 38.0 38.9 38.9 38.9 38.9 32.7 MHz
SIF FREQUENCY : 32.9 33.4 33.5 31.5 32.5 32.4 33.4 33.4 33.4 32.4 39.2 MHz
CHROMA IF FREQUENCY : 34.47 34.47 35.07 33.57 33.57 34.47 34.47 34.47 34.47 34.47 MHz
INTER-CARRIER FREQUENCY : 6.0 5.5 6 6.5 5.5 6.5 5.5 5.5 5.5 6.5 6.5 MHz
SCANNING HORIZONTAL : 15625 LINE
VERTICAL : 50 Hz
ANTENNA INPUT IMPEDANCE : 75 OHM
CRT : 14"
SM -32PM P.4
SPECIFICATION
SUPPLY VOLTAGE : AC220V 50Hz > + 10% / -20% MODEL : 20" - 21"
PAL - SECAM - PAL - SECAM -
SYSTEM : PAL - I / I PAL - BG PAL - I BG / DK BG / DK PAL - BG PAL - BG SECAM - L L'
(UK) ( HYPER ) ( HYPER ) ( CATV )
CHANNEL L - VHF : 2-4 1-5 1-5 E2 - S10 E2 - S2 FB - FC CH
H - VHF : 4 - 13 5 -12 6 - 12 6 - 12 E5 - S41 E5 - S20 1-Q CH
UHF : 21 - 69 21 - 69 21 -69 21 - 69 21 - 69 E21 - E69 E21 - E69 21 - 69 CH
VIF FREQUENCY : 38.9 38.9 39.5 38.0 38.9 38.9 38.9 38.9 32.7 MHz
SIF FREQUENCY : 32.9 33.4 33.5 31.5 32.5 32.4 33.4 33.4 33.4 32.4 39.2 MHz
CHROMA IF FREQUENCY : 34.47 34.47 35.07 33.57 33.57 34.47 34.47 34.47 34.47 34.47 MHz
INTER-CARRIER FREQUENCY : 6.0 5.5 6 6.5 5.5 6.5 6.5 5.5 5.5 6.5 6.5 MHz
SCANNING HORIZONTAL : 15625 LINE
VERTICAL : 50 Hz
ANTENNA INPUT IMPEDANCE : 75 OHM
CRT : 20" - 21"
SM - 32PM P.5
ALIGNMENT INSTRUCTION
I.PLEASE READ BEFORE ATTEMPTING SERVICE
1.Do not connect any antenna plug directly to the tuner socket and do not
connect any equipments directly to the TV chassis,otherwise it may be
burnt out the TV or equipment,except an isolation transformer is used for
main power source or the TV sets.
2.Never disconnect any leads while receiver is in operation.
3.Disconnect all power before attempting any repairs.
4.Do not short any portion of the circuit while power is on.
5.For safety reasons,all parts replaced should be identical(for parts and
part numbers see parts list).
6.Before alignment the set must be pre-heated for 30 minutes or more and
erase magnetism thoroughly from CRT front chassis frame by erase coil.
II.TEST EQUIPMENT
1.Colour Bar/Dot/Cross Hatch 5.High Voltage Meter
2.Oscilloscope 6.Ampere Meter (0.5 Class,DC 3mA Max.)
3.Vacuum Tube Voltmeter 7.Demagnetizing Coil
4.Volt Ohumeter 8.Closed Caption Encoder
9.High Pot Tester.
I. B+ ADJUSTMENT
1.Connect a digital voltmeter to B+ and Ground.
2.Set Brightness Contrest to minimum.
3.Adjust Screen Volume on FBT until the picture can just been seen.
4.Adjust VR901 to obtain a reading of 112 + 0.5V(FOR samsung CRT).
II. AFC ALIGNMENT
1.Disconnect the soldering pad `F'.
2.Input the signal from Pattern Generator ( IF 38.9MHz ) colour bar to R101 and GND.
3.Adjust the T101 until the colour bar show on the screen.
4.Select `SELF VCO'in D-MODE.
5.Press the AFC button on the handset.
6.About few seconds screen will be show AFT OK.
*REMARK: No this factory on Normal R.C.
III.AGC ALIGNMENT
1.Receive CH69 (UHF) and input filed strangth. TUNER INput Signal 62 + 3dB,
2.Connect a digital Voltmeter between the TUNER AGC Terminal and Ground.
3.Select RAGC item,Adjust the value to 3F,and then adjust the AGC value obtain the voltage drop down 0.4V.
Remark: 1 The drop down voltage should be more than and tends to 0.4V.
2 No observable noise can be seen.
IV.VERTICAL LINEARTY ADJUSTMENT
1.PAL (50Hz)Adjustment
(1).Receive Crosshatch Pattern (50Hz) .
(2).Select VLIS item adjust value to normal regular picture.
2.NTSC (60Hz) Adjustment.
(1).Receive Cross hatch Patter (60Hz).
(2).Select VILN item adjust value to normal regular picture.
3.Repeat 1.2. receive Cross hatch 50Hz and 60Hz is same picture.
V. VERTICAL HEIGHT ADJUSTMENT
1.PAL (50Hz) Adjust .
(1).Receive Mono scope Patter (50Hz).
(2).Select HITS item adjust value to normal regular picture.
2.NTSC (60Hz).
(1).Receive Mono scope Patter (60Hz).
(2).Select HIT item adjust value to normal regular picture
3.Repeat 1.2. receive Mono Scope Patter 50Hz and 60Hz is same picture.
SM-32PM P.6
VI.VERTICAL S-CORRECTION ADJUSTMENT
1. Receive Cross hatch Pattern
2. Select VSC item adjust value to normal,regular picture.
VERTICAL CENTER ADJUSTMENT
1. PAL (50Hz) Adjustment
(1). Receive Monscope Pattern (50Hz).
(2). Select VP50 item adjust value to obtain the picture at center .
2. NTSC (60Hz) Adjustment
(1). Receive Monscope Pattern (60Hz).
(2). Select VP60 item adjust value to obtain the picture at center.
3. Repeat 1.2. receive Mono Sope Pattern 50Hz and 60Hz is same picture center.
VII. HORIZONTAL PHASE ADJUSTMENT
1.PAL(50Hz)Adjustment.
(1).Receive Mono Scope Pattern (50Hz).
(2).Select HPS item adjust value to normal regular Picture.
2.NTSC(60Hz)
(1).Receive Mono Scope Pattern (60Hz).
(2).Select HPOS item adjust value to normal regular Picture.
3.Repeat 1. 2. receive Mono Scope Pattern (50Hz) and (60Hz) is Same Picture.
CENTRE (mm) SCANNING
SCANNING
DISTRICT LIMIT (mm) SIZE
POSITION SIZE (%)
LIMIT (%)
THAILAND -1 0 ~ -2 90 88 ~ 92
FRANCE +3 0 ~ +5 90 88 ~ 94
GERMANY +3 0 ~ +5 90 90 ~ 95
*GROUP A -2 -5 ~ -1 90 88 ~ 94
*GROUP B 0 -2 ~ +2 90 88 ~ 94
*GROUP C +3 0 ~ +5 90 88 ~ 94
mm -5 -4 -3 -2 -1 0 1 2 3 4 5 mm
LEFT CRT MUST RIGHT
FACE TO EAST
CENTER OF
THE SCREEN
REMARK :
1. SUITABLE FOR 14" OR ABOVE TV.
2. Adjust the centre position must take the upper side of monoscope
pattern for standard.
3. Group A : AUSTRALIA, NEW ZEALAND, TAHITI.
4. Group B : HONG KONG, CHINA, AMERICA, CANADA, MALAYSIA,
MEXICO.
5. Group C : ENGLAND, ITALY, GERMANY, RUSSIA, SWITZERLAND,
JUGOSLAVIA, SPANISH.
If the above countries are not include, please consult to
Engineering Dept.
SM-32PM P.7
VIII. WHITE BALANCE ALIGNMENT STEP
(Degauss the picture by degaussing coil if necessary)
1. Disconnect the any input signal,set the blue black OFF.
2. Enter to D HODE.
3. Adjust the RCUT,GCUT,BCUT value to 80,GDRV,BDRV to 45,BRTS to CO.
4. Adjust the BRIGHT,CONT to min.
5. Adjust the screen VR (on the FBT) until the show cannot just be screen.
6. Connect the VOLT meter `+' to CRT BOARD G2,(-) to GND and get the reading value.
7. Adjust the screen VR lead the reading value reduce 25 + 5v
8. Adjust the BRTS set to F6,and set BRIGHT,CONT to mid.
9. Receive a Black and White Pattern.
10. Select Remote handset direct key (2) and (3) button adjust GCUT and BCUT to minimum
value,Press(1) button adjust RCUT to middle value.
11. Press Picture mode, select Brightness and Contrast adjust value to minimum.
12. Press handset direct key (2) button to obtain a yellow line.
13. Press handset direct key (3) button to obtain a white line.
14. Press handset direct key (-/--) button again.
15. Press CH button select GDRV and BDRV item adjust value to make the
16. picture uniformlywhite (9300 K + 3JND).
IX. SUB-BRIGHTNESS ALIGNMENT
1. Receive a Colour Bar Pattern.
2. Press PICTURE mode select BRIGHTNESS, CONTRAST adjust value to minimum.
3. Select BRTS in D-MODE.
4. Adjust value the brightness bar can just be seen.
X. FOCUS ALIGHMENT
1. Set the Brightness and Contrast to middle position.
2. Receive a Monoscope Pattern.
3. Adjust focus control to obtain sharpest picture.
XI. HIGH POT TESTING
1) Short the L-pole and N-pole of AC line cord.
2) Switch on the power switch of the TV Set.
3) Connect The High Pot Tester (-) to L and N pole, (+) to the
METAL PART of CABINET.
CONDITION TEST STANDARN
TEST SYANDARD
SAFETY STD. FOR PRODUCTION
VDE,SAA 3.0KV 10mA / 1MIN >3.5KV <10mA / >10 SEC.
UL 1.0KV 5mA / 1MIN >1.25KV <5mA / >1 SEC.
REMARK:
(1). If no other speciality,the strength of input signal should
be 70dB + 10dB.
(2). The HIGH POT TESTER can have < + 5% tolerance.
SM-32PM P.8
Model: 21
Chassis: I C technology.
Picture Tube: SAMSUNG, Type:A51KQK99X01, S/N:2090344252
Service Mode Data
Item Parameter C Value
o SAMSUNG
d 21
e
1 RCUT I 83
2 GCUT I D8
3 BCUT I 85
4 GDRV I 49
5 BDRV I 49
6 CNTX A 3A
7 BRTC A 47
8 COLC A 30
9 TNTC A 3A
10 COLP A 33
11 COLS A 2E
12 SCNT A 0E
13 CNTC A 2B
14 CNTN A 06
15 BRTX A 23
16 BRTN A 21
17 COLX A 25
18 COLN A 00
19 TNTX A 30
20 TNTN A 30
21 ST3 A 09
22 SV3 A 09
23 ST4 A 09
24 SV4 A 10
25 SHPX A 12
26 SHPN A 05
27 TXCX I 2A
28 RGCN I 1E
29 VMO N 2C
30 VM1 N 00
31 HPOS I 06
A.B. Research and Development Department 1/2
SM-32PM P.9
32 VP50 I 03
33 HIT I 16
34 HPS I 04
35 VP60 I 00
36 HITS I 02
37 VLIN I 0C
38 VSC I 08
39 VLIS I FF
40 DPC N 00
41 DPCS N 00
42 KEY N 00
43 KEYS N 00
44 WID N 00
45 WIDS N 00
46 VCP N 00
47 CNR N 00
48 HCP N 00
49 SBY A 08
50 SRY A 08
51 RAGC I 21
52 AFT N 27
53 HAFC N 00
54 V25 A 3E
55 V50 A 4A
56 BRTS I 04
57 VM2 N 30
58 MOD0 A 00
59 MOD1 A 12
60 MOD2 N 00
61 SELF N 00
62 SELF VCO N 80
63 SELF AGC N 69
64 SELF BRTC N 75
65 SELF CNTC N 23
66 SELF TNTC N 00
67 SELF COL N 20
68 LOGO A 01
69 LANG A 00
70 IF FREQ A 03
71 OSD I 02
72 OPT N 04
SAMSUNG,Type:A51KQK99X01
Adjustment codes:
I Data adjustable individually for each unit.
A Adjustable parameter.Changes need Engineering Department approval.
N Non adjustable parameter.
.B. Research and Development Department 2/2
SM-32PM P.10
Model: 21
Chassis: I C technology.
Picture Tube: SEG-HITACHI, Type:A51JSY63X13, S/N:SH9E210453
ervice Mode Data
Item Parameter C Value
o HITACHI
d 21
e
1 RCUT I 83
2 GCUT I 84
3 BCUT I 86
4 GDRV I 4A
5 BDRV I 43
6 CNTX A 3A
7 BRTC A 43
8 COLC A 30
9 TNTC A 3A
10 COLP A 30
11 COLS A 2F
12 SCNT A 0E
13 CNTC A 27
14 CNTN A 06
15 BRTX A 2A
16 BRTN A 21
17 COLX A 25
18 COLN A 00
19 TNTX A 30
20 TNTN A 30
21 ST3 A 09
22 SV3 A 09
23 ST4 A 09
24 SV4 A 10
25 SHPX A 12
26 SHPN A 05
27 TXCX I 27
28 RGCN I 27
29 VMO N 2C
30 VM1 N 00
31 HPOS I 09
A.B. Research and Development Department 1/2
SM-32PM P.11
32 VP50 I 03
33 HIT I 11
34 HPS I 04
35 VP60 I 01
36 HITS I 02
37 VLIN I 0C
38 VSC I 08
39 VLIS I FF
40 DPC N 00
41 DPCS N 00
42 KEY N 00
43 KEYS N 00
44 WID N 00
45 WIDS N 00
46 VCP N 00
47 CNR N 00
48 HCP N 00
49 SBY A 08
50 SRY A 08
51 RAGC I 1F
52 AFT N 40
53 HAFC N 00
54 V25 A 3E
55 V50 A 4A
56 BRTS I 08
57 VM2 N 30
58 MOD0 A 00
59 MOD1 A 12
60 MOD2 N 00
61 SELF N 00
62 SELF VCO N 80
63 SELF AGC N 69
64 SELF BRTC N 75
65 SELF CNTC N 23
66 SELF TNTC N 00
67 SELF COL N 20
68 LOGO A 01
69 LANG A 00
70 IF FREQ A 03
71 OSD I 00
72 OPT N 04
SEG-HITACHI,Type:A51JSY63X13
Adjustment codes:
I Data adjustable individually for each unit.
A Adjustable parameter.Changes need Engineering Department approval.
N Non adjustable parameter.
A.B. Research and Development Department 2/2
SM-32PM P.12
Model: 20
Chassis: I C technology.
Picture Tube: LG, Type:A48QAD220X06, S/N:C9806005382 S
Service Mode Data
Item Parameter C Value
o LG
d 20
e
1 RCUT I 0
2 GCUT I 65
3 BCUT I 64
4 GDRV I 55
5 BDRV I 4A
6 CNTX A 3F
7 BRTC A 45
8 COLC A 30
9 TNTC A 3A
10 COLP A 33
11 COLS A 2E
12 SCNT A 0E
13 CNTC A 25
14 CNTN A 06
15 BRTX A 20
16 BRTN A 21
17 COLX A 25
18 COLN A 00
19 TNTX A 30
20 TNTN A 30
21 ST3 A 09
22 SV3 A 09
23 ST4 A 09
24 SV4 A 10
25 SHPX A 16
26 SHPN A 05
27 TXCX I 20
28 RGCN I 20
29 VMO N 2C
30 VM1 N 00
31 HPOS I 0A
A.B. Research and Development Department 1/2
SM-32PM P.13
32 VP50 I 03
33 HIT I 05
34 HPS I 04
35 VP60 I 00
36 HITS I 01
37 VLIN I 0D
38 VSC I 07
39 VLIS I FF
40 DPC N 00
41 DPCS N 00
42 KEY N 00
43 KEYS N 00
44 WID N 00
45 WIDS N 00
46 VCP N 00
47 CNR N 00
48 HCP N 00
49 SBY A 08
50 SRY A 08
51 RAGC I 1A
52 AFT N 19
53 HAFC N 00
54 V25 A 3E
55 V50 A 4A
56 BRTS I 0A
57 VM2 N 30
58 MOD0 A 00
59 MOD1 A 12
60 MOD2 N 00
61 SELF N 00
62 SELF VCO N 80
63 SELF AGC N 69
64 SELF BRTC N 75
65 SELF CNTC N 23
66 SELF TNTC N 00
67 SELF COL N 20
68 LOGO A 01
69 LANG A 00
70 IF FREQ A 03
71 OSD I 06
72 OPT N 04
LG,4828
Adjustment codes:
I Data adjustable individually for each unit.
A Adjustable parameter.Changes need Engineering Department approval.
N Non adjustable parameter.
A.B. Research and Development Department 2/2
SM-32PM P.14
Model: 14
Chassis: I 2 technology.
C
Picture Tube: SAMSUNG, Type:A34KQV42X02, S/N:7881202225
Service Mode Data
Item Parameter C Value
o SAMSUNG
d 14
e
1 RCUT I 80
2 GCUT I 67
3 BCUT I 6D
4 GDRV I 4A
5 BDRV I 44
6 CNTX A 3A
7 BRTC A 4C
8 COLC A 40
9 TNTC A 3A
10 COLP A 31
11 COLS A 2E
12 SCNT A 0E
13 CNTC A 24
14 CNTN A 0C
15 BRTX A 22
16 BRTN A 32
17 COLX A 25
18 COLN A 00
19 TNTX A 30
20 TNTN A 30
21 ST3 A 07
22 SV3 A 07
23 ST4 A 07
24 SV4 A 10
25 SHPX A 10
26 SHPN A 05
27 TXCX I 25
28 RGCN I 20
29 VMO N 2C
30 VM1 N 00
31 HPOS I 11
A.B. Research and Development Department 1/2
SM-32PM P.15
342.Samsung
32 VP50 I 05
33 HIT I 14
34 HPS I 08
35 VP60 I 01
36 HITS I 00
37 VLIN I 0A
38 VSC I 08
39 VLIS I FF
40 DPC N 00
41 DPCS N 00
42 KEY N 00
43 KEYS N 00
44 WID N 00
45 WIDS N 00
46 VCP N 00
47 CNR N 00
48 HCP N 00
49 SBY A 08
50 SRY A 08
51 RAGC I 25
52 AFT N 40
53 HAFC N 00
54 V25 A 3E
55 V50 A 4A
56 BRTS I FD
57 VM2 N 30
58 MOD0 A 00
59 MOD1 A 02
60 MOD2 N 00
61 SELF N 00
62 SELF VCO N 80
63 SELF AGC N 69
64 SELF BRTC N 75
65 SELF CNTC N 23
66 SELF TNTC N 00
67 SELF COL N 20
68 LOGO A 01
69 LANG A 00
70 IF FREQ A 03
71 OSD I 00
72 OPT N 04
Adjustment codes:
I Data adjustable individually for each unit.
A Adjustable parameter.Changes need Engineering Department approval.
N Non adjustable parameter.
A.B. Research and Development Department 2/2
SM-32PM P.16
Model: 14
Chassis: I2C technology.
Picture Tube: IRICO, Type:37SX110Y22-DC05, S/N:97020510
Service Mode Data
Item Parameter C Value
o IRICO
d 14
e
1 RCUT I 82
2 GCUT I CA
3 BCUT I 85
4 GDRV I 52
5 BDRV I 4A
6 CNTX A 3F
7 BRTC A 3F
8 COLC A 30
9 TNTC A 3A
10 COLP A 30
11 COLS A 2E
12 SCNT A 0E
13 CNTC A 2A
14 CNTN A 0C
15 BRTX A 22
16 BRTN A 36
17 COLX A 25
18 COLN A 00
19 TNTX A 30
20 TNTN A 30
21 ST3 A 07
22 SV3 A 07
23 ST4 A 07
24 SV4 A 10
25 SHPX A 10
26 SHPN A 05
27 TXCX I 25
28 RGCN I 20
29 VMO N 2C
30 VM1 N 00
31 HPOS I 0B
A.B. Research and Development Department 1/2
SM-32PM P.17
32 VP50 I 02
33 HIT I 12
34 HPS I 04
35 VP60 I 02
36 HITS I 2E
37 VLIN I 0B
38 VSC I 08
39 VLIS I FF
40 DPC N 00
41 DPCS N 00
42 KEY N 00
43 KEYS N 00
44 WID N 00
45 WIDS N 00
46 VCP N 00
47 CNR N 00
48 HCP N 00
49 SBY A 08
50 SRY A 08
51 RAGC I 24
52 AFT N 1E
53 HAFC N 00
54 V25 A 3E
55 V50 A 4A
56 BRTS I 14
57 VM2 N 30
58 MOD0 A 00
59 MOD1 A 02
60 MOD2 N 00
61 SELF N 00
62 SELF VCO N 80
63 SELF AGC N 69
64 SELF BRTC N 75
65 SELF CNTC N 23
66 SELF TNTC N 00
67 SELF COL N 20
68 LOGO A 01
69 LANG A 00
70 IF FREQ A 03
71 OSD I 12
72 OPT N 04
Picture Tube: IRICO,Type:37SX110Y22-DC05, S/N:97020510
Adjustment codes:
I Data adjustable individually for each unit.
A Adjustable parameter.Changes need Engineering Department approval.
N Non adjustable parameter.
A.B. Research and Development Department 2/2
SM-32PM P.18
Model: 14
Chassis: I2C technology.
Picture Tube: Orion, Type:A34JLL90X32
Service Mode Data
Item Parameter C Value
o Orion
d 14
e
1 RCUT I 7E
2 GCUT I 94
3 BCUT I 6D
4 GDRV I 40
5 BDRV I 41
6 CNTX A 3F
7 BRTC A 4C
8 COLC A 33
9 TNTC A 3A
10 COLP A 29
11 COLS A 2E
12 SCNT A 0E
13 CNTC A 20
14 CNTN A 0C
15 BRTX A 22
16 BRTN A 32
17 COLX A 25
18 COLN A 00
19 TNTX A 30
20 TNTN A 30
21 ST3 A 07
22 SV3 A 07
23 ST4 A 07
24 SV4 A 10
25 SHPX A 10
26 SHPN A 05
27 TXCX I 25
28 RGCN I 20
29 VMO N 2C
30 VM1 N 00
31 HPOS I 0C
A.B. Research and Development Department 1/2
SM-32PM P.19
32 VP50 I 00
33 HIT I 12
34 HPS I 03
35 VP60 I 01
36 HITS I 03
37 VLIN I 0C
38 VSC I 09
39 VLIS I 02
40 DPC N 00
41 DPCS N 00
42 KEY N 00
43 KEYS N 00
44 WID N 00
45 WIDS N 00
46 VCP N 00
47 CNR N 00
48 HCP N 00
49 SBY A 08
50 SRY A 08
51 RAGC I 25
52 AFT N 13
53 HAFC N 00
54 V25 A 3E
55 V50 A 4A
56 BRTS I 15
57 VM2 N 30
58 MOD0 A 00
59 MOD1 A 02
60 MOD2 N 00
61 SELF N 00
62 SELF VCO N 80
63 SELF AGC N 69
64 SELF BRTC N 75
65 SELF CNTC N 23
66 SELF TNTC N 30
67 SELF COL N 20
68 LOGO A 01
69 LANG A 00
70 IF FREQ A 03
71 OSD A 00
72 OPT N 04
Orion,Type:A34JLL90X32
Adjustment codes:
I Data adjustable individually for each unit.
A Adjustable parameter.Changes need Engineering Department approval.
N Non adjustable parameter.
A.B. Research and Development Department 2/2
SM-32PM P.20
TB1238N Adjustment in D-Mode
Show the D-Mode Items information
Mode For PAL For NTSC Remark
D RCUT RCUT R CUTOFF
GCUT GCUT G CUTOFF
BCUT BCTU B CUTOFF
GDRV GDRV G DRIVE
BDRV BDRV B DRIVE
CNTX CNTX SUB CONTRAST MAX
BRTC BRTC SUB BRIGHT CENTER
COLC COLC SUB COLOR CENTER for NTSC
TNTC TNTC SUB TINT CENTER
COLP SUB COLOR CENTER for PAL (DIFFERENCE)
COLS SUB COLOR CENTER for SECAM
SCNT SCNT Y-SUB CONTRAST
CNTC CNTC SUB CONTRAST CENTER
CNTN CNTN SUB CONTRAST MINIMUM
BRTX BRTX SUB BRIGHT MAX (DIFFERENCE)
BRTN BRTN SUB BRIGHT MIN (DIFFERENCE)
COLX COLX SUB COLOR MAX (DIFFERENCE)
COLN COLN SUB COLOR MIN
TNTX TNTX SUB TINT MAX (DIFFERENCE)
TNTN TNTN SUB TINT MIN (DIFFERENCE)
SM -32PM P.21
Mode For PAL For NTSC Remark
D ST3 ST3 SUB SHARP CENTER NTSC3.58 in TV
SV3 SV3 SUB SHARP CENTER NTSC3.58 in VIDEO
ST4 ST4 SUB SHARP CENTER other color system in TV
SV4 SV4 SUB SHARP CENTER other color system in VIDEO
SHPX SUB SHARPNESS MAX points from Center value
SHPN SUB SHARPNESS MIN points from Center value
TXCX RGB Contrast data at MAX data of user contrast
RGCN RGB Contrast data at MIN data of user contrast
VM0 VCD mode data 0 (Setting Data of TB1238)
Bit 7: F-ID, Bit 6: CW-SW,Bit 5,4: BAL Start Point
Bit 3,2: ABL-Gain Bit 1: WPS Bit 0: ID-SW
VM1 VCD mode data 1 (Setting Data of TB1238)
Bit 7: No use , Bit 6: N-COM, Bit 5-1: V-Mute Timing
Bit 0: BLK V-Mute Timing = 200ms + 8ms * Data
HPOS 50Hz Horizontal Phase
VP50 50Hz Vertical Phase
HIT 50Hz Vertical Amplitude
HPS HPS Shift data of 50Hz / 60 Hz Horizontal Phase
VP60 VP60 60Hz Vertical Phase
HITS HITS Shift data of 50Hz / 60Hz Vertical Amplitude
VLIN V-LINEARITY
VSC V-S CORRECTION
VLIS VLIS Shift data of 50Hz / 60Hz V-LINEARITY
DPC
DPCS
KEY
EKYS
WID
WIDS
VCP
CNR
HCP
SBY SECAM B-Y
SRY SECAM R-Y
RAGC RAGC RF AGC adjustment
AFT PIF VCO adjustment
HAFC 1/2 AFC data adjustment
V25 Volume output data at 25%
V50 Volume output data at 50%
BRTS SUB Brightness (DIFFERENCE)
VM2
MOD0
MOD1
MOD2
SELF
SELF VCO
SELF AGC
SELF BRTC
SELF CNTC
SELF TNTC
SELF COL
LOGO
LANG
IF FREQ
OSD
OPT
SM -32PM P.22
MOD0
DATA
SYS CPU: 133-328738-14 CPU: 133-358738-14
133-358738-14
FOR SAA 5254 FOR STV 5348
PAL SECAM TEXT CCD NTSC 46 47
PAL SECAM NTSC TEXT 42 43 TABLE 1.
PAL SECAM NTSC CCD 44 44
PAL NTSC TEXT CCD 06 07
PAL NTSC TEXT 02 03
PAL NTSC CCD 04 04
PAL NTSC 00 00
PAL SECAM NTSC 40 40
MOD1
PROGRAM VIDEO DATA
CPU:133-328738-14
133-358738-14 CPU: 133-358738-14
FOR AV MODE For AV STERO For SCART
50 TV VIDEO 00 20 04 TABLE 2.
100 TV VIDEO 02 22 06
50 TV VIDEO 1 VIDEO 2 10 30 14
100 TV VIDEO 1 VIDEO 2 12 32 16
MOD2
SOUND SYSTEM DATA
CPU:133-328738-14 CPU : 133-358738-14
133-358738-14 (PIN14 POSITIVE) (PIN 14 NEGATIVE)
BG or DK or I 00 20 TABLE 3.
DK . I 0A 2A
BG . DK 0C 2C
BG . I 06 26
LOGO
NO LOGO 00
TEAC 01 TABLE 4.
ROWA 02
LANG
ENGLISH 00
ENGLISH ; FRANCAIS ;ITALIALNO 01 TABLE 5.
ENGLISH ; RUSSIAN 02
IF FREQ
MHz DATA
39.5 02 TABLE 6.
38.9 03
38.0 04
For 14
VOLTAGE TABLE FOR TRANSISTOR (ONLY FOR REFERENCE)
SYMBOL B (V) C (V) E (V) SYMBOL B (V) C (V) E (V)
Q101 1.3 9.0 0.6 Q507 0 9.0 0.1
Q102 3.6 8.9 2.9 Q508 0.5 0 1.2
Q103 4.3 8.9 3.7 Q601 5.0 5.1 4.5
Q104 2.8 0 3.5 Q603 0.6 0 0
Q105 6.3 8.9 5.5 Q604 0 5.1 0
Q106 1.4 0 2.1 Q605 0 4.9 0
Q201 17.5 1.1 17.2 Q606 -0.8 4 0
Q202 0.6 0 0 Q801 3.0 2.3 2.3
Q203 16 15.3 15.3 Q803 0.67 0 0
Q301 0.1 22.8 0 Q901 8.8 11.9 8.2
Q401 0.3 14.9 0 Q902 5.1 -0.05 1.6
Q402 -0.2 106.0 0 Q903 0 1.1 0
Q403 5.5 7.7 4.9 Q904 -2.5 296.7 0
Q501 9.0 107 8.5 Q905 0.6 0 0
Q502 9.0 108.7 8.5 Q906 109.4 110 110
Q503 9.0 105.3 8.5 Q907 110 110 109.3
Q504 2.6 8.5 2.1 Q108 3.1 5.1 2.4
Q505 2.6 8.5 2.1 Q109 5.1 8.9 4.5
Q506 2.7 8.5 2.3 Q110 5.9 9.0 5.2
NOTE: VOLTAGE ARE TAKEN UNDER TUNED CONDITION WITH
CONTRAST : Maximum Position
BRIGHINESS : Maximum Position
COLOR : Maximum Position
SIGNAL INPUT : 70dB + 10dB
CHANNEL SETTING : The Last Channel of UHF High
SIGNAL PATTERN : Colour Bar
FOR 20" ~ 21"
VOLTAGE TABLE FOR TRANSISTOR (ONLY FOR REFERENCE)
SYMBOL B (V) C (V) E (V) SYMBOL B (V) C (V) E (V)
Q101 1.3 9.0 0.6 Q603 0.6 0 0
Q102 3.6 8.9 2.9 Q604 0 5.1 0
Q103 4.3 8.9 3.7 Q605 0 4.9 0
Q104 2.8 0 3.5 Q606 -0.8 4 0
Q105 6.3 8.9 5.5 Q901 8.8 11.9 8.2
Q106 1.4 0 2.1 Q902 5.1 -0.05 1.6
Q108 3.1 5.1 2.4 Q903 0 1.1 0
Q109 5.1 8.9 4.5 Q904 -2.5 296.7 0
Q110 5.9 9.0 5.2 Q905 0.6 0 0
Q201 17.5 1.1 17.2 Q906 109.4 110 110
Q202 0.6 0 0 Q907 110 110 109.3
Q203 16 15.3 15.3 Q001 0 8.9 GND
Q301 0.1 22.8 0
Q401 0.3 14.9 0
Q402 -0.2 106.1 0
Q403 5.5 7.7 4.9
Q501 9.0 107 8.5
Q502 9.0 108.7 8.5
Q503 9.0 105.7 8.5
Q504 2.6 8.5 2.1
Q505 2.6 8.5 2.1
Q506 2.7 8.5 2.3
Q507 0 9.0 0.1
Q508 0.5 0 1.2
Q601 5.0 5.1 4.5
Q801 3.0 2.3 2.3
Q803 0.67 0 0
NOTE: VOLTAGE ARE TAKEN UNDER TUNED CONDITION WITH
CONTRAST : Maximum Position
BRIGHINESS : Maximum Position
COLOR : Maximum Position
SIGNAL INPUT : 70dB + 10dB
CHANNEL SETTING : The Last Channel of UHF High
SIGNAL PATTERN : Colour Bar
SM-32PM P.25
VOLTAGE TABLE FOR IC ( ONLY FOR REFERENCES )
( FOR 1P.TEXT )
SYMBOL IC101 IC601 IC801 IC802 IC302
PIN NO.
1 5 GND 5 0 2.6
2 3.6 4.7 2 0 NC
3 8.9 5 3.6 0 2.5
4 2.5 0 0 0 2.5
5 0 0 GND 5 2.5
6 0.4 0 5 4 2.5
7 0 5 2.2 0 4.6
8 4.5 5 2.4 1.6 NC
9 4.2 5 2.5 0 4.9
10 2.3 0 5 0 NC
11 2.5 5 GND 1.1 0
12 0 5 NC GND 2.9
13 0 2.6 5 5 3.3
14 2.6 NC GND NC 2.5
15 2.4 5 0.2 3.2 2.6
16 2.6 5 0.2 2.9 NC
17 9 NC 0.2 NC 0.7
18 2.9 NC 2.6 0 4.9
19 2.7 NC 1.6 0 2.7
20 2.8 NC GND NC
21 5.3 GND NC 1.4
22 4 0 2.5
23 4.8 0 NC
24 1 0 2.9
25 1.8 0 3.2
26 5 4 NC
27 5 4.9 NC
28 9 5 NC
29 5.2 5 NC
30 1.6 GND NC
31 4.8 2.2 NC
32 1.9 2.2 NC
33 GND 0.2 NC
34 1.2 0.2 NC
35 2.9 5 NC
36 5.2 4.8 NC
37 2.5 5 NC
38 2.5 3.2 NC
39 2.9 0.3 NC
40 7 0 NC
41 1.6 0
42 GND 5
43 3.2
44 2.3
45 2.9
46 4.9
47 3.7
48 4
49 GND
50 8
51 8
52 8.8
53 4.6
54 5.8
55 8.8
56 5.5
NOTE : VOLTAGE ARE TAKEN UNDER TUNED CONDITION WITH
SHARP : Maximum Position
CONTRAST : Maximum Position
BRIGHINESS : Maximum Position
COLOR : Maximum Position
SIGNAL INPUT : 70dB +10dB
CHANNEL SETTING : The Last Channel of UHF High
SIGNAL PATTERN : Colour Bar SM - 32PM P.26
VOLTAGE TABLE FOR IC ( ONLY FOR REFERENCES )
( FOR 1P.TEXT )
SYMBOL IC401 IC402 IC201 IC901 IC301
PIN NO.
1 GND 12.2 2 11.2 8.8
2 12.7 GND 2.1 GND 0
3 24.4 9 GND 5 0
4 0.9 5.2 0
5 0.9 GND GND
6 24.3 7.5 10.4
7 1.2 15.3 0
8 0
9 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
NOTE : VOLTAGE ARE TAKEN UNDER TUNED CONDITION WITH
CONTRAST : Maximum Position
BRIGHINESS : Maximum Position
COLOR : Maximum Position
SIGNAL INPUT : 70dB +10dB
CHANNEL SETTING : The Last Channel of UHF High
SIGNAL PATTERN : Colour Bar
SM -32PM P.27
VOLTAGE TABLE FOR IC ( ONLY FOR REFERENCES )
( FOR 1P.TEXT )
SYMBOL IC001 IC602
PIN NO.
1 GND GND
2 GND GND
3 2.4 GND
4 4.4 GND
5 0 5
6 GND 5
7 GND 0
8 GND 5
9 0
10 0
11 0
12 4.4
13 1.7
14 4.4
15 NC
16 9
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
NOTE : VOLTAGE ARE TAKEN UNDER TUNED CONDITION WITH
CONTRAST : Maximum Position
BRIGHINESS : Maximum Position
COLOR : Maximum Position
SIGNAL INPUT : 70dB +10dB
CHANNEL SETTING : The Last Channel of UHF High
SIGNAL PATTERN : Colour Bar
SM - 32PM P.28
SM-32PM P.29
BLOCK DIAGRAM
FOR `14' MODEL
SM-32PM P.30
BLOCK DIAGRAM
FOR `14' MODEL W TELETEXT & CCD
SM-32PM P.31
BLOCK DIAGRAM FOR 20",21" MODEL
SM-32PM P.32
BLOCK DIAGRAM
FOR 20",21" MODEL W TELETEXT & CCD
R
L
SM-32PM P.33
◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
