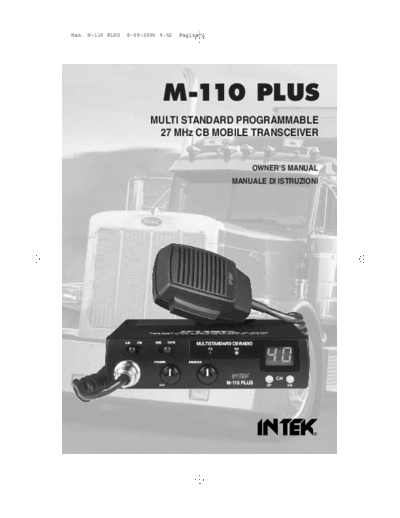

Image preview - the first page of the document
>> Download Intek M110 documenatation <<
Text preview - extract from the document
Man. M-110 PLUS 8-09-2005 9:52 Pagina 1
M-110 PLUS
MULTI STANDARD PROGRAMMABLE
27 MHz CB MOBILE TRANSCEIVER
OWNER'S MANUAL
MANUALE DI ISTRUZIONI
Man. M-110 PLUS 8-09-2005 9:52 Pagina 2
Declaration of Conformity
EC Certificate of Conformity
(to EC Directive 99/5-89/336-93/68-73/23)
DECLARATION OF CONFORMITY
With the present declaration, we certify that the following products :
INTEK M-110 PLUS
comply with all the technical regulations applicable to the above mentioned products
in accordance with the EC Directives 73/23/EEC, 89/336/EEC and 99/5/EC.
Type of product : CB Transceiver
Details of applied standards : EN 300 433, EN 300 135-2
EN 301 489-1, EN 301 489-13
EN 60065
Manufacturer : INTEK S.R.L.
Via G. Marconi, 16
20090 Segrate, Italy
Tel. 39-02-26950451 / Fax. 39-02-26952185
E-mail : [email protected]
Notified Body : EMCCert Dr. Rasek
Boelwiese 5, 91320 Ebermannstadt
Germany
Identification Number : 0678
Contact Reference : Armando Zanni
Tel. 39-02-26950451 / Fax. 39-02-26952185
E-mail : [email protected]
Segrate, 06/09/2005 dr. Vittorio Zanetti
(General Manager)
NOTICE !
It is recommended to carefully read this owner's manual before using the product. This will also help the user to
prevent using the radio in violation of the regulations valid in the country where the product is used, as well as to
avoid any possible interferences with other services.
0678 CH
Man. M-110 PLUS 8-09-2005 9:52 Pagina 3
Index - Introduction - Content of the packaging
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Content of the packaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
English
Controls and operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 4
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Frequency bands table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Frequency band selection / programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Table of restrictions on the use of CB transceivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 / 17
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
PCB - Main Board & CPU Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18-19
Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20-21
Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22-23
Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24-25
NOTICE !
Before using this transceiver, please check that the radio has been programmed on the frequency bands,
specifications and operating modes allowed by the regulations valid in the country where the product is used. If
not, please proceed to modify the frequency band programming, as it is described in this owner's manual. This
transceiver is factory pre-programmed on the CE European frequency band (CEPT 40CH FM 4W).
Congratulations!
Congratulations for selecting and purchasing an INTEK quality product. This transceiver includes a number of advanced
functions and systems, therefore it is definitely necessary to carefully read this owner's manual before using the radio.
With a correct use of the product in accordance with the operating method described in this manual, the product will offer
a trouble free use for many years. INTEK is constantly engaged to develop and provide quality products meeting the
customers requirements, however any suggestion or comments on this product that might help us to improve quality are
warmly welcome. INTEK M-110 PLUS is a CB transceiver using advanced hardware and software design, it includes
a special multi-standard programmable circuit, which allows to program the specifications of the radio (frequency
bands, operating modes, transmitter power) in compliance with the regulations valid in the various European
countries. Therefore this product can be used in any country of the European Community. The radio is delivered
factory pre-programmed on the CE European frequency band (CEPT 40CH FM 4W).
Content of the packaging
Please check that all the following items are contained in the packaging :
main unit (transceiver) car mounting bracket accessories (hardware, knobs, etc.)
DC power cord with fuse holder and fuse microphone bracket
dynamic microphone owner's manual
car mounting bracket
-1-
Man. M-110 PLUS 8-09-2005 9:52 Pagina 4
Controls and operation
Front Panel
1 2 3 4 5
English
AM FM CH9 CH19
MULTISTANDARD CB RADIO
TX RX
VOLUME SQUELCH
CH
OFF
M-110 PLUS UP DN
10 9 8 7 6
1. AM / FM Selector
This switch allows to select the operating mode AM or FM, in both TX and RX, if the desired operating mode is enabled
by the programmed frequency band.
UK / CE SELECTOR
If the UK (United Kingdom) frequency band has been programmed, set the switch to the AM position to select the CE
channels (frequencies) or set the switch to the FM position to select the UK channels (frequencies).
2. CH9 / CH19 Selector
This 3-position switch allows to select the emergency channels CH9 and CH19 in the programmed frequency band. If
the switch is set to its center position, radio will operate on the normal selected channel.
3. TX Indicator
This red color LED indicator is lighted when radio is in the transmit mode.
4. RX Indicator
This green color LED indicator is lighted when radio is in the receive mode.
5. LED Display
The large size two-digit LED display indicates the operating channel and the programmed frequency band code.
6. DN (Down) Key
This key allows to select the operating channel downward. By keeping this key pressed, the quick channel selection
mode will be enabled.
7. UP (Up) Key
This key allows to select the operating channel upward. By keeping this key pressed, the quick channel selection mode
will be enabled.
-2-
Man. M-110 PLUS 8-09-2005 9:52 Pagina 5
Controls and operation
8. SQUELCH Control
The SQUELCH control allows to silent the radio, cancelling the background noise, when no signals are received on the
operating channel. Turn the SQUELCH knob clockwise until the background noise stops. Turn the SQUELCH knob
counterclockwise (SQUELCH opening) to listen to the weakest signals.
English
9. OFF / VOLUME Control
Use this knob to switch radio ON and OFF, as well as to adjust the receiver volume to the desired level. To adjust the
receiver volume in case no signals are received on the operating channel, open the SQUELCH and then adjust the
receiver volume using the background noise as a reference.
10. Microphone Connector
Connect the microphone to this connector and turn the connector ring to lock it.
Rear Panel
11 12
EXT ANTENNA
DC
13.2V
13
11. EXT (External Speaker) Jack
This jack is for connecting an external speaker (optional).
12. ANTENNA Connector
Antenna connector. Refer to the section INSTALLATION OF THE ANTENNA.
13. 13.2VDC POWER CORD
13.2VDC power cord input.
-3-
Man. M-110 PLUS 8-09-2005 9:52 Pagina 6
Controls and operation
Microphone
14
English
15
14. PTT (Push-to-Talk) Key
Transmitter key. Press the PTT key to transmit and release it to return to the receive mode.
15. MICROPHONE Plug
4-pin microphone connector with locking ring. Connect it to the microphone connector on the front panel of the radio.
IMPORTANT !
Do never attempt to open the cabinet of the transceiver. No user serviceable parts inside. Internal modifications or
tampering may cause damage to the product, modify its technical specifications and will void warranty rights. If
service or repair are required, please go to an authorised service centre or specialized technician.
-4-
Man. M-110 PLUS 8-09-2005 9:52 Pagina 7
Installation
Installation
Before installing the main unit in the vehicle, check and select the most convenient location, in order that the radio will be
easy to reach and comfortable to operate, without disturbing or interfering with the vehicle drive. Use the supplied
English
bracket and hardware to install the radio. The bracket screws must be well tightened in order not to become loosen with
the vehicle vibrations. The car mounting bracket can be installed over or below the radio and the radio may be inclined
as desired according to the specific type of installation (under dashboard or track cabin roof installation).
Installation of the Main Unit
Before connecting the radio to the vehicle electric system, make sure that radio is switched off, with the OFF/VOLUME
(9) knob completely turned counter clockwise at OFF position. The DC power cable (13) of the radio is complete with a
fuse holder with fuse located on the red positive (+) wire. Connect the DC power cable to the vehicle electric system,
with special attention to respect correct polarity, even if the radio is protected against polarity inversion. Connect the red
wire to the positive (+) pole and the black wire to the negative (-) pole of the vehicle electric system. Make sure that the
wires and terminals are firmly and stably connected, in order to prevent cables from disconnecting or causing short
circuits.
Installation of the Antenna
A specific mobile antenna adjusted for 27 MHz frequency range must be used. The antenna installation must be done by
a specialised technician or service centre. Please pay special attention to carefully install the antenna on the vehicle with
perfect connection to ground. Before connecting the antenna to the radio, it is necessary to check the correct operation
of the antenna with low standing wave ratio (S.W.R.), using adequate instruments. If not, the transmitter circuit of the
radio could be damaged. The antenna must be usually installed on the highest part of the vehicle, free from obstacles
and as far away as possible from any source of electric or electromagnetic noise. The RF antenna coaxial cable must
not be damaged or pressed on its way between antenna and the radio. The correct operation of the antenna and the low
standing wave ratio (S.W.R.) must be checked periodically. Connect the RF antenna coaxial cable to the antenna
connector (12), located on the rear side of the radio.
Checking Operation of the Radio
Once radio has been connected to the vehicle electric system and to the antenna, the correct operation of the system
may be checked. Please proceed as follows :
1) Check that the power cable is correctly connected.
2) Check that the RF antenna coaxial cable is correctly connected.
3) Connect the microphone to the connector (10), located on the front side of the radio.
4) Rotate the SQUELCH (8) knob counter clockwise.
5) Turn radio on using the OFF/VOLUME (9) knob and adjust volume to the desired level.
6) Select the desired channel, using the channel selector keys (6, 7).
7) Rotate the SQUELCH (8) knob clockwise, to cut the background noise.
8) Press the PTT (14) key to transmit and release it to receive.
The transceiver will work correctly.
-5-
Man. M-110 PLUS 8-09-2005 9:52 Pagina 8
Frequency bands table
Frequency Bands Table
The transceiver INTEK M-110 PLUS includes an advanced multi-standard programmable circuit, which allows to
program different frequency bands, specifications and operating modes, in conformity with the regulations in the country
English
where the product is used. 8 programmable frequency bands are available, as per the below table :
COUNTRY CODE COUNTRY SPECIFICATIONS (CH, operating modes, TX power)
01 ITALIA / SPAGNA 40CH AM / FM 4W
02 ITALIA 36CH AM / FM 4W
03 GERMANIA 80CH FM 4W - 12CH AM 1W
04 GERMANIA 40CH FM 4W - 12CH AM 1W
05 EUROPA / FRANCIA 40CH FM 4W - 40CH AM 1W
06 CEPT 40CH FM 4W
40CH FM 4W UK FREQUENCIES -
07 INGHILTERRA
40CH FM 4W CEPT FREQUENCIES
08 POLONIA 40CH AM / FM 4W POLISH FREQUENCIES
Attention ! This radio has been factory pre-programmed on the CE frequency band (CEPT 40CH FM 4W), since this
standard is currently accepted in all the European countries. Please refer to the information table at page 7 (Restrictions
on the use of CB transceivers).
-6-
Man. M-110 PLUS 8-09-2005 9:52 Pagina 9
Frequency band selection / programming
Frequency Band Selection / Programming
This two-way CB radio must be programmed and exclusively used on a frequency band allowed in the country where
the product is used. When radio is switched ON, the current programmed frequency band code will be displayed
English
(blinking) for about 3 seconds. To program a different frequency band, proceed as follows :
1) Turn OFF the radio.
2) Press and keep pressed the UP key (7), then turn ON the radio using the OFF/VOLUME knob (9).
3) The current frequency band code will blink on the display (5).
4) Now select the new desired frequency band code by pressing the UP (7) or DN (6) key; during the frequency
band selection process, the frequency band code will blink at a faster speed.
5) Press the DN (6) key for about 2 seconds to confirm and store the new selected frequency band code.
Reset
To automatically reset the radio to the original factory settings (CE frequency brand), follows the below process :
1) Turn OFF the radio.
2) Press and keep pressed the DN key (6), then turn ON the radio using the OFF/VOLUME knob (9).
3) The CE frequency band code (code 06) will blink on the display (5) for about 3 seconds.
Table of Restrictions on the Use of CB Transceivers (page 17)
The following information are to be considered only just as an indication. They are believed to be correct at the time of
printing this operating manual. It is however the user's responsibility to check that, in the country where radio is used, the
regulations for the use of CB transceivers have not been modified. User is therefore suggested to contact the local
dealer or local authority, in order to check the current regulations for the use of CB transceivers, before operating this
product. The manufacturer does not take any responsibility if the product is used in violation of the regulations of the
country where the product is used.
Addendum (Updated information on national restrictions)
BELGIUM, UK, SPAIN, SWITZERLAND
In order to use this transceiver in Belgium, UK, Spain and Switzerland, residence must have an individual licence. Users
coming from abroad may freely use the radio in FM mode, while in order to use it in AM mode they must hold a licence
released in their own country.
ITALY
Foreigners arriving in Italy must get an Italian authorization.
AUSTRIA
Austria does not allow using multi standard programmable CB radios. It is recommended
to carefully follow this directives and not to use the product in the Austrian territory.
GERMANY
Along some border areas in Germany, the radio can not be used as a base station from
channel 41 to channel 80. Refer to local authority (notification office) for details.
-7-
Man. M-110 PLUS 8-09-2005 9:52 Pagina 10
Specifications
Specifications
General
Channels 40 FM (refer to the frequency bands table at page 6)
English
Frequency range 26.315 ◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
