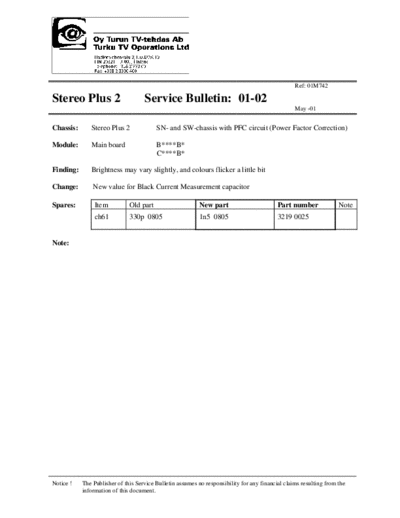

Image preview - the first page of the document



>> Download SP2-01-02 documenatation <<

Text preview - extract from the document

                                                                                                  Ref: 01M742

Stereo Plus 2                       Service Bulletin: 01-02
                                                                                                  May -01


Chassis:      Stereo Plus 2              SN- and SW-chassis with PFC circuit (Power Factor Correction)

Module:       Main board                 B****B*
                                         C****B*

Finding:      Brightness may vary slightly, and colours flicker a little bit

Change:        New value for Black Current Measurement capacitor

Spares:         Item          Old part                     New part                        Part number              Note
                ch61          330p 0805                    1n5 0805                        3219 0025


Note:




Notice !   The Publisher of this Service Bulletin assumes no responsibility for any financial claims resulting from the
           information of this document.
