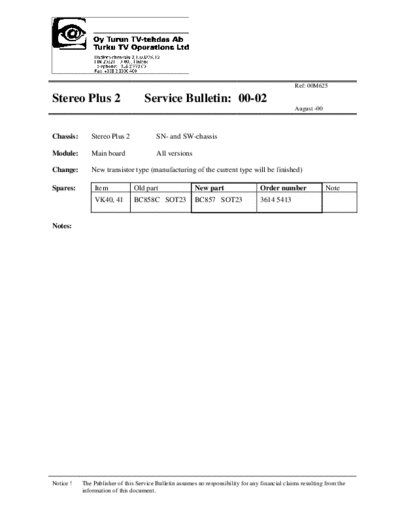

Image preview - the first page of the document



>> Download Sp2-00-02 documenatation <<

Text preview - extract from the document

                                                                                                  Ref: 00M625

Stereo Plus 2                       Service Bulletin: 00-02
                                                                                                  August -00



Chassis:      Stereo Plus 2              SN- and SW-chassis

Module:       Main board                 All versions

Change:       New transistor type (manufacturing of the current type will be finished)

Spares:         Item            Old part                 New part                   Order number               Note
                VK40, 41        BC858C SOT23             BC857 SOT23                3614 5413


Notes:




Notice !   The Publisher of this Service Bulletin assumes no responsibility for any financial claims resulting from the
           information of this document.
