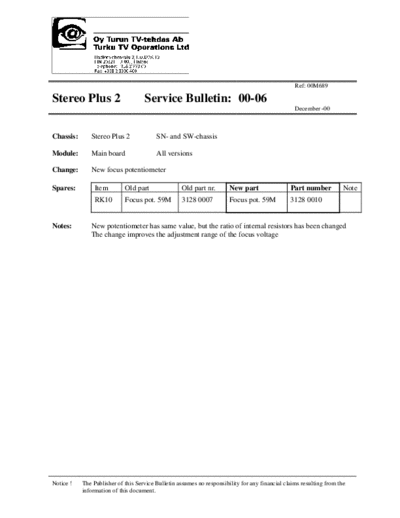

Image preview - the first page of the document



>> Download Sp2-00-06 New Focus Pot documenatation <<

Text preview - extract from the document

                                                                                                  Ref: 00M689

Stereo Plus 2                       Service Bulletin: 00-06
                                                                                                  December -00



Chassis:      Stereo Plus 2              SN- and SW-chassis

Module:       Main board                 All versions

Change:       New focus potentiometer

Spares:         Item        Old part               Old part nr.        New part                 Part number           Note
                RK10        Focus pot. 59M         3128 0007           Focus pot. 59M           3128 0010


Notes:        New potentiometer has same value, but the ratio of internal resistors has been changed
              The change improves the adjustment range of the focus voltage




Notice !   The Publisher of this Service Bulletin assumes no responsibility for any financial claims resulting from the
           information of this document.
