Image preview - the first page of the document

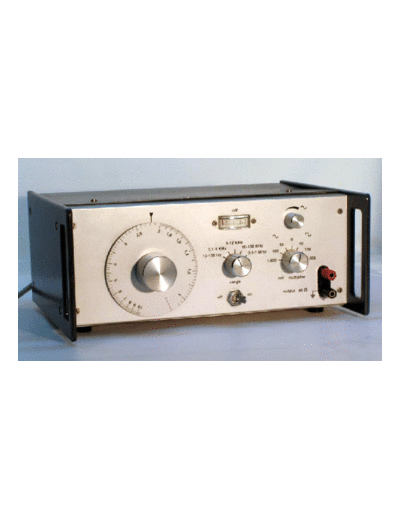

MBLE BEM014


>> Download MBLE BEM014 documenatation <<

Text preview - extract from the document
Halfgeleiders
-------------------------------------------------------


Tr1,Tr8,Tr9          BC148 (BC238)
Tr2                  BC158 (BC556)
Tr3                  BFW61 (BF245A BFW244)
Tr4,Tr5              BC178 (BC558)
Tr6,Tr7              BSY39 (2N2369)
Tr10                 2N2219
Tr11                 2N2904(2N4036)

D1                   BZY88/8V2 (zener 400mW/8,2V)
D2,D3,D4,D5          AA119
D6                   BY164
D7                   BAX13 (1N4148)




BFW61
  N-Channel JFET

V(BR)DSS (V)=25
V(BR)GSS (V)=25
I(D) Abs. Drain Current (A)=20m
Absolute Max. Power Diss. (W)=250m
I(GSS) Max. (A)=1.0n
@V(GS) (V) (Test Condition)=20
V(GS)off Max. (V)=8.0
@V(DS) (V) (Test Condition)=15
@I(D) (A) (Test Condition)=1.0n
I(DSS) Min. (A)=2m
I(DSS) Max. (A)=20m
@V(DS) (V) (Test Condition)=15
g(fs) Min. (S) Trans. conduct.=2.0m
g(fs) Max, (S) Trans. conduct,=6.5m
@V(DS) (V) (Test Condition)=15
C(iss) Max. (F)=6.0p
@V(DS) (V) (Test Condition)=15
Package=TO-72
Military=N
