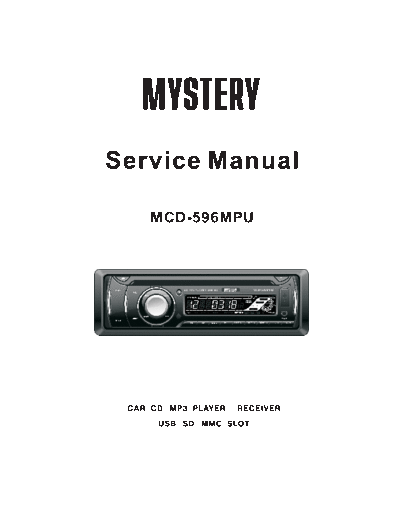

Image preview - the first page of the document
>> Download service_manual_mcd-596mpu6188u documenatation <<
Text preview - extract from the document
MCD-596MPU
17
18
23
26
29
General
Power Supply Requirements: DC 14 . 4V , Negative Ground
Load Impedance : 4 ohms
Maximum Output Power: 7W x 4(CH)
Chassis Dimensions: 178 x 130x 50mm (W x D x H)
Current Drain: 5A
Tone Controls
Bass (at 100Hz): +10dB / -10dB
Treble (at 10K): +10dB / -10dB
CD Player
Signal to Noise Ratio: More than 60dB
Channel Separation: More than 60dB
Frequency Response: 20Hz - 20KHz
FM Radio
Frequency Coverage (MHz): 87 . 5 - 108MHz
IF : 10.7MHz
Sensitivity (S/N-30dB): 12dBu
Stereo Separation: >30dB
AM Radio
Frequency Coverage (KHz): 522 - 1620 KHz
IF : 450KHz
Sensitivity (S/N-20dB): 42dBu
Remarks :
Specifications subject to change without notice
09
10
11
12
13
14
15
16
17
06-108218-2001-0C-N 8218MB MP3(4*7W)USB+ISO
04-042334-0100 4.2336MHZ 30PPM S
04-032768-0100 32.768KHZ 3X8MM
07-113060-0101 300mA 60V T60-030
10-090435-0201 2SD435 TO-251 40V10W()
11-TG7533-0H00 TG7533 TO-92
11-037377-0600 IC TDA7377
12-115401-0000 IN5401
16-613103-0001 =1.0mm 1mH
16-214221-6400 220uH/3A,14X6.6X13mm
29-603001-0708 50MM
21-306250-1011 RCA 250MM ()
33-040340-0001 ANT
14P 21A 5 A(ISO
34-010114-0708
)
12-115823-0000 IN5823(IN5822)
34-010114-0700 14PIN
06-108218-2001-1C-N 8218MB MP3(4*7W)USB+CD+ISO
06-108218-2002 PY-8218U-MB FR-4 190.*80.2*1.2MM
07-080151-9900 150 5% 0603
07-080330-0940 33R 5% 0603
07-080100-9900 10 5% 0603
07-080101-9900 100 5% 0603
07-080102-9900 1K 5% 0603
07-080103-9900 10K 5% 0603
07-080104-9900 100K 5% 0603
07-080105-9900 1M 5% 0603
07-080152-9900 1K5 5% 0603
07-080153-9900 15K5% 0603
07-080123-9900 12K 5% 0603
07-080180-9900 18R 5% 0603
07-080183-9900 18K 5% 0603
07-080823-9900 82K5% 0603
07-080221-9900 220 5% 0603
07-080222-9900 2K2 5% 0603
07-080223-9900 22K 5% 0603
07-080224-9900 220K 5% 0603
07-080270-9900 27R 5% 0603
07-080332-9900 3K3 5% 0603
18
07-080392-9900 3K9 0603 5%
07-080393-9900 39K5% 0603
07-080472-9900 4K7 5% 0603
07-080473-9900 47K 5% 0603
07-080474-9900 470K5% 0603
07-080512-9900 5K1 5% 0603
07-080562-9900 5K6 5% 0603
07-080564-9900 560K5% 0603
07-080681-9900 680 5% 0603
07-080682-9900 6K8 5% 0603
07-080390-9900 39 5% 0603
07-080106-9900 10M 5% 0603
07-080475-9900 4.7M 5% 0603
